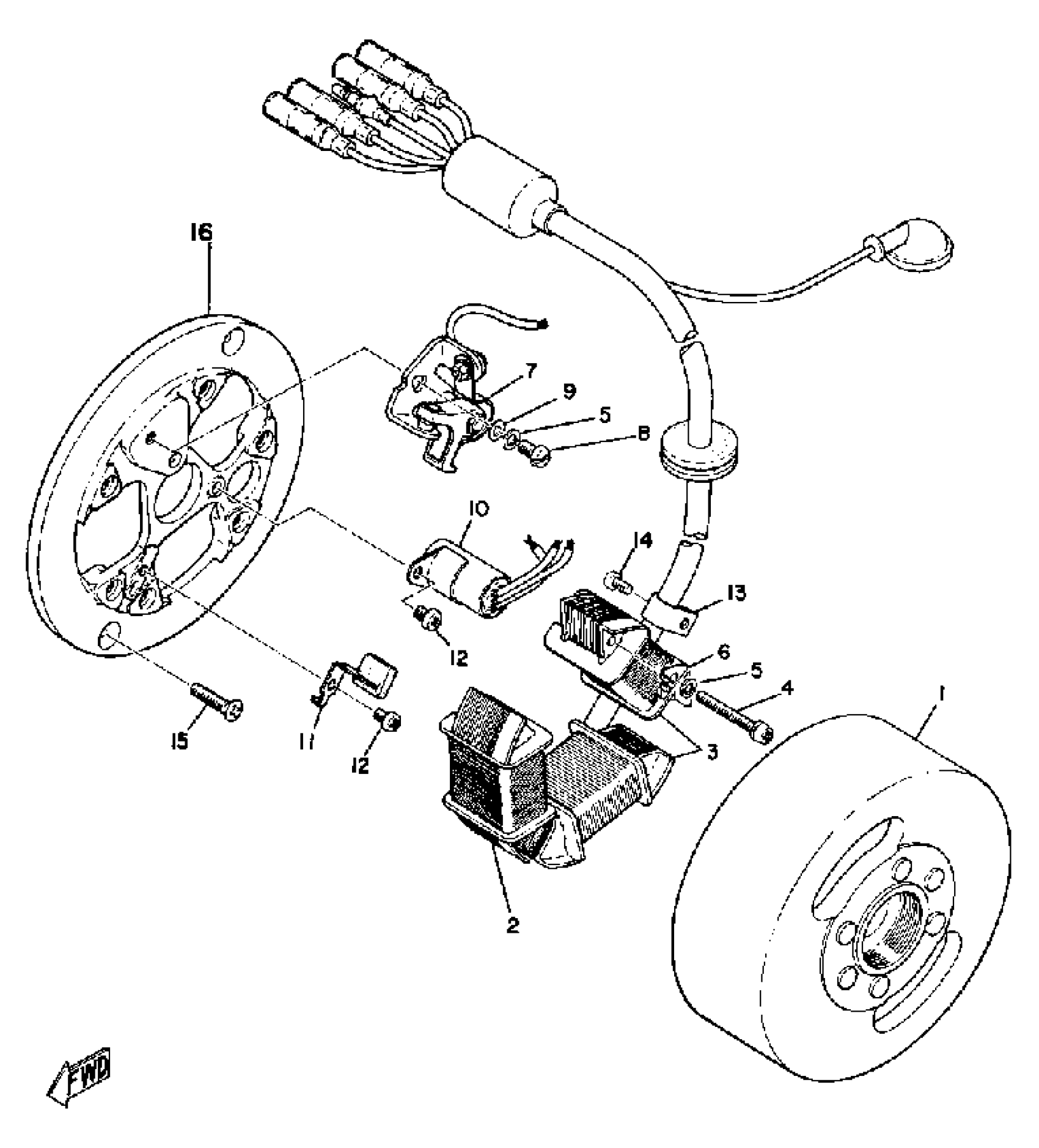

Yamaha LT3MX (LT3MX) LT20 1973 FLYWHEEL MAGNETO Diagram

#

Description
Price

0

FLYWHEEL MAGNETO ASSY

277-81300-11-00

Unavailable

1

ROTOR ASSY

315-81350-10-00

Unavailable

2

. COIL, SOURCE

277-81312-10-00

Unavailable

3

COIL, LIGHTING 1

277-81313-11-00

Unavailable

4

SCREW, PAN HEAD

98517-04025-00

$2.75

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.58

6

PLATE, TIMING

277-81332-10-00

Unavailable

7

. CONTACT BREAKER ASSY

207-81321-90-00

Unavailable

8

SCREW, PAN HEAD

110-81346-21-00

$4.01

9

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.05

10

. CONDENSER 2

277-81326-90-00

Unavailable

11

. LUBRICATOR

207-81331-10-00

Unavailable

12

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

13

. CLAMP

109-81328-11-00

Unavailable

14

SCREW, PAN HEAD(3XP)

98517-04006-00

$3.86

15

SCREW, FLAT

98707-05016-00

Unavailable

16

BASE, MAGNETO

277-81309-10-00

Unavailable
