- LT3MX (LT3MX) LT20 1973
CRANKSHAFT PISTON

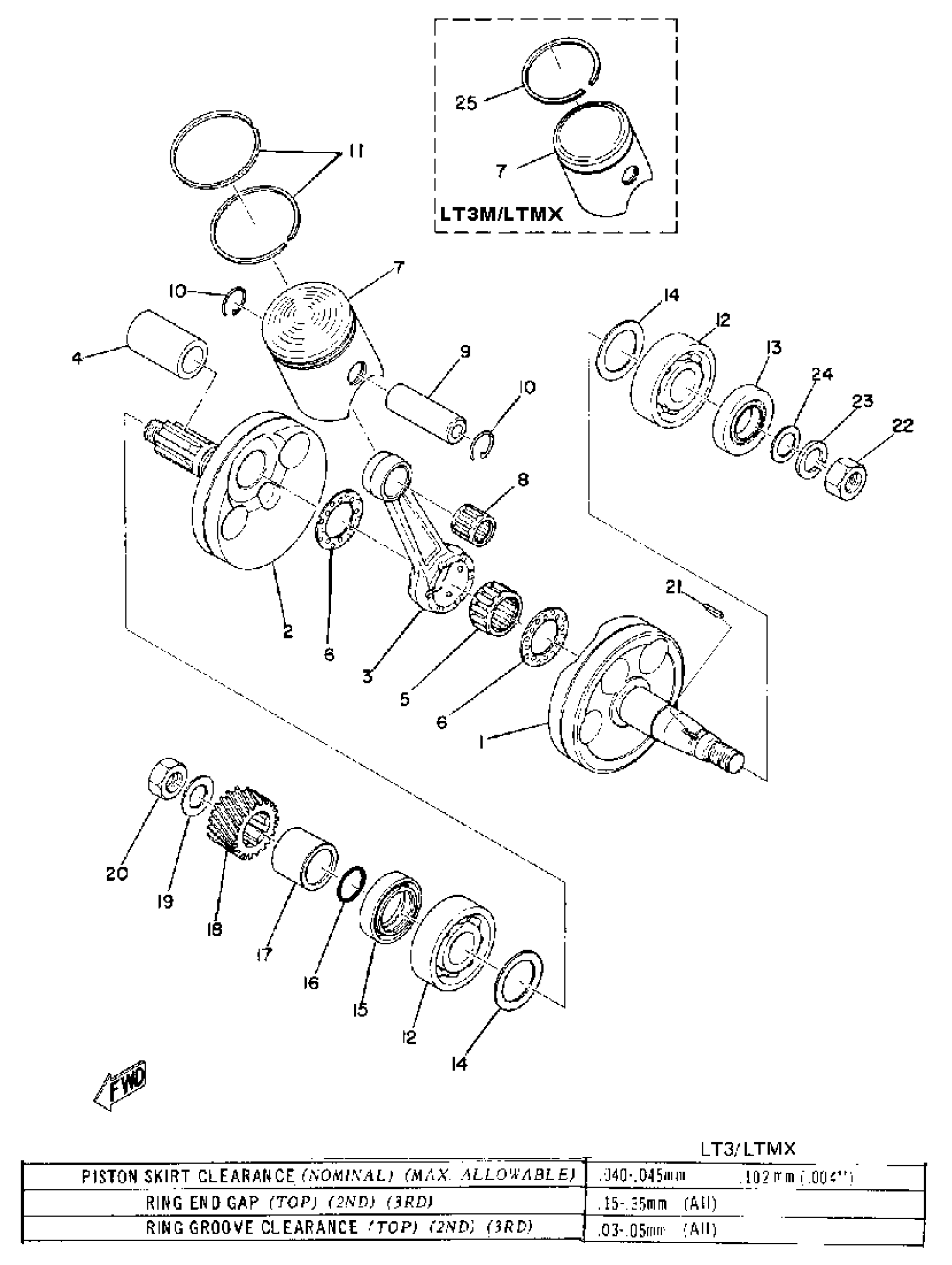

Yamaha LT3MX (LT3MX) LT20 1973 CRANKSHAFT PISTON Diagram
#
1
CRANK 1
304-11412-00-00
Unavailable
2
CRANK 2
304-11422-00-00
Unavailable
5
BRG,CYL-CAL ROLLER 16G TM
93310-422E7-00
Unavailable
6
WASHER (29L)
90209-22248-00
Unavailable
7
PISTON STD
305-11631-01-96
Unavailable
7
PISTON 1 OS 0.25
305-11635-01-00
Unavailable
7
PISTON 2 OS 0.50
305-11636-01-00
Unavailable
7
PISTON 3 OS 0.75
305-11637-01-00
Unavailable
7
PISTON 4 OS 1.00
305-11638-01-00
Unavailable
7
PISTON STD
335-11631-00-96
Unavailable
7
PISTON 1 OS 0.25
335-11635-00-00
Unavailable
7
PISTON 2 OS 0.50
335-11636-00-00
Unavailable
9
PIN, PISTON
131-11633-00-00
Unavailable
10
CIRCLIP 131116340000
93450-15023-00
Unavailable
11
PISTON RINGSET STD
305-11601-00-00
Unavailable
11
PISTON RING SET (3RD O/S)
335-11601-30-00
Unavailable
11
PISTON RING SET (1STO/S)
335-11601-10-00
Unavailable
11
PISTON RING SET (2NDO/S)
335-11601-20-00
Unavailable
11
PISTON RINGSET 4TH
335-11601-40-00
Unavailable
12
BRG,R-B 6304C3 52MM 144G KY
93306-30421-00
Unavailable
13
OIL SEAL(4BA)
93102-20447-00
Unavailable
14
SHIM, CRANK 1
136-11561-00-03
Unavailable
14
SHIM, CRANK 1
136-11561-00-04
Unavailable
14
SHIM, CRANK 1
136-11561-00-05
Unavailable
14
SHIM, CRANK 1
136-11561-00-06
Unavailable
14
SHIM, CRANK 1
136-11561-00-07
Unavailable
15
OIL SEAL (28X40X8-132)
93103-28011-00
Unavailable
16
O-RING(3KX)
93210-180A6-00
Unavailable
17
COLLAR, DISTANCE 2761613600
90387-20175-00
Unavailable
18
PRIMARY DRIVE GEAR
276-16111-00-00
Unavailable
19
WASHER, CONICAL SPRING 12,2 X
90208-12800-00
Unavailable
20
NUT, HEXAGON 1371637700
90170-12060-00
Unavailable
21
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
22
NUT(3DM)
95304-12600-00
Unavailable
23
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
24
WASHER (492)
90201-12535-00
Unavailable
25
PISTON RING SET (STD)
335-11601-00-00
Unavailable
25
RING, PISTON 1ST
335-11611-10-00
Unavailable
25
RING, PISTON 2ND
335-11611-20-00
Unavailable
