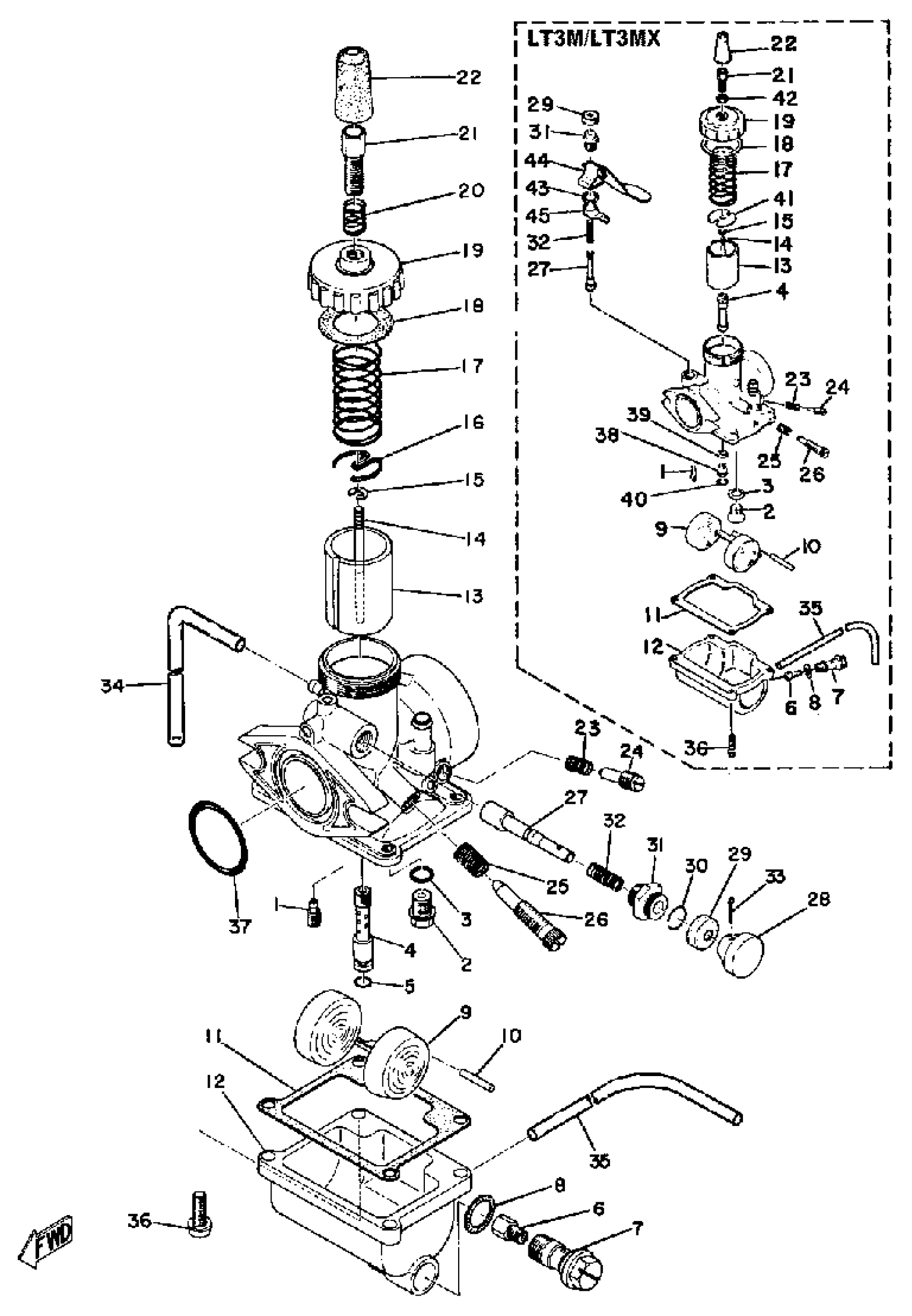

Yamaha LT3MX (LT3MX) LT20 1973 CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY 1

305-14101-00-00

Unavailable

0

CARBURETOR ASSY 1

335-14101-00-00

Unavailable

1

. JET, PILOT #40

193-14142-40-A1

Unavailable

1

JET, PILOT (# 25)

260-14142-25-00

$9.99

2

NEEDLE VALVE SET

23L-14107-25-00

$42.99

2

VALVE SEAT ASSY

353-14190-15-00

Unavailable

3

WASHER, VALVE SEAT

127-14195-00-00

$7.99

3

WASHER, VALVE SEAT

214-14195-00-00

$7.99

4

NOZZLE, MAIN

261-14141-32-00

Unavailable

4

NOZZLE, MAIN

304-14141-26-00

Unavailable

5

O-RING

214-14147-00-00

$7.99

6

JET, MAIN #110

137-14143-22-A0

Unavailable

6

. JET, MAIN #120

137-14143-24-00

Unavailable

6

JET, MAIN #130

137-14143-26-A0

$7.99

6

JET, MAIN #160

137-14143-32-00

$9.99

6

JET, MAIN #170

137-14143-34-00

Unavailable

6

JET, MAIN #180

137-14143-36-A1

Unavailable

7

BOLT,BANJO

479-14166-00-00

Unavailable

8

GASKET

304-14198-00-00

Unavailable

9

. FLOAT

156-14185-00-00

Unavailable

9

FLOAT

4NR-14185-00-00

Unavailable

10

PIN, FLOAT

127-14186-00-00

Unavailable

11

. GASKET, FLOAT CHAMBER

156-14184-00-00

Unavailable

11

GASKET,FLOAT CHAMBER

304-14184-00-00

Unavailable

12

BODY, FLOAT CHAMBER 1

304-14181-00-33

Unavailable

12

BODY, FLOAT CHAMBER 1

304-14181-70-33

Unavailable

13

VALVE, THROTTLE 1

204-14112-10-00

Unavailable

13

. VALVE, THROTTLE 1

304-14112-15-00

Unavailable

14

. NEEDLE

152-14116-15-00

Unavailable

14

NEEDLE

166-14116-13-00

Unavailable

15

CLIP

3FA-14137-00-00

Unavailable

16

. SEAT, SPRING

137-14136-00-00

Unavailable

17

SPRING, THROTTLE VALVE

248-14131-00-00

Unavailable

17

SPRING, THROTTLE VALVE

3X3-14131-00-00

Unavailable

18

GASKET

193-14126-00-00

Unavailable

18

GASKET

246-14126-00-00

Unavailable

19

TOP, MIXING CHAMBER

193-14158-00-00

Unavailable

19

. TOP, MIXING CHAMBER

802-14158-00-00

Unavailable

20

SPRING, THROTTLE STOP

193-14133-00-00

Unavailable

21

CABLE ADJUST SCREW SET

12G-14106-00-00

Unavailable

21

SCREW,CABLE ADJ

193-14124-26-00

Unavailable

22

CAP

174-14169-01-00

Unavailable

23

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

23

SPRING, AIR ADJUSTING

174-14134-00-00

Unavailable

24

AIR SCREW SET

22K-14104-00-00

Unavailable

24

AIR SCREW SET

23X-14104-00-00

Unavailable

25

SPRING, THROTTLE STOP

137-14133-00-00

Unavailable

26

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

26

THROTTLE SCREW SET

40T-14103-00-00

Unavailable

27

PLUNGER, STARTER

132-14171-00-00

Unavailable

27

. PLUNGER, STARTER

304-14171-00-00

Unavailable

28

HOLDER

304-14261-00-00

Unavailable

29

COVER, PLUNGER CAP

132-14173-00-00

Unavailable

30

. CLIP, PLUNGER

152-14138-00-00

Unavailable

30

CAP, PLUNGER

152-14174-00-00

Unavailable

31

CAP, PLUNGER

132-14174-00-00

Unavailable

32

SPRING, PLUNGER

156-14135-00-00

Unavailable

33

PIN, COTTER

91490-16020-00

Unavailable

34

PIPE, AIR VENT

183-14197-01-00

Unavailable

35

PIPE

23F-14197-00-00

Unavailable

36

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

37

O-RING

241-14147-00-00

Unavailable

38

SETTER, NEEDLE JET

248-14145-01-00

Unavailable

39

WASHER,MAIN JET

137-14153-00-00

Unavailable

40

O-RING (371)

93210-04230-00

Unavailable

41

. STOPPER, CABLE

246-14132-00-00

Unavailable

42

NUT, WIRE ADJUSTING

802-14161-00-00

Unavailable

43

WASHER, STARTER LVR

132-14179-00-00

Unavailable

44

LEVER, STARTER LH

248-14175-00-00

Unavailable

45

PLATE, STARTER LEVER

170-14178-00-00

Unavailable
