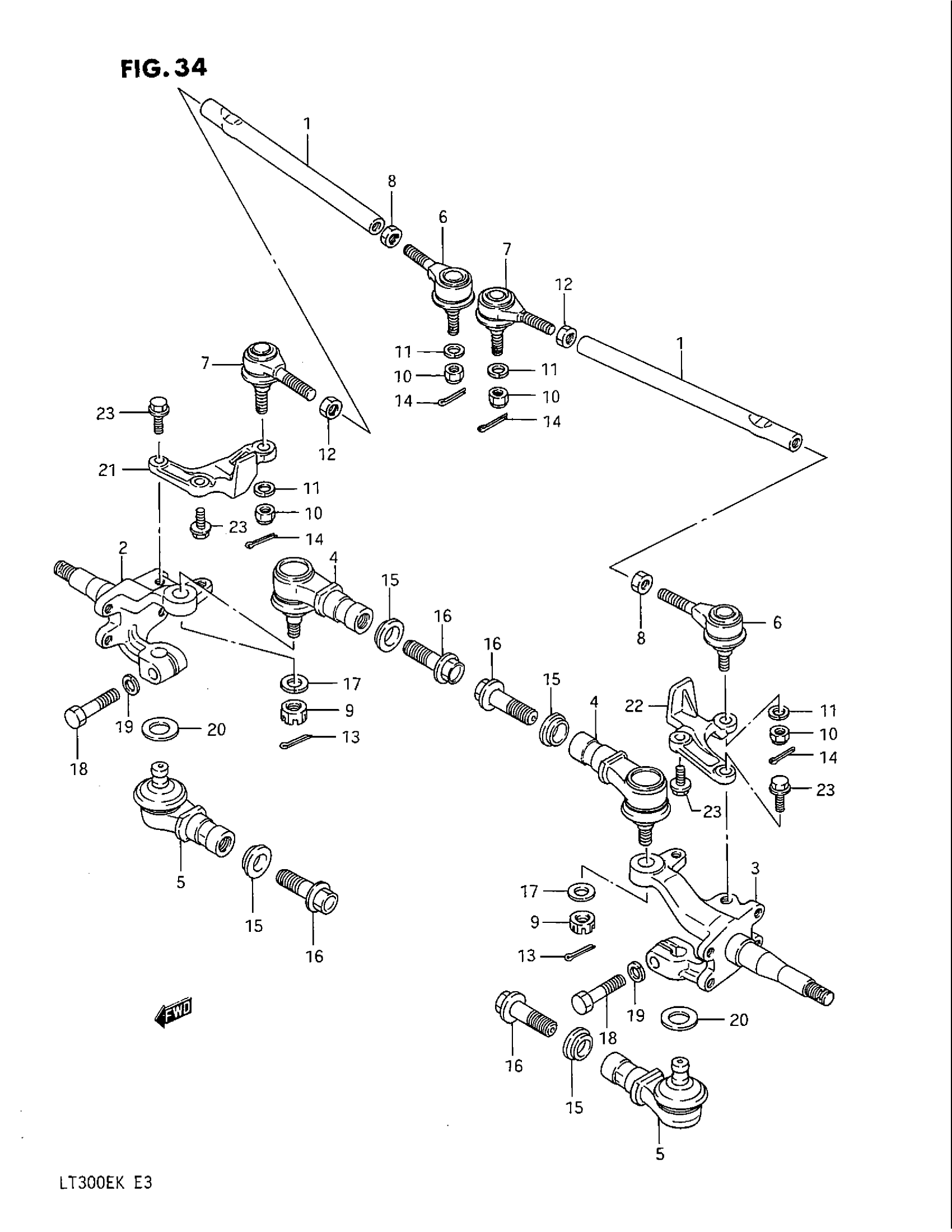

Suzuki LT300E (1989) TIE ROD Diagram

#

Description
Price

1

TIE ROD, STEERING

51281-41B00

Unavailable

2

KNUCKLE, STEERING RH

51231-41B00

Unavailable

3

KNUCKLE, STEERING LH

51241-41B00

Unavailable

4

END, KNUCKLE STEERING UPPER | MODEL H This part replaces 51210-19A00.

51210-19A01

Unavailable

4

END, KNUCKLE STEERING UPPER | MODEL J/K

51210-19A01

Unavailable

5

END,KNUCKLE STE | MODEL H This part replaces 51220-19A00.

51220-19A03

$106.62

5

END,KNUCKLE STE | MODEL J/K This part replaces 51220-19A01.

51220-19A03

$106.62

6

ROD, END RH This part replaces 51260-41B01.

51260-38F10

$81.22

7

ROD, END LH | MODEL H This part replaces 51270-41B00.

51270-38F10

$81.22

7

ROD, END LH | MODEL J/K This part replaces 51270-41B01.

51270-38F10

$81.22

8

NUT This part replaces 08310-22105.

09140-10043

$2.68

9

NUT This part replaces 08314-41125.

08314-4012A

$2.50

10

NUT This part replaces 09159-10036.

09159-10027

$3.10

11

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

12

NUT, TIE ROD LH

09140-10027

$1.49

13

PIN This part replaces 04111-30306.

04111-3030A

$1.49

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

STOPPER, KNUCKLE END BOLT

52418-24500

$8.83

16

BOLT. KNUCKLE END UPPER (14X38) This part replaces 09103-14006.

09103-14009

$14.73

17

WASHER,LOCK This part replaces 08321-21125.

08321-0112A

$2.10

18

BOLT, KNUCKLE LOWER

09100-10225

$4.02

19

LOCK WASHER This part replaces 08321-21104.

08321-0110A

$1.84

20

WASHER, KNUCKLE END This part replaces 09160-14034.

09160-14060

$2.85

21

ARM, KNUCKLE STEERING RH

51232-41B00

Unavailable

22

ARM, KNUCKLE STEERING LH

51242-41B00

Unavailable

23

BOLT (8X20) This part replaces 09103-08102.

09103-08505

$3.58
