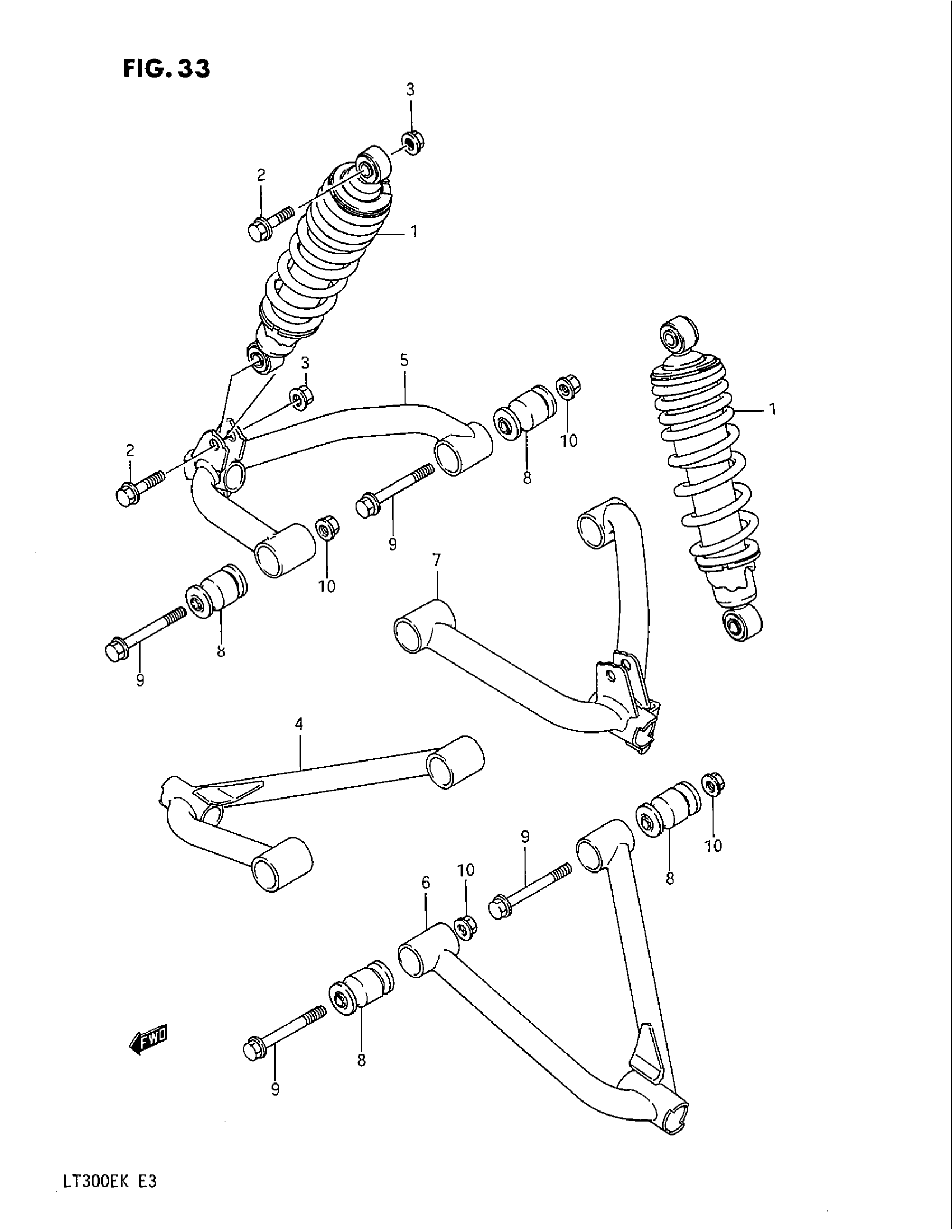

Suzuki LT300E (1989) SUSPENSION ARM Diagram

#

Description
Price

1

SHOCK ABSORBER, FRONT (ORANGE | MODEL H/J This part replaces 52100-41B00-25G.

52100-41B01-25G

Unavailable

1

SHOCK ABSORBER, FRONT (ORANGE | MODEL K

52100-41B01-25G

Unavailable

2

BOLT,10X37 This part replaces 09103-10038.

09103-10038-XC0

$2.86

3

NUT This part replaces 08316-16105.

08316-1010B

$2.66

4

ARM, SUSPENSION LOWER, RH | SILVER,MODEL H/J

52410-41B00-126

Unavailable

4

ARM, SUSPENSION LOWER, RH | BLACK,MODEL K This part replaces 52410-41B00-019.

52410-41B00-126

Unavailable

5

ARM, SUSPENSION UPPER, RH | SILVER,MODEL H/J

52430-41B00-126

Unavailable

5

ARM, SUSPENSION UPPER, RH | BLACK,MODEL K This part replaces 52430-41B00-019.

52430-41B00-126

Unavailable

6

ARM, SUSPENSION LOWER, LH | SILVER,MODEL H/J

52420-41B00-126

Unavailable

6

ARM, SUSPENSION LOWER, LH | BLACK,MODEL K This part replaces 52420-41B00-019.

52420-41B00-126

Unavailable

7

ARM, SUSPENSION UPPER, LH | SILVER,MODEL H/J

52440-41B00-126

Unavailable

7

ARM, SUSPENSION UPPER, LH | BLACK,MODEL K This part replaces 52440-41B00-019.

52440-41B00-126

Unavailable

8

BUSH, SUSPENSION ARM PIVOT

09319-10030

$11.61

9

BOLT,10X77 This part replaces 09103-10132.

09103-10247-XC0

$6.02

10

NUT This part replaces 08319-31105.

08319-3110A

$2.73
