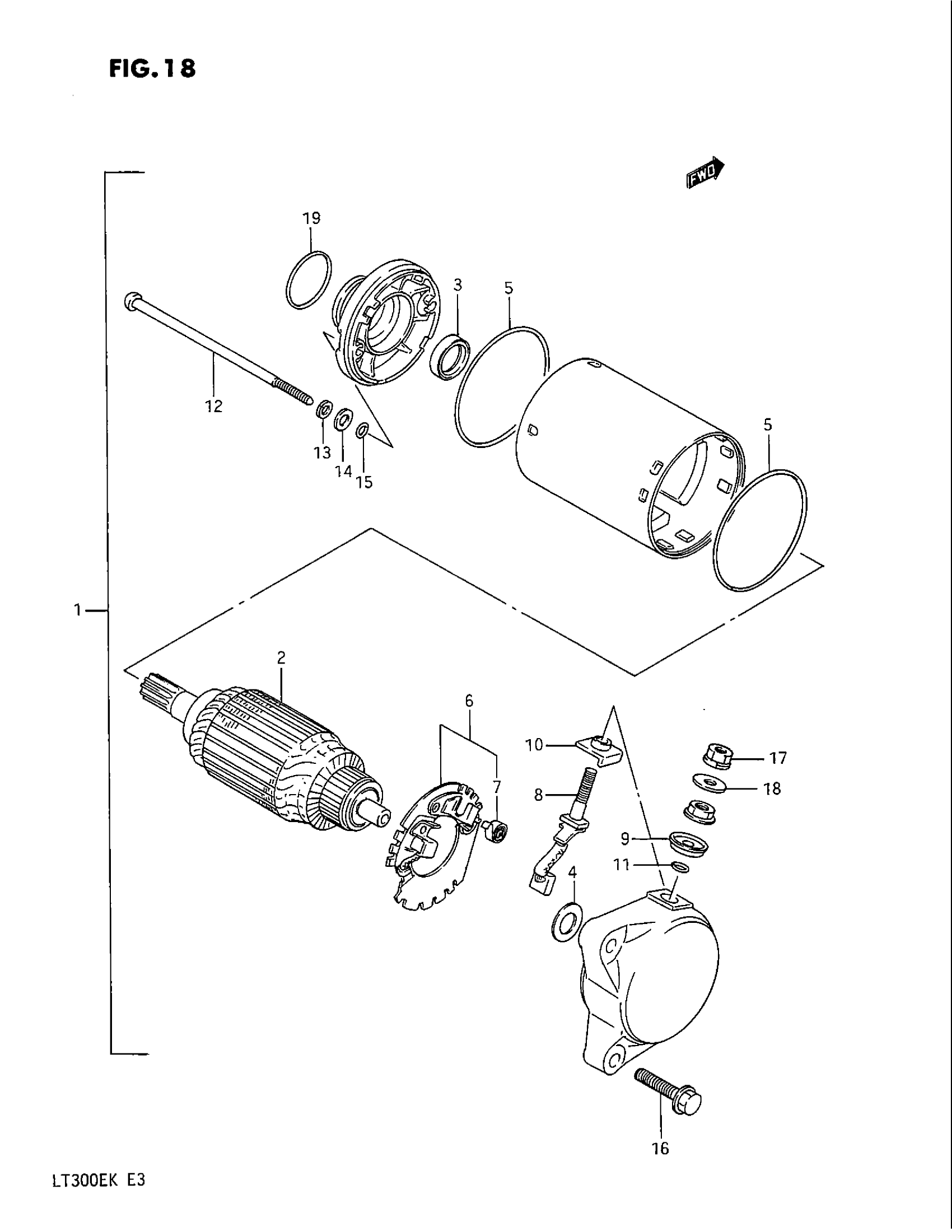

Suzuki LT300E (1989) STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY, STARTING | MODEL H/J This part replaces 31100-41B00.

31100-38300-H17

$674.33

1

MOTOR ASSY, STARTING | MODEL K; Includes Item(s) 2 - 15 This part replaces 31100-41B00-H17.

31100-38300-H17

$674.33

2

ARMATURE | MODEL H/J This part replaces 31311-49210.

31311-49211-H17

Unavailable

2

ARMATURE (NA) | MODEL K

31311-49211-H17

Unavailable

3

OIL SEAL

31153-49210

$24.20

4

.SHIM SET This part replaces 31361-47010.

31170-43400

Unavailable

5

O RING

31264-44110

$11.87

6

BRUSH HOLDER ASSY This part replaces 31132-30B00.

31132-27A01

$73.55

7

SPRING

31135-65010

$4.52

8

BRUSH (+)

31130-38300

$18.43

9

BUSHING (A)

31172-38300

$6.55

10

BUSHING (B)

31171-38300

$8.93

11

O RING

31143-38300

$5.10

12

BOLT This part replaces 31281-38300.

31281-87402

Unavailable

13

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

14

WASHER

31161-38300

Unavailable

15

O RING

31156-38300

$4.52

16

BOLT This part replaces 01517-06258.

01550-06257

$2.30

17

NUT This part replaces 08361-35066.

08361-3506A

$1.80

18

.WASHER (6.5X16X1) This part replaces 09160-06003.

09160-06129

$2.30

19

.O-RING (D:3,ID:24.5)

09280-24003

$1.55
