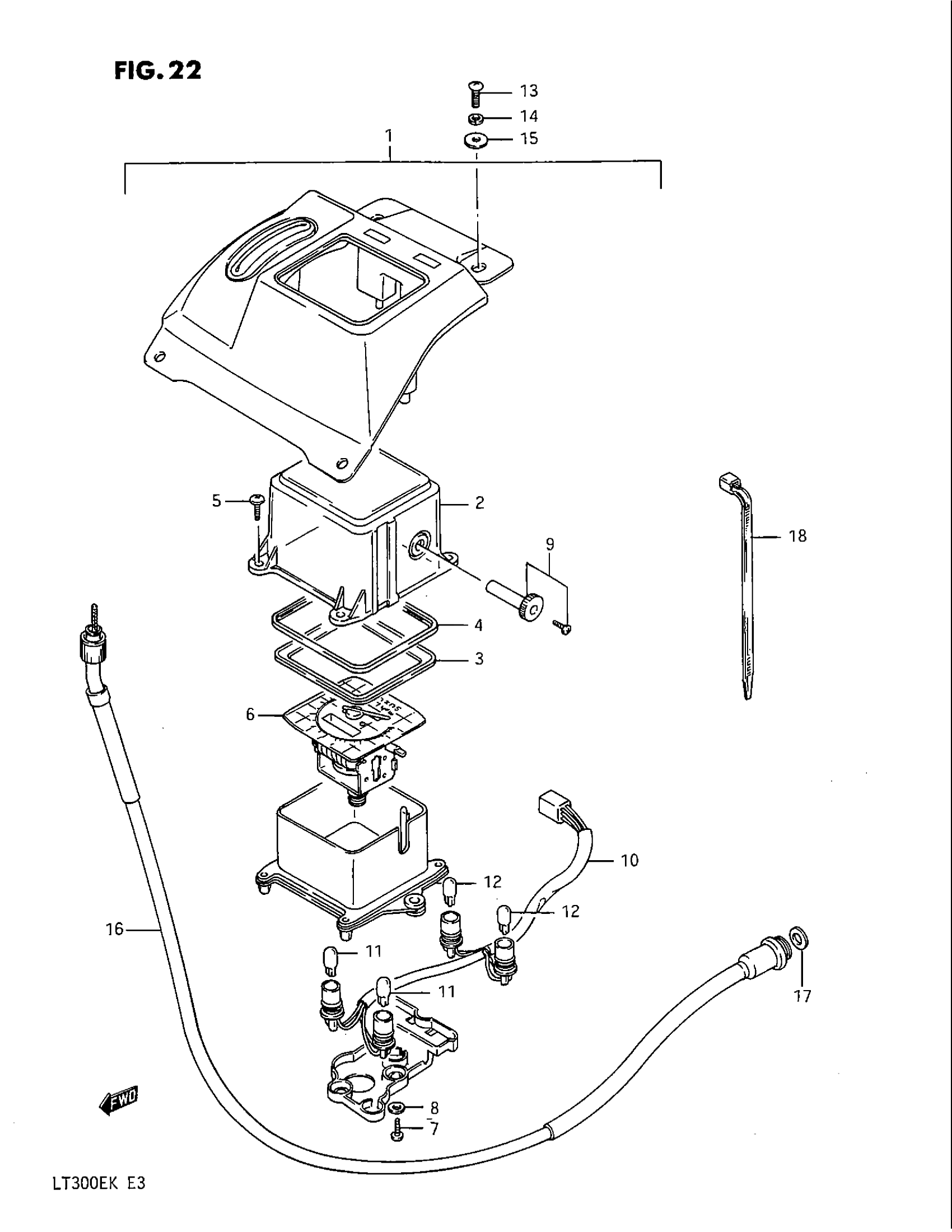

Suzuki LT300E (1989) SPEEDOMETER Diagram

#

Description
Price

1

SPEEDOMETER ASSY | Includes Item(s) 2 - 12

34100-41B20

Unavailable

2

GLASS, METER

34112-41B10

Unavailable

3

REFLECTOR

34125-41B00

Unavailable

4

GASKET

34189-41B00

Unavailable

5

SCREW

34183-41B10

Unavailable

6

SPEEDOMETER (MILE/KILO)

34120-41B20

Unavailable

7

SCREW (4x12) This part replaces 03541-04128.

03541-0412A

$1.49

8

WASHER This part replaces 08322-21047.

08322-01047

$1.86

9

KNOB, TRIP

34124-41B10

Unavailable

10

SOCKET

34170-41B10

Unavailable

11

BULB (12V,3.4W)

09471-12028

$1.99

12

BULB (12V,1.7W)

09471-12077

$3.55

13

SCREW This part replaces 02112-06164.

02112-0616A

$1.49

14

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

15

WASHER This part replaces 09160-06007.

09160-06084

$1.78

16

CABLE ASSY, SPEEDOMETER | MODEL H/J

34910-41B00

Unavailable

16

CABLE ASSY, SPEEDOMETER | MODEL K

34910-41B10

Unavailable

17

WASHER This part replaces 09161-07005.

09161-07006

$2.15

18

CLAMP, METER CABLE | MODEL H/J

09407-14403

$2.26
