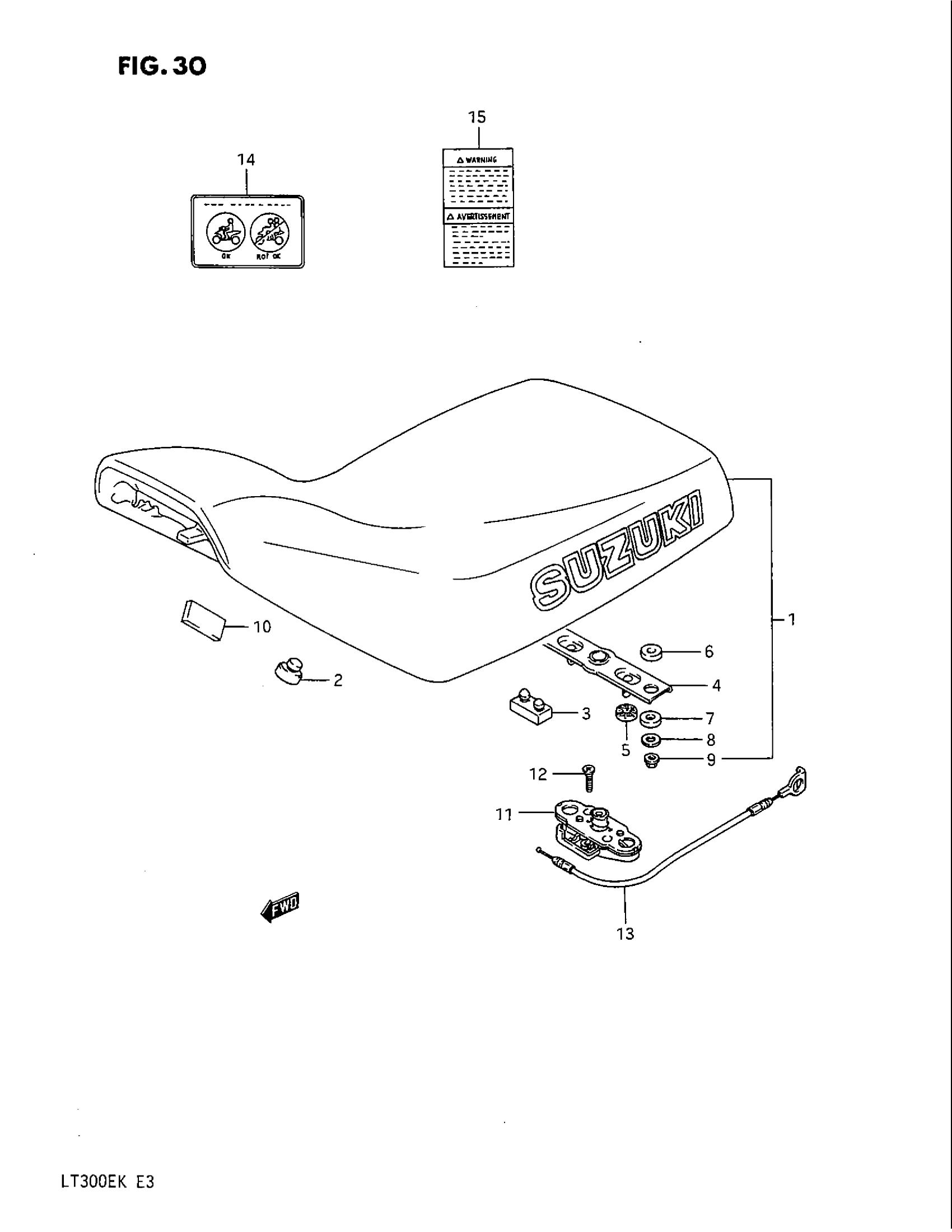

Suzuki LT300E (1989) SEAT Diagram

#

Description
Price

1

SEAT ASSY (BLUE) | MODEL H This part replaces 45100-41B00-4UZ.

45100-41B10-4UZ

Unavailable

1

SEAT ASSY (BLUE) | MODEL J/K; Includes Item(s) 2 - 10

45100-41B10-4UZ

Unavailable

2

CUSHION

09321-10012

$2.92

3

CUSHION

09321-08006

$2.90

4

STRIKER, SEAT LOCK

45215-22A10

Unavailable

5

CUSHION, BOSS

45213-43400

Unavailable

6

CUSHION, UPPER

45126-41B00

$2.38

7

CUSHION, LOWER

45127-41B00

$2.38

8

WASHER This part replaces 09160-06007.

09160-06084

$1.78

9

NUT This part replaces 08316-26066.

08316-1006B

$2.50

10

CUSHION, SEAT SIDE

45255-20920

Unavailable

11

LOCK ASSY, SEAT STRIKER

45220-22A10

$62.85

12

SCREW This part replaces 02122-06306.

02122-0630B

$2.06

13

CABLE, SEAT LOCK | MODEL H/J This part replaces 45280-41B00.

45280-41B10

Unavailable

13

CABLE, SEAT LOCK | MODEL K

45280-41B10

Unavailable

14

LABEL,WARNING This part replaces 68367-04610.

68367-04611

Unavailable

15

LABEL, WARNING HEADLIGHT This part replaces 68367-41B00.

68367-20B00

Unavailable
