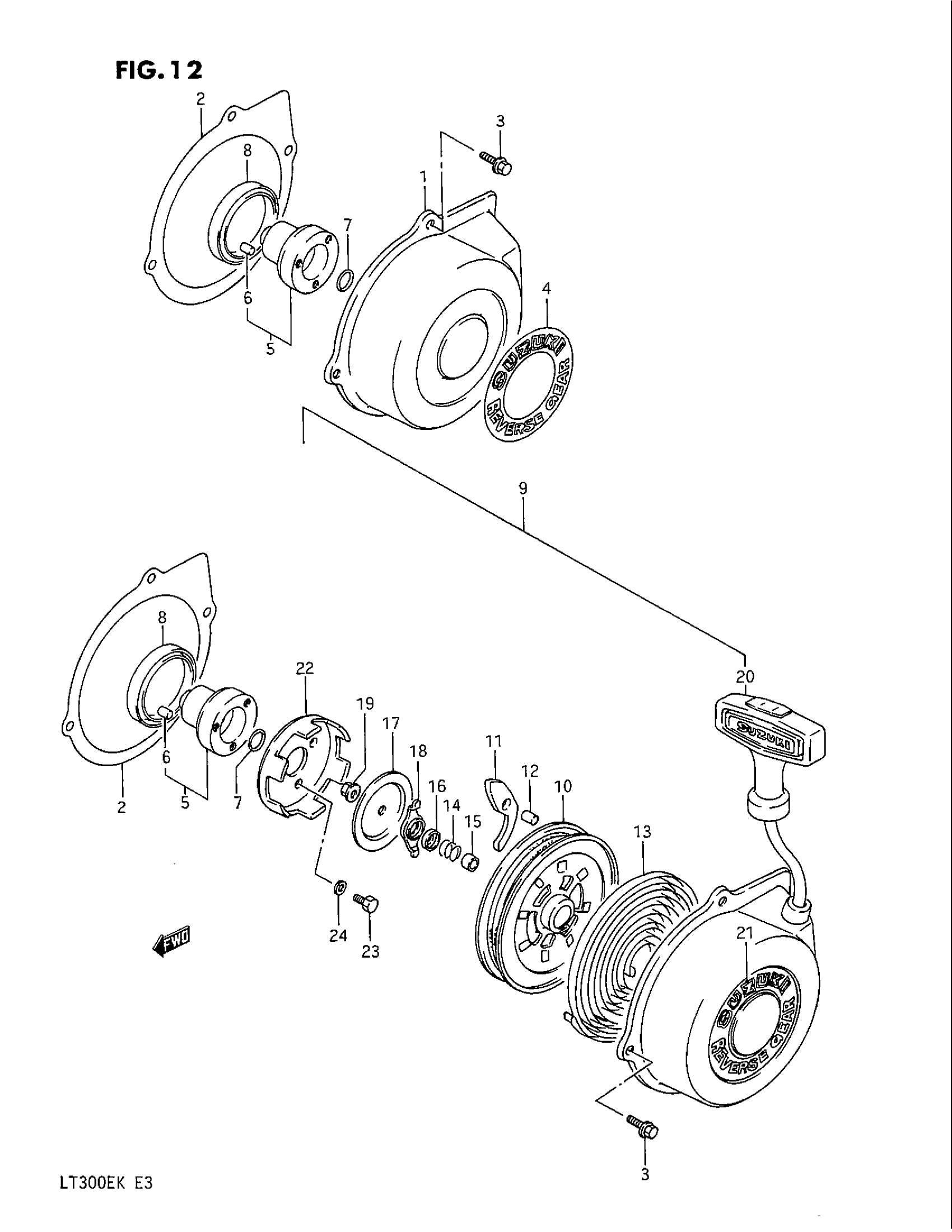

Suzuki LT300E (1989) RECOIL STARTER Diagram

#

Description
Price

1

COVER, RECOIL STARTER PIECE | MODEL H

18111-41B10

Unavailable

2

GASKET, RECOIL STARTER

18299-24501

$5.48

3

BOLT, EXHAUST DRAIN This part replaces 01547-06125.

01547-06127

$1.65

4

EMBLEM | MODEL H

68398-24410

$13.81

5

PIECE, RECOIL STARTER | Includes Item(s) 6

18150-41B00

Unavailable

6

PIN (4X13.8)

04221-04089

$1.49

7

O RING (D:2.4,ID:11.8)

09280-12012

$4.64

8

OIL SEAL (48X62X9)

09282-48002

Unavailable

9

STARTER SET, RECOIL | MODEL J/K,MODEL H OPT; Includes Item(s) 10 - 24

18000-41810

Unavailable

10

REEL | MODEL J/K,MODEL H OPT

18120-24500

$47.40

11

RATCHET | MODEL J/K,MODEL H OPT

18131-24411

$8.12

12

PIN, RATCHET | MODEL J/K,MODEL H OPT

18344-24400

Unavailable

13

.SPRING,SPIRAL | MODEL J/K,MODEL H OPT

18142-24400

$29.60

14

SPRING, FRICTION | MODEL J/K,MODEL H OPT

18153-24400

Unavailable

15

SHAFT, SUB | MODEL J/K,MODEL H OPT

18176-24400

Unavailable

16

COVER, SPRING | MODEL J/K,MODEL H OPT

18275-24400

Unavailable

17

RATCHET SET | MODEL J/K,MODEL H OPT This part replaces 18151-24400.

18130-24400

$16.96

18

..GUIDE,RATCHET | MODEL J/K,MODEL H OPT

18132-24400

$2.92

19

NUT | MODEL J/K,MODEL H OPT This part replaces 18334-24400.

08316-1006B

$2.50

20

ROPE ASSY | MODEL J/K,MODEL H OPT This part replaces 18200-41B00.

18200-24501

$38.13

21

EMBLEM | MODEL J/K,MODEL H OPT

68398-24410

$13.81

22

NO DESCRIPTION AVAILABLE | MODEL J/K,MODEL H OPT This part replaces 18411-41BZ0.

18411-41B00

Unavailable

23

BOLT | MODEL J/K,MODEL H OPT This part replaces 01107-06108.

01500-06107

$2.06

24

LOCK WASHER | MODEL J/K,MODEL H OPT This part replaces 08321-21067.

08321-01067

$2.13
