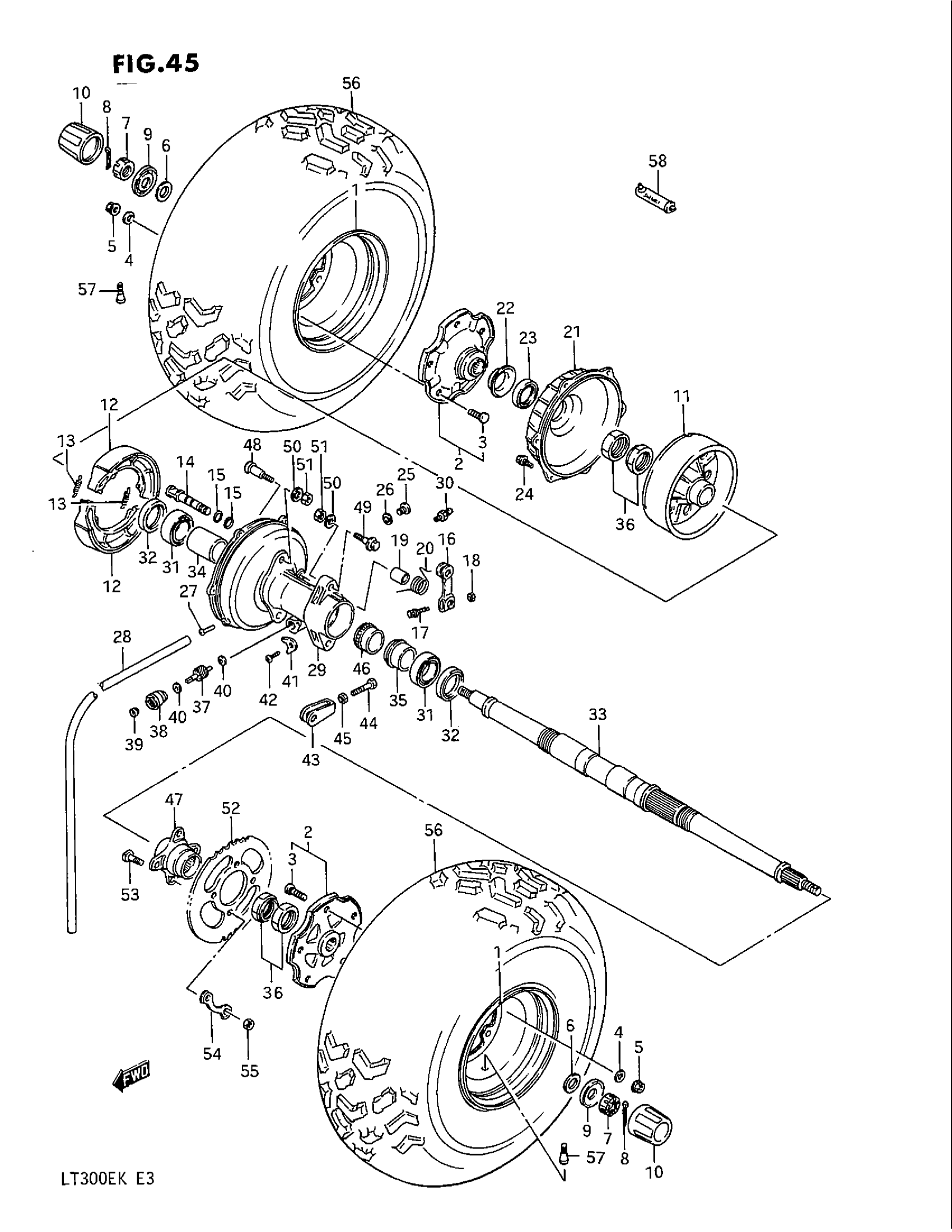

Suzuki LT300E (1989) REAR WHEEL Diagram

#

Description
Price

1

RIM, REAR WHEEL (SILVER)

65310-41B00-13L

Unavailable

2

HUB, REAR (WHITE) | MODEL H/J This part replaces 64110-41B00.

64110-41B10

Unavailable

2

HUB, REAR (WHITE) | MODEL K; Includes Item(s) 3

64110-41B10

Unavailable

3

BOLT

09119-10048

$3.72

4

WASHER This part replaces 08322-21108.

08322-01107

$2.15

5

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39

6

WASHER

09164-18004

$3.76

7

NUT

09141-18009

Unavailable

8

PIN, COTTER This part replaces 04111-40356.

04111-4040A

$1.49

9

HOLDER, CAP

64726-19B00

$3.31

10

CAP

54725-18A00

$10.28

11

DRUM, BRAKE

64120-24504

Unavailable

12

SHOE SET, BRAKE This part replaces 64410-24501.

64400-41810

$62.17

13

SPRING

55420-30000

$4.48

14

CAM, BRAKE

64440-41B00

Unavailable

15

O RING

64443-18A00

$1.98

16

LEVER, CAM

64451-41B00

Unavailable

17

BOLT This part replaces 01517-06306.

01550-0630A

$2.32

18

NUT This part replaces 08316-16066.

08316-1006B

$2.50

19

SPACER, CAM

09180-16040

Unavailable

20

SPRING, LEVER RETURN

09448-30017

Unavailable

21

COVER, DRUM

64130-41B00

Unavailable

22

SEAL, OUTER

64135-41B00

Unavailable

23

SEAL, COVER

64729-41B00

Unavailable

24

BOLT This part replaces 01517-06167.

01550-06167

$2.30

25

PLUG, DRAIN

09247-10009

Unavailable

26

WASHER

09161-10007

$1.72

27

PLUG, BREATHER

09364-08003

$3.15

28

HOSE, 7X12, 1X2 This part replaces 09352-70121-13A.

09352-70121-00B

$32.90

29

HOUSING

64720-41B00

Unavailable

30

NIPPLE,GREASE This part replaces 08351-21008.

08351-2100A

$4.68

31

BEARING

08123-60087

$44.10

32

DUST SEAL

09283-50006

$21.88

33

AXLE, REAR

64711-41B00

Unavailable

34

SPACER, RH

09180-40002

Unavailable

35

SPACER, LH

64730-41B00

Unavailable

36

NUT

64870-19A00

$83.40

37

GEAR, PINION (NT:14)

54620-24500

Unavailable

38

BUSH

54632-24500

Unavailable

39

OIL SEAL

09289-06001

$4.58

40

WASHER,5.1X9X0. This part replaces 09160-05001.

09160-05001-A05

$1.87

41

PLATE, PINION

54623-24500

Unavailable

42

SCREW This part replaces 02112-05088.

02112-05087

$1.49

43

ADJUSTER, CHAIN

61410-35B00

$18.31

44

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

45

NUT This part replaces 08310-22088.

08310-00087

$2.13

46

GEAR, SPEEDOMETER (NT:37)

54611-24500

Unavailable

47

FLANGE

64611-41B00

Unavailable

48

BOLT, RH

09119-10052

Unavailable

49

BOLT, LH

09103-10158

Unavailable

50

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

51

NUT

08319-31107

$2.73

52

SPROCKET, REAR (NT:41)

64511-24510

Unavailable

53

BOLT

09119-10031

$7.30

54

WASHER

09169-10014

Unavailable

55

NUT This part replaces 08310-11108.

08310-00107

$2.19

56

TIRE, REAR (AT25X12.00-9) | MODEL H This part replaces 65100-41B00.

65100-41B50

Unavailable

56

TIRE, REAR (AT25X12.00-9) | MODEL J/K

65100-41B50

Unavailable

57

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

58

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

$58.92
