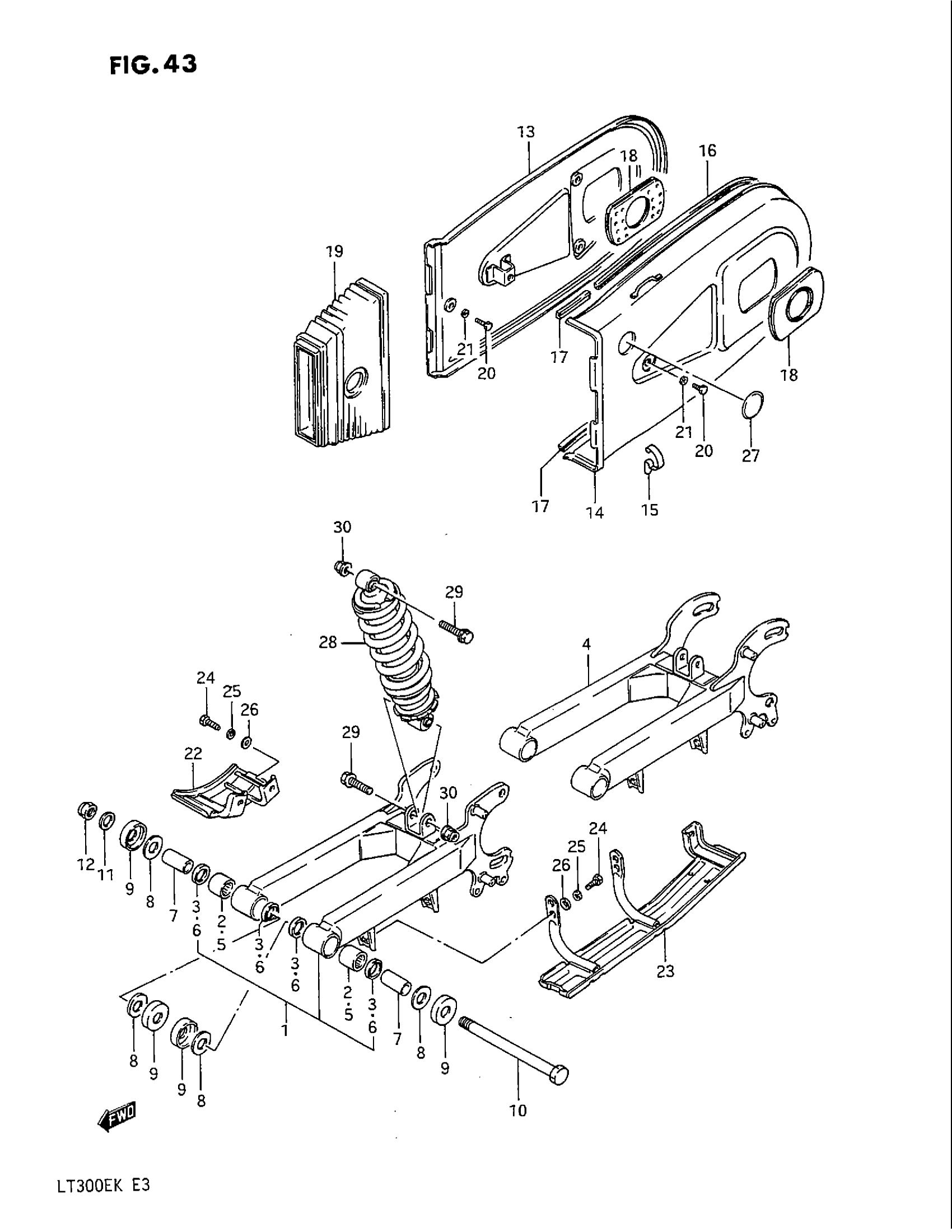

Suzuki LT300E (1989) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM ASSY, REAR | MODEL H/J; Includes Item(s) 2 - 3

61000-41B00-019

Unavailable

2

BEARING

09263-22017

$22.58

3

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

4

SWINGING ARM ASSY, REAR | MODEL K; Includes Item(s) 5 - 6

61000-41B10-019

Unavailable

5

BEARING

09263-22017

$22.58

6

.SEAL,OIL (21X29X4) This part replaces 09285-22001.

09285-22006

$3.83

7

SPACER

61251-41B00

$22.22

8

THRUST WASHER

08211-15341

$2.85

9

COVER This part replaces 61262-22A00.

61262-22A01

$6.05

10

NO DESCRIPTION AVAILABLE This part replaces 61211-41B00.

61211-41B0V

Unavailable

11

WASHER This part replaces 08322-11146.

08322-0114A

$1.84

12

NUT This part replaces 08319-21146.

08319-2114A

$3.96

13

CHAIN CASE, INNER

61310-41B00

Unavailable

14

CHAIN CASE, OUTER

61320-41B00

Unavailable

15

CLAMP

61328-24500

Unavailable

16

SEAL, OUTER (L:1335) | L:1335->920

61336-24300

Unavailable

17

SEAL, FRONT

61337-24500

Unavailable

18

SEAL, REAR

61378-24501

Unavailable

19

BOOT

61370-41B00

Unavailable

20

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

21

LOCK WASHER This part replaces 08321-31066.

08321-0106A

$1.84

22

GUARD, DRUM

61391-41B00

Unavailable

23

GUARD, CASE

61392-41B00

Unavailable

24

PLUG, DRAIN This part replaces 01107-08166.

01500-0816B

$2.50

25

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

26

WASHER This part replaces 08322-11086.

08322-0108A

$1.92

27

CAP(OD:40) This part replaces 09250-30001.

09250-30024

$1.78

28

NO DESCRIPTION AVAILABLE | ORANGE This part replaces 62100-41B00-25G.

62100-41B00-019

Unavailable

29

BOLT

09103-10101

$4.00

30

NUT | *** This part replaces 08316-16106.

08316-1010B

$2.66
