1989 Suzuki LT300E Oil Pump - Fuel Pump Diagram

← All diagrams

Find the part on the Oil Pump - Fuel Pump diagram for your 1989 Suzuki LT300E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

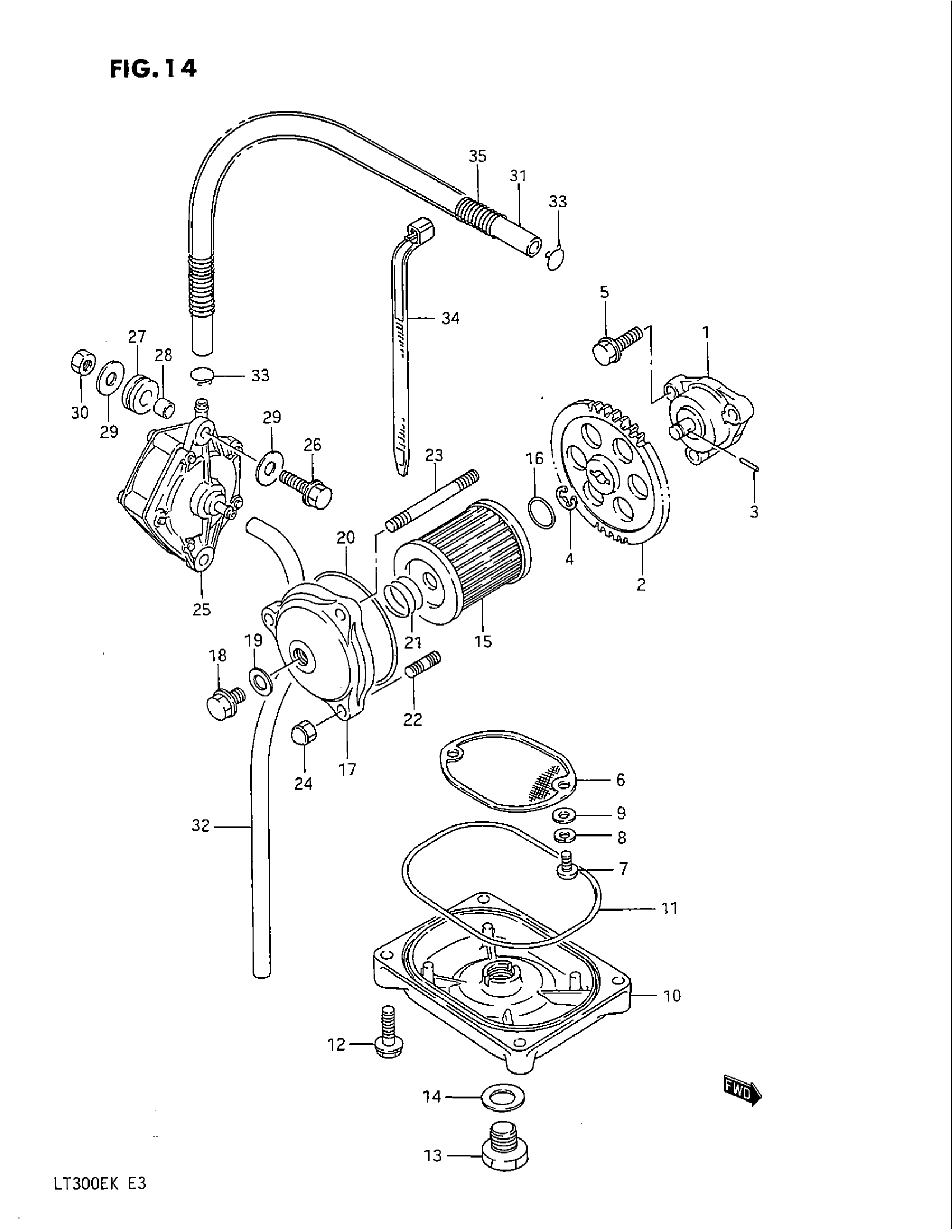

1989 Suzuki LT300E Oil Pump - Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PUMP, ENGINE OIL This part replaces 16400-01410.

16400-01412

1
Out of stock

2

GEAR, DRIVEN (NT:38)

16331-24500

1
Out of stock

3

PIN

09261-02008

1
Out of stock

4

CIRCLIP This part replaces 08332-11068.

08332-1106A

1
Out of stock

5

BOLT

01547-06257

3
Out of stock

6

STRAINER,ENGINE OIL This part replaces 16520-24500.

16520-27H00

1
Out of stock

7

SCREW This part replaces 02112-05126.

02112-0512A

2
Out of stock

8

LOCK WASHER This part replaces 08321-21056.

08321-0105A

2
Out of stock

9

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

2
Out of stock

10

CAP, OIL STRAINER

16523-24501

1
Out of stock

11

O RING

16528-24500

1
Out of stock

12

BOLT

01547-06257

4
Out of stock

13

PLUG (MAGNETO) This part replaces 09247-14001.

09247-14002

1
Out of stock

14

GASKET

09168-14004

1
Out of stock

15

FILTER ASSY, ENG OIL This part replaces 16510-24501.

16510-25C00

1
Out of stock

16

O RING (D:1.9,ID:13)

09280-13004

1
Out of stock

17

CAP, OIL FILTER

16512-22A00

1
Out of stock

18

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

1
Out of stock

19

GASKET

09168-08015

1
Out of stock

20

O RING (D:2.4,ID:52.6)

09280-54001

1
Out of stock

21

SPRING

09440-18002

1
Out of stock

22

BOLT,STUD This part replaces 01421-06168.

01421-0616A

2
Out of stock

23

BOLT,STUD This part replaces 01421-06858.

01421-0685A

1
Out of stock

24

NUT This part replaces 08313-11065.

08313-1006A

3
Out of stock

25

PUMP ASSY,FUEL This part replaces 15100-18900.

15100-19B11

1
Out of stock

26

BOLT This part replaces 01517-06256.

01550-0625A

2
Out of stock

27

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

2
Out of stock

28

SPACER (6.1X9X7.5)

09180-06038

2
Out of stock

29

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

4
Out of stock

30

NUT This part replaces 09159-06017.

08319-31067

2
Out of stock

31

HOSE(6X10X600) This part replaces 09343-06027.

09352-60104-600

1
Out of stock

32

HOSE (5X9X2000) This part replaces 09343-05376.

09352-50901-00B

1
Out of stock

33

CLIP

09401-10401

2
Out of stock

34

CLAMP (L:165)

09407-18402

1
Out of stock

35

NO DESCRIPTION AVAILABLE This part replaces 09440-13040.

09440-13040-XC0

1
Out of stock
