1989 Suzuki LT300E Fuel Tank Diagram

← All diagrams

Find the part on the Fuel Tank diagram for your 1989 Suzuki LT300E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

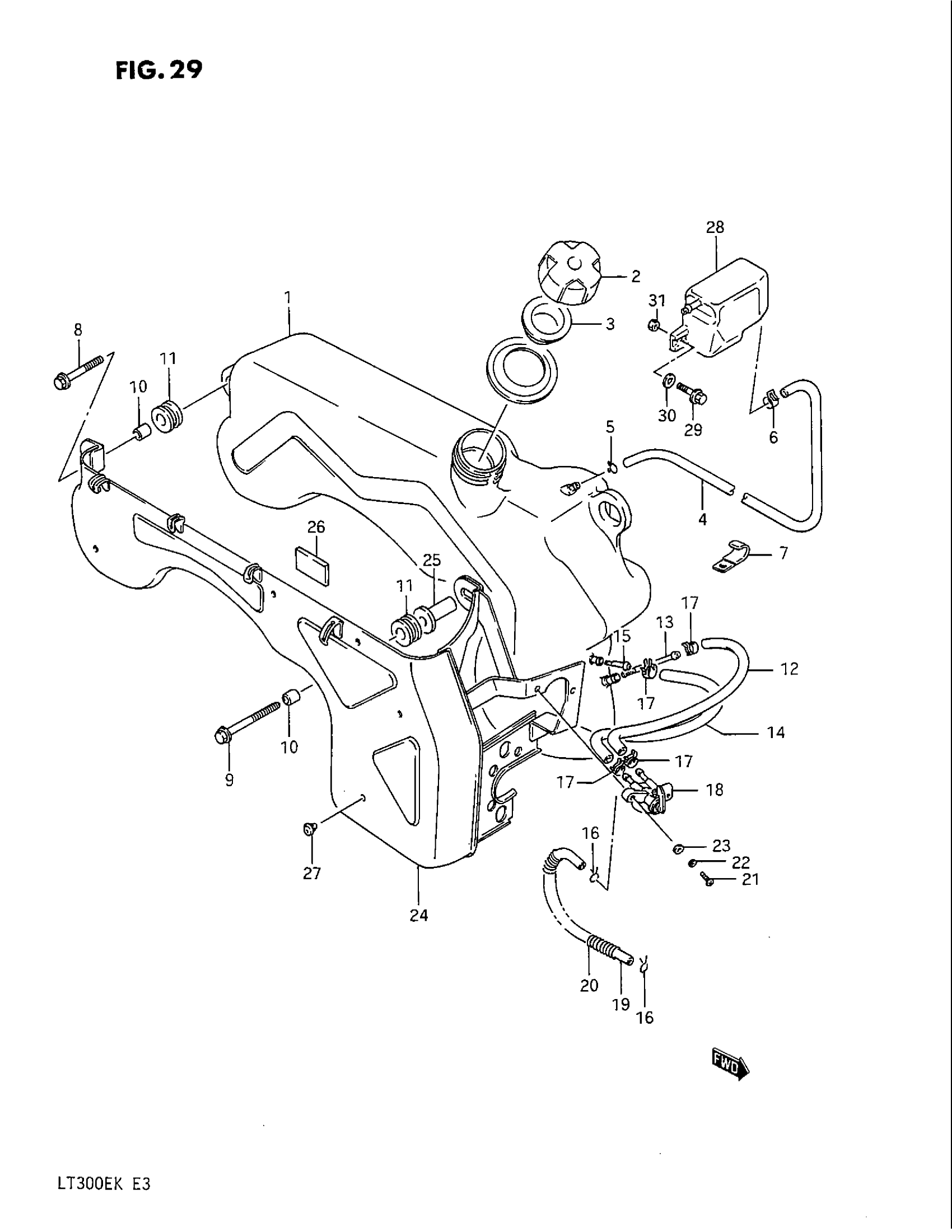

1989 Suzuki LT300E Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, FUEL

44111-41B00

1
Out of stock

2

CAP, FUEL TANK

44211-24400

1
Out of stock

3

GASKET This part replaces 44248-40400.

44248-05211

1
Out of stock

4

HOSE, BREATHER

44124-41B00

1
Out of stock

5

CLIP

09401-10301

1
Out of stock

6

CLAMP, AIR BENT HOSE

09401-12404

1
Out of stock

7

CLAMP This part replaces 09403-09301.

09404-06037

1
Out of stock

8

BOLT, TANK LOWER

09103-08203

1
Out of stock

9

BOLT This part replaces 01107-08306.

01500-0830B

2
Out of stock

10

SPACER This part replaces 09180-08120.

09180-08209

3
Out of stock

11

CUSHION

09320-12016

3
Out of stock

12

HOSE, CANISTER & PURGE | MODEL H/J This part replaces 09343-05370.

09359-54111-600

1
Out of stock

12

HOSE, CANISTER & PURGE | MODEL K This part replaces 09359-54111-270.

09359-54111-600

1
Out of stock

13

FILTER, FUEL "ON"

44323-24400

1
Out of stock

14

HOSE, CANISTER & PURGE | MODEL H/J This part replaces 09343-05370.

09359-54111-600

1
Out of stock

14

HOSE, CANISTER & PURGE | MODEL K This part replaces 09359-54111-270.

09359-54111-600

1
Out of stock

15

FILTER, FUEL "RES"

44322-27001

1
Out of stock

16

CLIP, COCK & PUMP

09401-08402

2
Out of stock

17

CLIP (ID:10.5,H:8)

09401-10409

4
Out of stock

18

COCK ASSY,FUEL This part replaces 44300-18B00.

44300-17271

1
Out of stock

19

HOSE This part replaces 09352-50823-890.

09352-50005-00B

1
Out of stock

20

SPRING

09440-10031

1
Out of stock

21

SCREW This part replaces 02112-05208.

02112-05207

2
Out of stock

22

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

23

WASHER This part replaces 08322-21057.

08322-01057

2
Out of stock

24

GUARD, FUEL TANK

44570-41B00

1
Out of stock

25

BOSS, FUEL TANK CUSHION

44520-41B00

1
Out of stock

26

RUBBER, FUEL TANK GUARD

44518-09300

1
Out of stock

27

CUSHION, FUEL TANK GUARD

09321-06016

6
Out of stock

28

SEPARATOR, FUEL

89411-81100

1
Out of stock

29

BOLT

01517-06166

2
Out of stock

30

.WASHER This part replaces 08322-21066.

08322-0106B

4
Out of stock

31

NUT This part replaces 08310-22066.

08310-0006B

2
Out of stock
