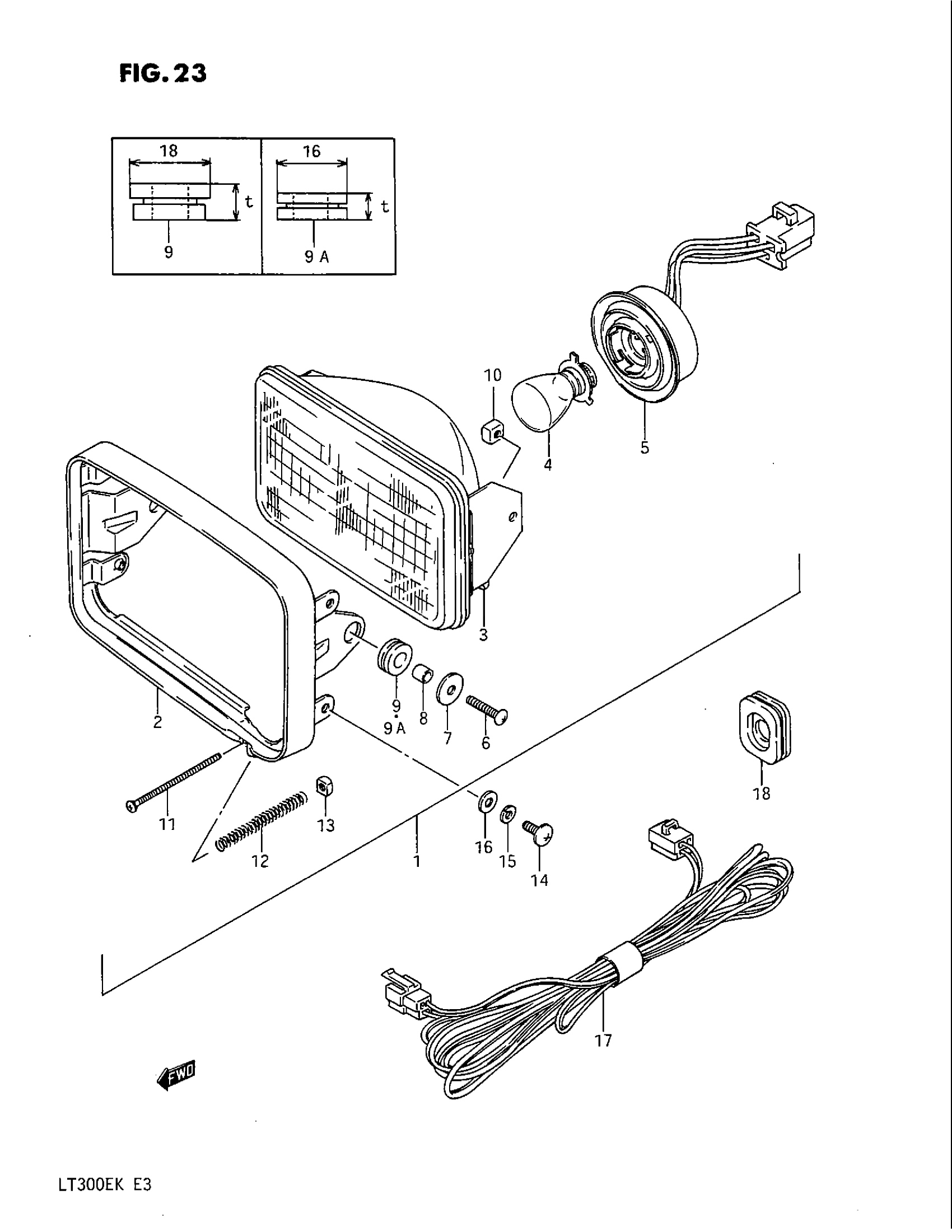

Suzuki LT300E (1989) HEADLAMP Diagram

#

Description
Price

1

HEADLAMP ASSY | ~F.NO.104207 This part replaces 35100-41B00.

35100-41B01

Unavailable

1

HEADLAMP ASSY | F.NO.104208~; Includes Item(s) 2 - 13

35100-41B01

Unavailable

2

RIM | ~F.NO.104207 This part replaces 35111-41B00.

35111-41B01

Unavailable

2

RIM | F.NO.104208~

35111-41B01

Unavailable

3

UNIT, LAMP

35121-41B00

Unavailable

4

BULB (12V,45/45W)

09471-12080

$6.58

5

SOCKET

35171-41B00

Unavailable

6

SCREW This part replaces 02112-05206.

02112-0520B

$1.84

7

WASHER (5.5X18X1) This part replaces 35138-45230.

09160-05045

$1.93

7

WASHER This part replaces 35138-41B01.

09160-05013

$1.49

8

SPACER (5.5X8X7.7)

35133-45230

$3.30

8

SPACER (5.5X8X5)

35133-41B01

Unavailable

9

CUSHION (T:8)

35139-45230

$1.98

9A

CUSHION (T:6)

35139-41B01

Unavailable

10

NUT

35135-45900

$3.25

11

SCREW | ~F.NO.104207 This part replaces 35151-49200.

35151-45900

$3.65

11

SCREW | F.NO.104208~

35151-45900

$3.65

12

SPRING

35154-41B00

Unavailable

13

NUT

35135-45600

$3.65

14

.SCREW This part replaces 02142-05124.

02142-0512A

$1.49

15

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

16

WASHER, FRONT This part replaces 08322-21055.

08322-0105A

$1.84

17

WIRE, HEADLAMP LEAD

36856-41B00

Unavailable

18

GROMMET

09320-13019

Unavailable
