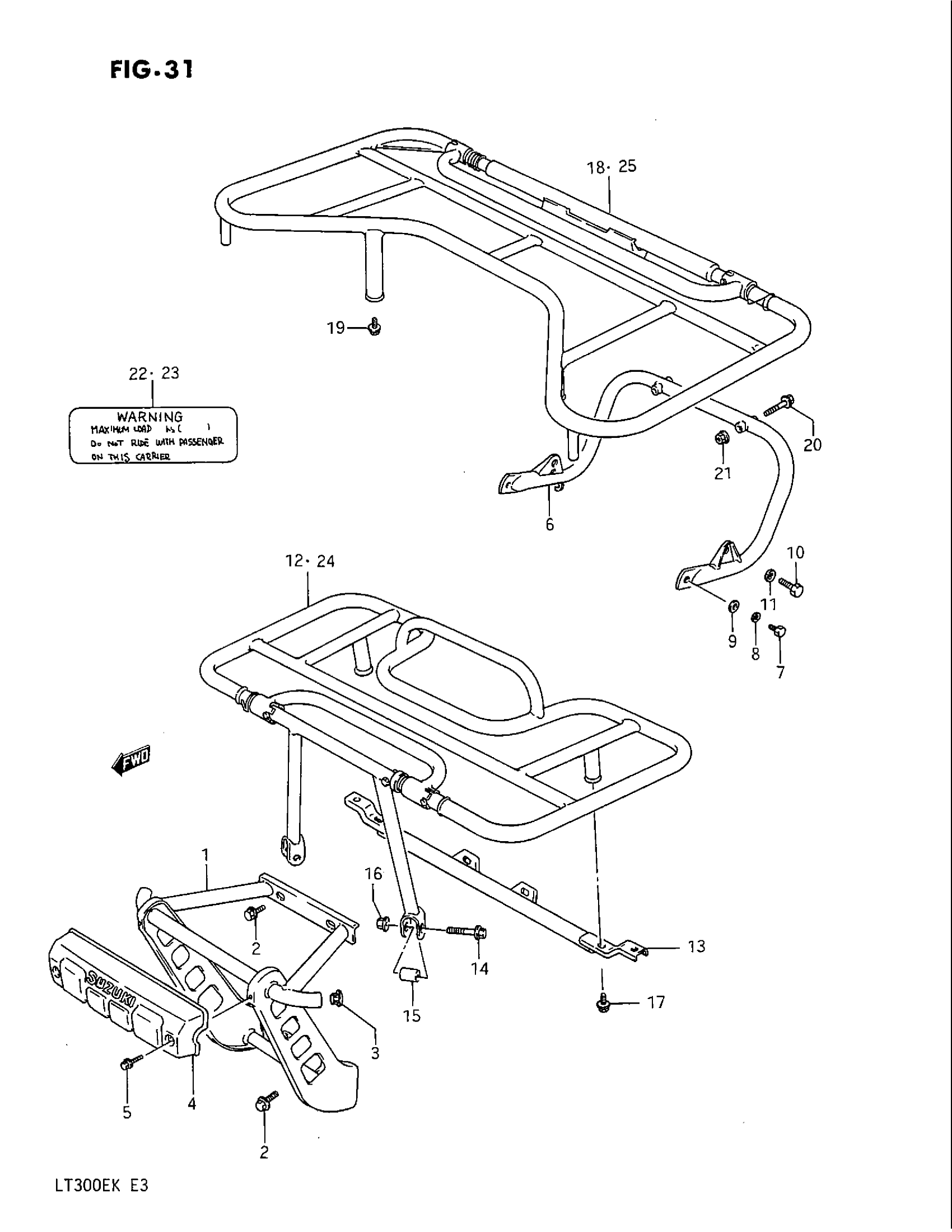

Suzuki LT300E (1989) GRIP - CARRIER (MODEL H) Diagram

#

Description
Price

1

GRIP, FRONT

43990-41B00

Unavailable

2

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.32

3

CAP

43978-24500

$8.42

4

RUBBER, FRONT GRIP

43976-41B00

Unavailable

5

BOLT This part replaces 01517-05125.

01550-0512B

$2.87

6

GRIP, REAR

43980-41B00

Unavailable

7

PLUG, DRAIN This part replaces 01107-08165.

01500-0816B

$2.50

8

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

9

WASHER This part replaces 08322-21085.

08322-0108A

$1.92

10

BOLT This part replaces 01107-10203.

01500-1020B

$3.16

11

LOCK WASHER This part replaces 08321-31103.

08321-0110A

$1.84

12

NO DESCRIPTION AVAILABLE This part replaces 46400-41B00.

46400-41B01

Unavailable

13

BRACKET, FRONT CARRIER

46440-41B00

Unavailable

14

BOLT (8X35) This part replaces 01517-08355.

01550-0835A

$3.04

15

SPACER This part replaces 09180-08102.

09180-08194

$3.05

16

NUT This part replaces 08319-31085.

08319-3108A

$2.32

17

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.32

18

CARRIER, REAR

46300-41B00

Unavailable

19

BOLT (8X12) This part replaces 01517-08126.

01550-0812A

$2.32

20

.BOLT This part replaces 01517-08555.

01550-0855A

$3.05

21

NUT This part replaces 08316-16085.

08316-1008B

$2.66

22

LABEL,REAR CARR This part replaces 68381-24500.

68391-19B01

$5.60

23

LABEL,FRONT CAR This part replaces 68391-24500.

68381-19B01

$5.42

24

CARRIER SET, FRONT | OPT

46400-41810

Unavailable

25

CARRIER SET, REAR | OPT

46300-41810

Unavailable
