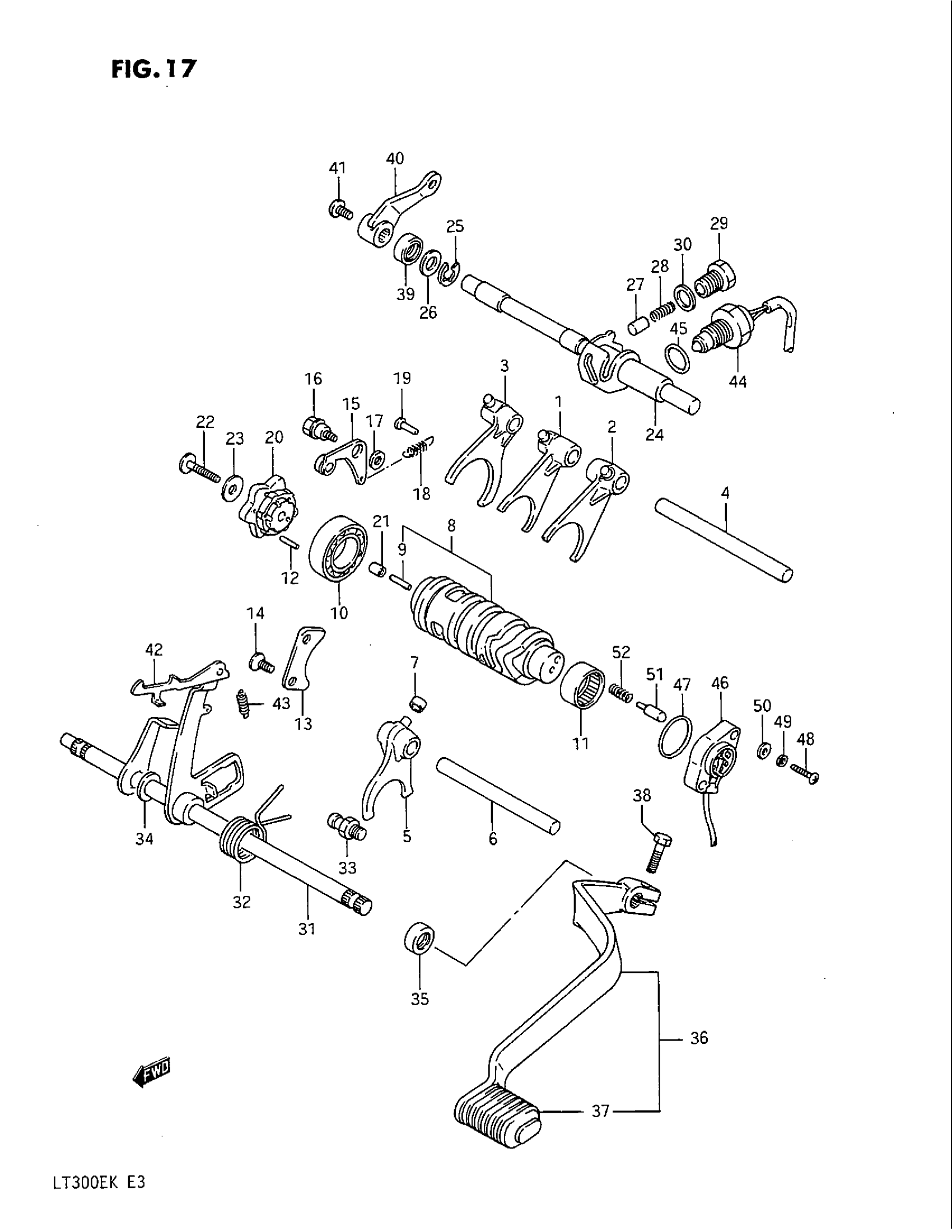

Suzuki LT300E (1989) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING, NO.1

25211-24501

Unavailable

2

FORK, GEAR SHIFTING, NO.2

25221-24500

Unavailable

3

FORK, GEAR SHIFTING, NO.4

25241-24502

Unavailable

4

SHAFT, NO.1

25411-24501

Unavailable

5

FORK, GEAR SHIFTING, NO.3

25231-24500

Unavailable

6

SHAFT, GEAR SHIFT FORK (L:109

25411-16701

$18.02

7

ROLLER

09180-06124

Unavailable

8

CAM, GEAR SHIFTING | Includes Item(s) 9

25310-41B00

Unavailable

9

PIN This part replaces 06211-04103.

04221-04109

Unavailable

10

BEARING (25X47X8) This part replaces 09262-25002.

09262-25006

$25.54

11

BEARING, LH

09263-25018

$21.39

12

ROLLER (4X13.8)

09261-04002

$1.72

13

RETAINER

25341-24500

Unavailable

14

SCREW This part replaces 02122-06128.

02122-06127

$1.84

15

STOPPER, CAM

25350-24500

Unavailable

16

BOLT This part replaces 09111-06019.

09111-06054

$3.70

17

WASHER

08211-06143

Unavailable

18

SPRING

09443-09026

$4.16

19

HOOK

09223-04001

$1.68

20

PLATE, STOPPER

25381-24501

Unavailable

21

PIN

09206-09001

Unavailable

22

BOLT This part replaces 01517-06358.

01550-06357

$2.77

23

WASHER

08211-06201

Unavailable

24

CAM, REVERSE SHIFTING

25320-24506

Unavailable

25

E RING This part replaces 08332-11106.

08332-1110A

$1.80

26

WASHER

08211-12203

$2.53

27

STOPPER, CAM This part replaces 25351-11000.

25351-11010

$7.22

28

SPRING

09440-05007

$1.82

29

HOLDER, STOPPER

25352-11010

$7.22

30

GASKET

09168-14004

$1.83

31

SHAFT, GEAR SHIFTING

25510-24501

Unavailable

32

SPRING This part replaces 09444-26018.

09444-26025

$5.33

33

STOPPER, ARM This part replaces 25671-24500.

25671-24501

Unavailable

34

WASHER

09181-12006

Unavailable

35

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

36

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 37

25600-41B02

Unavailable

37

COVER

25652-24401

$5.05

38

BOLT This part replaces 09100-06091.

01500-06207

$2.28

39

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

40

LEVER ASSY, REVERSE

25620-41B01

Unavailable

41

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

42

ARM | Includes Item(s) 43

25520-24503

Unavailable

43

SPRING

09443-07013

$2.07

44

SWITCH ASSY, REVERSE This part replaces 37600-19B00.

37600-19B03

$74.17

45

O RING (D:3.2,ID:15.8)

09280-16008

$2.02

46

SWITCH, GEAR SHIFTING This part replaces 37720-24501.

37720-24502

$54.06

47

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

48

SCREW This part replaces 02112-05208.

02112-05207

$1.97

49

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

50

WASHER This part replaces 08322-21057.

08322-01057

$2.13

51

CONTACT

09209-05011

$2.20

52

SPRING

09440-04010

$1.54
