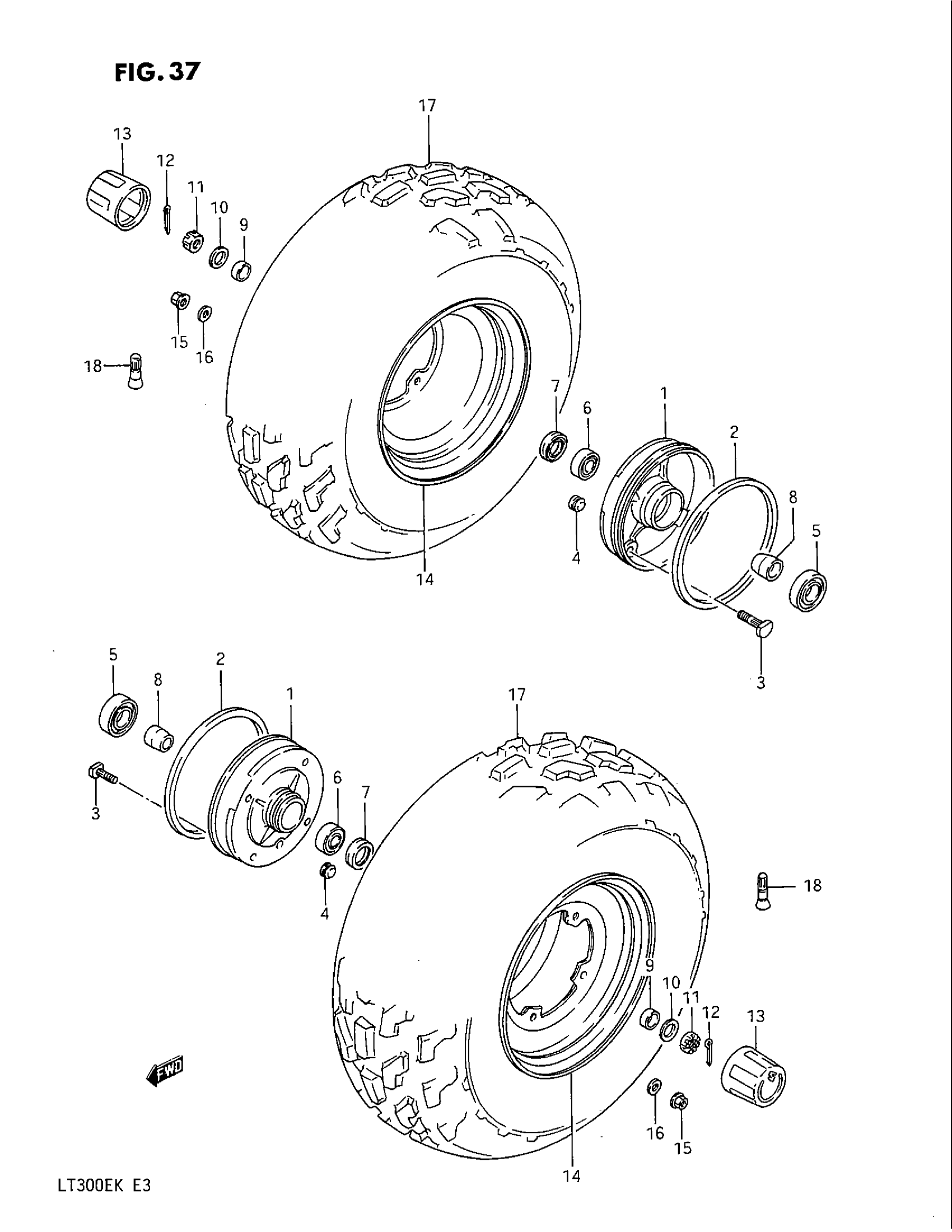

Suzuki LT300E (1989) FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

54110-24505

Unavailable

2

DUST SEAL, DRUM BRAKE

54124-18A00

Unavailable

3

BOLT, FRONT HUB

09119-08067

Unavailable

4

PLUG, BRAKE HOLE

09250-13002

$3.50

5

BEARING, INNER

08130-62047

$33.82

6

BI 15X35X11 BEA This part replaces 08130-62027.

08133-62027

$25.35

7

DUST SEAL, OUTER

09284-21001

$12.79

8

SPACER, FRONT HUB

54731-24501

Unavailable

9

SPACER, FRONT AXLE

09180-15068

$4.90

10

WASHER This part replaces 08322-11146.

08322-0114A

$1.84

11

NUT, HUB This part replaces 08314-41146.

08314-4014B

$4.24

12

PIN This part replaces 04111-30256.

04111-3030A

$1.49

13

CAP, WHEEL, CENTER

54725-18A00

$10.28

14

RIM, FRONT WHEEL (SILVER)

55310-41B00-13L

Unavailable

15

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

16

WASHER This part replaces 08322-21088.

08322-01087

$2.13

17

TIRE, FRONT (21X8-9) DUNLOP | MODEL H This part replaces 55100-41B00.

55100-41B50

Unavailable

17

TIRE, FRONT (21X8-9) DUNLOP | MODEL J/K

55100-41B50

Unavailable

18

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25
