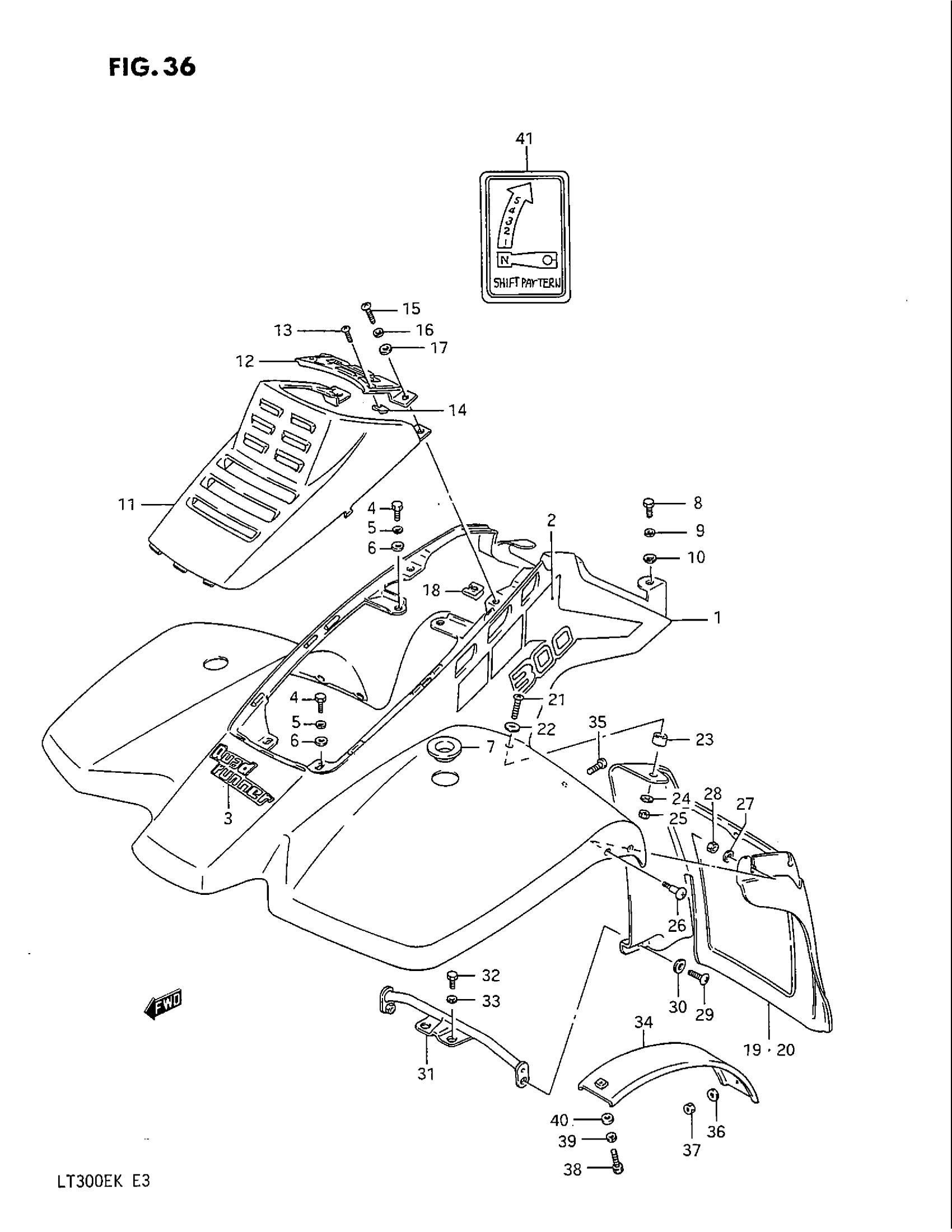

Suzuki LT300E (1989) FRONT FENDER (MODEL H) Diagram

#

Description
Price

1

FENDER, FRONT (ORANGE)

53111-41B00-25G

Unavailable

2

TAPE SET

68150-41B00-34Y

Unavailable

3

EMBLEM

68233-18930-73J

Unavailable

4

BOLT, CANISTER This part replaces 01107-06167.

01500-06167

$1.97

5

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

6

WASHER This part replaces 09160-06007.

09160-06084

$1.78

7

GROMMET This part replaces 09308-25004.

09308-25005

$3.88

8

BOLT This part replaces 01107-06207.

01500-06207

$2.28

9

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

10

WASHER This part replaces 09160-06007.

09160-06084

$1.78

11

FENDER, FRONT CENTER

53118-41B00

Unavailable

12

COVER, FRONT FENDER

53119-41B00

Unavailable

13

SCREW This part replaces 02142-05164.

02142-0516A

$1.49

14

NUT, COVER

53141-41B00

Unavailable

15

SCREW This part replaces 02112-06255.

02112-0625A

$1.80

16

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

17

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

18

NUT, CENTER FENDER

53141-19A00

$4.34

19

MUD FLAP, FENDER RH This part replaces 53311-19B02.

53311-19B05

Unavailable

20

MUD FLAP, FENDER LH This part replaces 53312-19B02.

53312-19B05

Unavailable

21

SCREW This part replaces 02142-06355.

02142-0635A

$2.72

22

WASHER (6.5X20X1.2) This part replaces 09160-06038.

09160-06077

$1.91

23

SPACER, MUD FLAP

09180-06189

Unavailable

24

WASHER (6.5X18X1.6) This part replaces 09160-06039.

09160-06109

$1.49

25

NUT This part replaces 08319-31066.

08319-31067

$2.03

26

SCREW, MUD FLAP

09139-05038

$2.06

27

WASHER (5.5X20X1.4) This part replaces 09160-05039.

09160-05046

$1.92

28

NUT This part replaces 08319-31056.

08319-3105B

$3.55

29

SCREW This part replaces 02142-06125.

02142-0612A

$1.49

30

WASHER This part replaces 09169-06025.

09169-06010

$2.60

31

BRACE, MUD FLAP

53210-41B00

Unavailable

32

BOLT This part replaces 01107-06125.

01500-0612A

$1.78

33

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

34

REINF, FRONT FENDER

53120-41B00

Unavailable

35

SCREW This part replaces 02142-06205.

02142-0620A

$1.49

36

WASHER (6.5X18X1.6) This part replaces 09160-06057.

09160-06109

$1.49

37

NUT This part replaces 08319-31066.

08319-31067

$2.03

38

PLUG, DRAIN This part replaces 01107-08167.

01500-0816B

$2.50

39

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

40

WASHER (8.5X18X2.0) This part replaces 09160-08013.

09160-08120

$2.19

41

LABEL, GEAR SHIFT

68392-24210

$2.92
