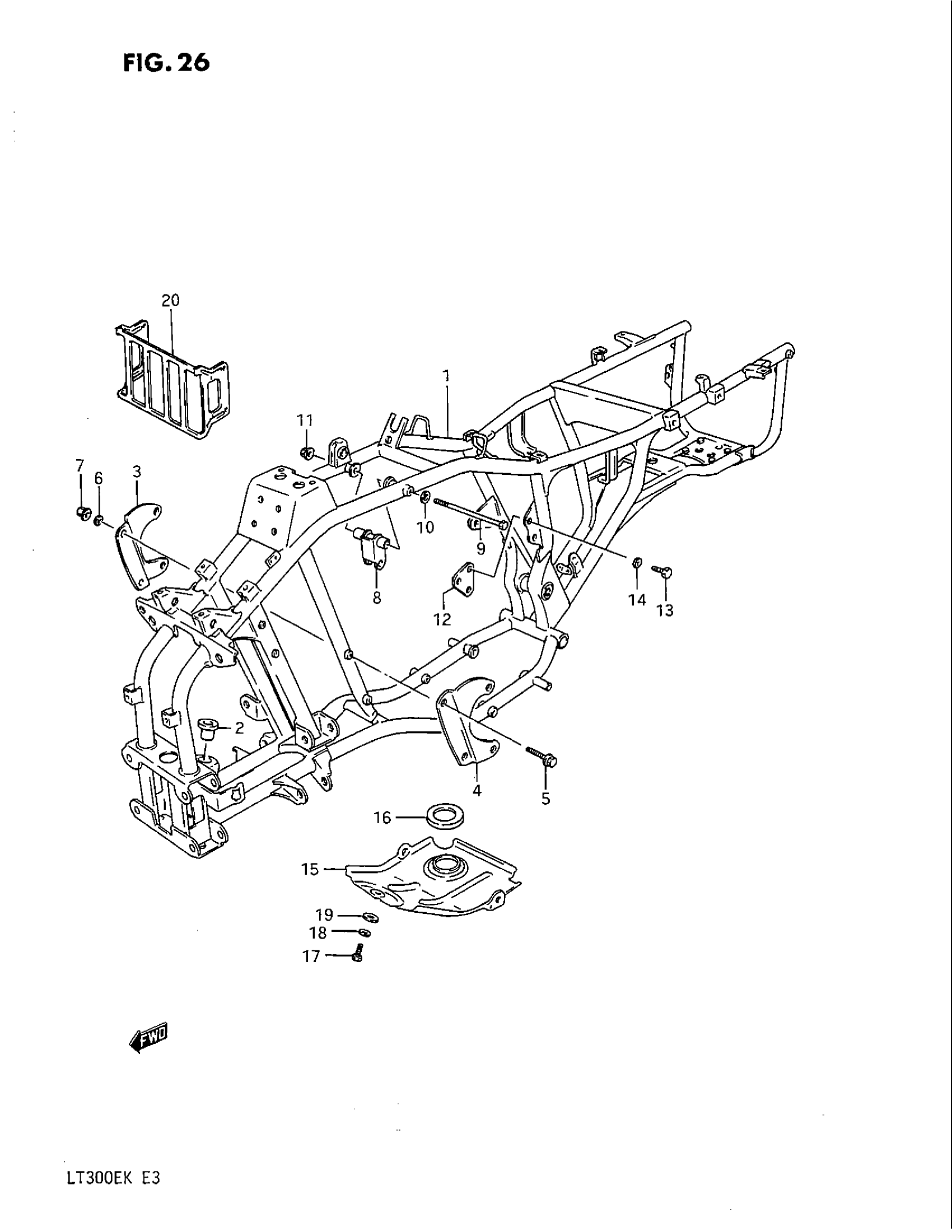

Suzuki LT300E (1989) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL H This part replaces 41100-41B00-019.

41100-41B61-019

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 41100-41B01-019.

41100-41B61-019

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 41100-41B02-019.

41100-41B61-019

Unavailable

2

BUSH, STEERING SHAFT LOWER (17X26X36.9) | MODEL H/J This part replaces 51661-19B00.

51661-09F00

$30.05

2

BUSH, STEERING SHAFT LOWER (17X26X36.9) | MODEL K This part replaces 51661-19B10.

51661-09F00

$30.05

3

PLATE, ENGINE MOUNT NO.1 RH

41911-41B00

Unavailable

4

PLATE, ENGINE MOUNT NO.1 LH

41912-41B00

Unavailable

5

.BOLT This part replaces 01517-08555.

01550-0855A

$3.05

6

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

7

NUT This part replaces 08319-31085.

08319-3108A

$2.32

8

PLATE, MOUNT UPPER RH (BLACK) | MODEL H/J This part replaces 41930-41B00-019.

41930-41B01-019

Unavailable

8

PLATE, MOUNT UPPER RH (BLACK) | MODEL K

41930-41B01-019

Unavailable

9

BOLT (10x210) This part replaces 09100-10145.

09100-10033

Unavailable

10

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.84

11

NUT This part replaces 08319-31105.

08319-3110A

$2.73

12

PLATE, MOUNT NO.4 LH (BLACK)

41980-41B00-019

Unavailable

13

PLUG, DRAIN This part replaces 01107-08166.

01500-0816B

$2.50

14

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

15

PROTECTOR, ENGINE | Includes Item(s) 16

42510-41B00

Unavailable

16

RUBBER

61395-41B00

Unavailable

17

BOLT This part replaces 01107-08125.

01500-0812A

$2.28

18

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

19

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

20

GUARD, HEADLAMP | OPT

48500-41B00

Unavailable
