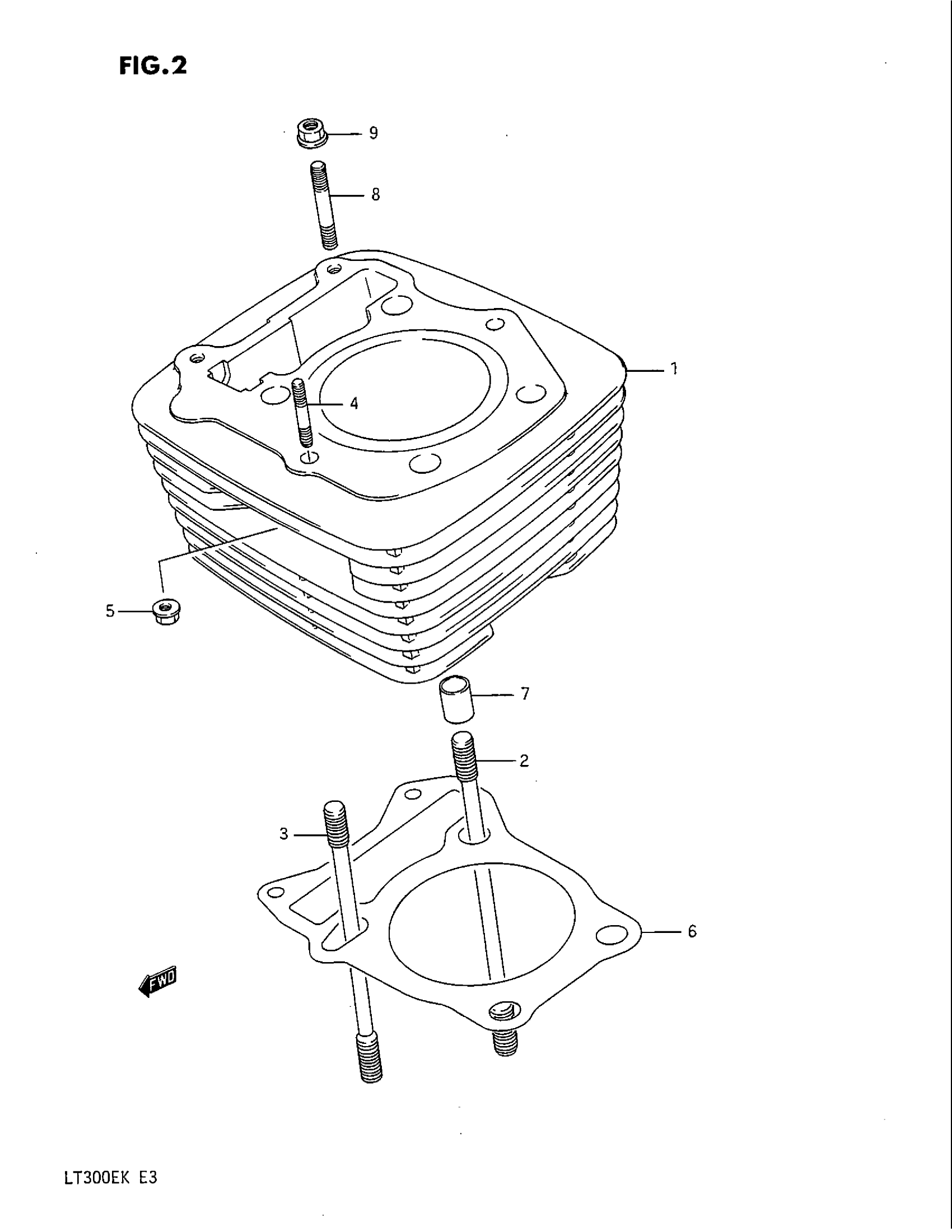

Suzuki LT300E (1989) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11210-41B02

Unavailable

2

STUD BOLT (10X157) This part replaces 09108-10080.

09108-10099

$15.90

3

STUD BOLT (L:136)

09108-10088

Unavailable

4

STUD BOLT (L:25) This part replaces 01421-06258.

01421-06257

$2.85

5

NUT This part replaces 09159-06017.

08319-31067

$2.03

6

GASKET, CYLINDER

11241-41B01

Unavailable

7

PIN This part replaces 09206-13001.

04211-13189

$2.19

8

STUD BOLT This part replaces 01421-06308.

01421-06307

$2.62

9

NUT This part replaces 09159-06017.

08319-31067

$2.03
