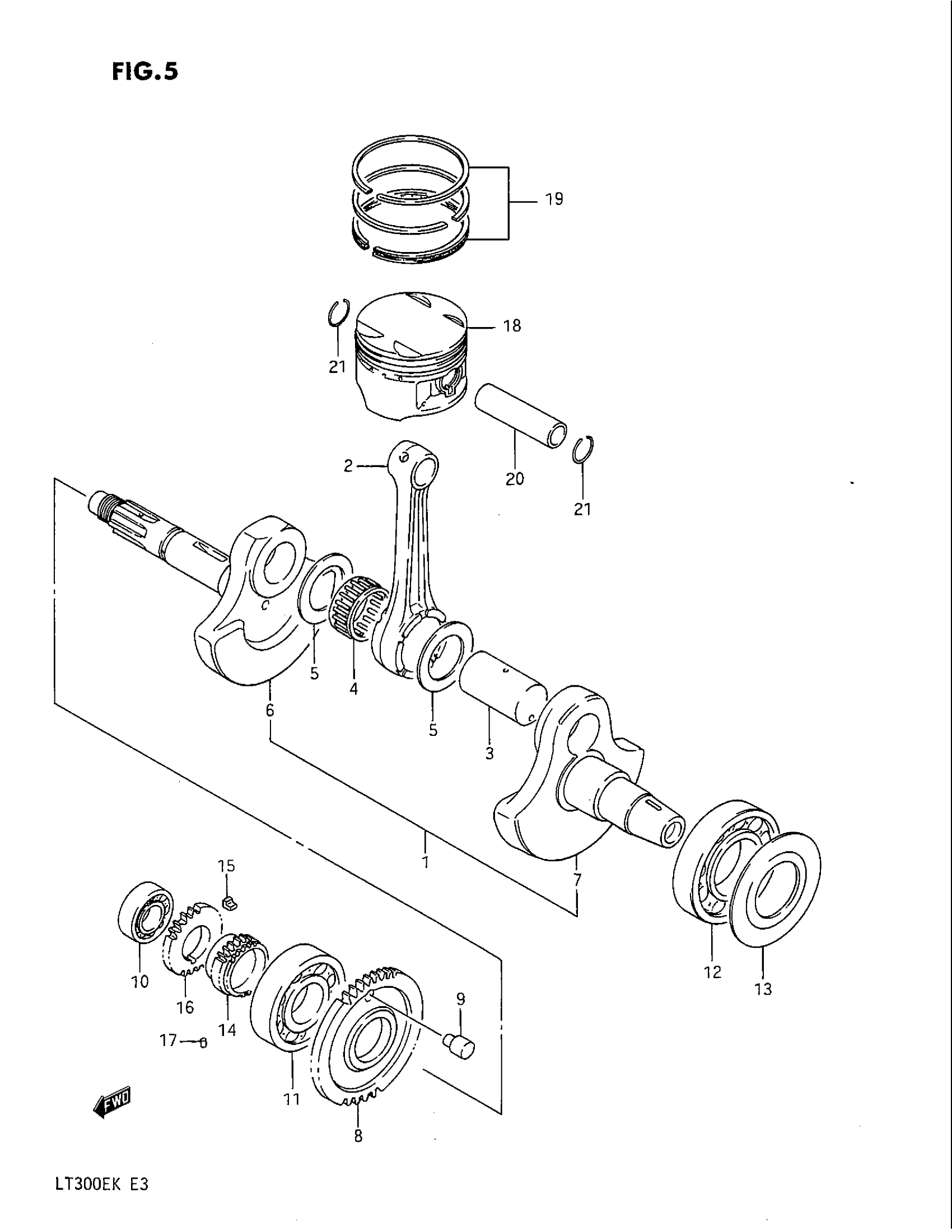

Suzuki LT300E (1989) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 9

12200-41B00

Unavailable

2

ROD, CONNECTING

12161-41B00

Unavailable

3

PIN, CRANK This part replaces 12211-38202.

12211-38211

Unavailable

4

BEARING

09263-31004

$64.62

5

WASHER

09160-31002

$7.82

6

CRANKSHAFT, RH

12221-41B00

Unavailable

7

CRANKSHAFT, LH

12261-41B00

Unavailable

8

GEAR, BALANCER DRIVE

12661-41B00

Unavailable

9

PIN

09209-12006

Unavailable

10

BEARING, RH

09262-17024

Unavailable

11

BEARING, RH (30x72x19) This part replaces 09262-30074.

09262-30077

$58.43

12

BEARING, LH (35X80X21) This part replaces 09262-35027.

09262-35009

$87.52

13

WASHER

12521-38300

Unavailable

14

SPROCKET, DRIVE (NT:21)

12731-38200

Unavailable

15

KEY

12749-32400

Unavailable

16

GEAR, OIL PUMP DRIVE (NT:24)

16321-24500

Unavailable

17

PIN This part replaces 06211-03052.

04221-03059

$1.72

18

PISTON

12111-41B00-0F0

Unavailable

18

PISTON SET | OPT This part replaces 12111-41B00-050.

12103-41820-050

Unavailable

18

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-41B00-100.

12103-41820-100

Unavailable

19

RING SET, PISTON

12140-41B10

Unavailable

19

RING SET, PISTON (OS:0.5) | OPT

12140-41B10-050

Unavailable

19

RING SET, PISTON (OS:1.0) | OPT

12140-41B10-100

Unavailable

20

PIN

12151-15501

$17.37

21

CIRCLIP

09381-18002

$1.67
