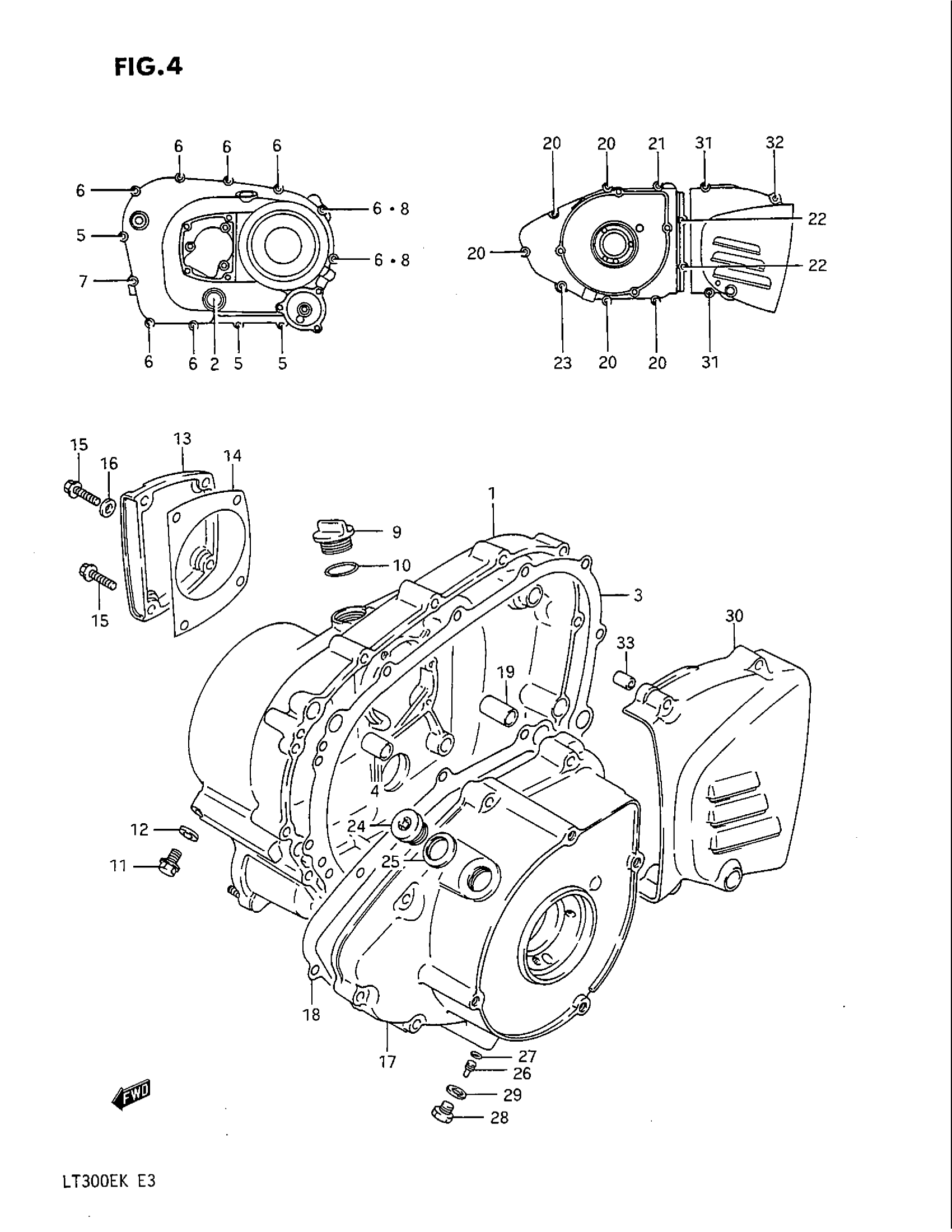

Suzuki LT300E (1989) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-41B00

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET,CL COVER This part replaces 11482-24501.

11482-24501-H17

Unavailable

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

$2.73

6

BOLT This part replaces 01547-06404.

01547-0640B

$2.75

7

BOLT This part replaces 01547-06555.

01547-0655B

$2.75

8

GASKET

09168-06023

$2.35

9

PLUG (20X10) This part replaces 09259-20013.

09259-20019

$11.52

10

O RING

09280-17003

$1.65

11

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

12

GASKET

09168-06023

$2.35

13

CAP, CLUTCH RELEASE ADJUST

11387-41B00

Unavailable

14

GASKET,ADJUSTER This part replaces 11495-24501.

11495-24501-H17

$5.09

15

..BOLT This part replaces 01547-06205.

01547-0620B

$2.45

16

GASKET

09168-06023

$2.35

17

COVER, GENERATOR

11351-41B02

Unavailable

18

GASKET,GENERATO This part replaces 11483-24502.

11483-24502-H17

Unavailable

19

PIN

09206-13004

$2.40

20

BOLT This part replaces 01547-06304.

01547-06307

$2.03

21

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

$2.73

22

BOLT (6X35)

01547-06357

$2.03

23

BOLT This part replaces 01547-06454.

01547-0645B

$2.73

24

PLUG, T.D.C

09248-18001

Unavailable

25

GASKET, OIL FILLER PLUG This part replaces 09168-18005.

09168-18003

$1.49

26

JET, OIL GALLERY

09493-80007

Unavailable

27

O RING

09280-04004

$1.91

28

PLUG, OIL GALLERY

09247-08001

Unavailable

29

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

30

COVER, ENGINE SPROCKET

11361-41B10

Unavailable

31

BOLT This part replaces 01547-06404.

01547-0640B

$2.75

32

BOLT, WATER PUMP This part replaces 01547-06354.

01547-0635B

$2.73

33

PIN

04211-09129

$1.65
