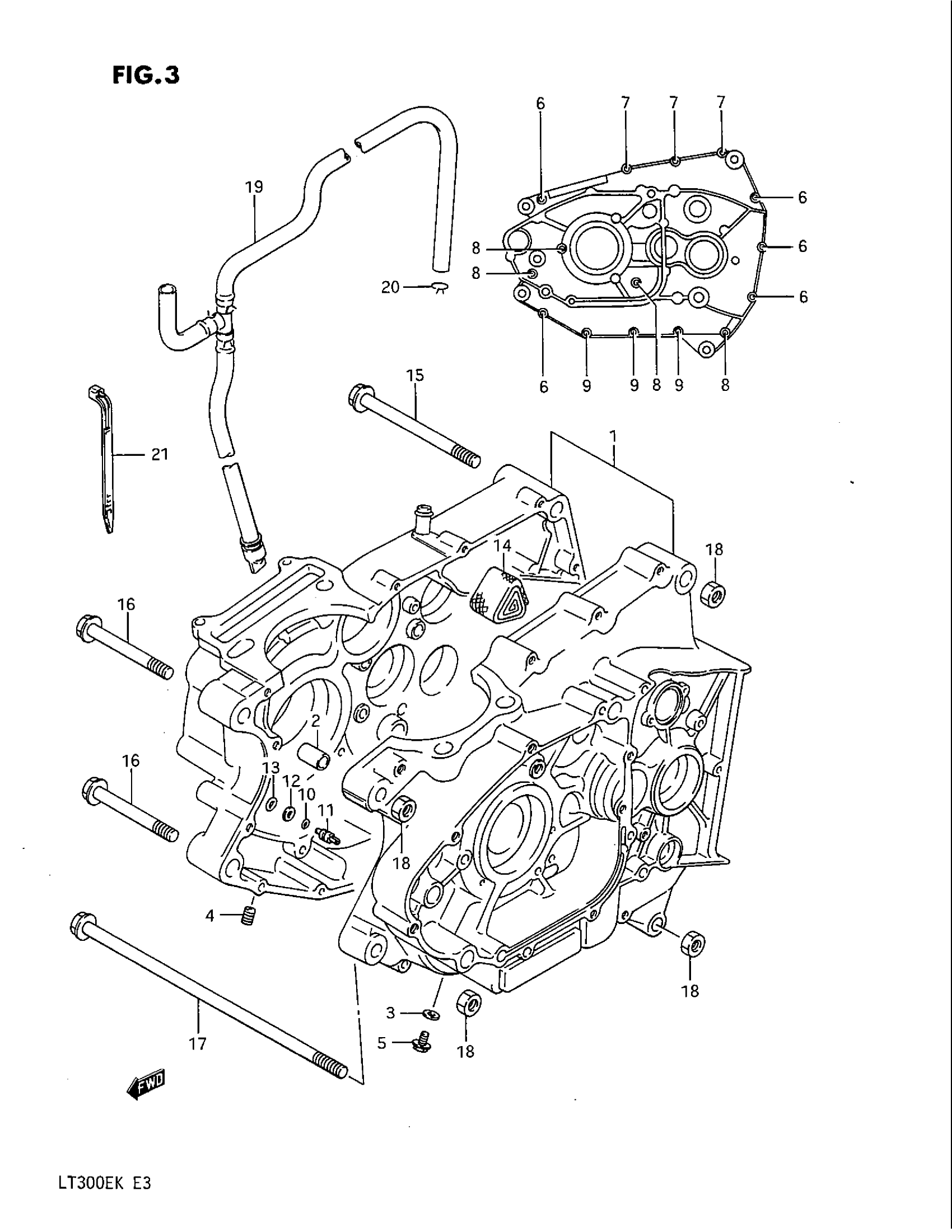

Suzuki LT300E (1989) CRANKCASE Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 13 This part replaces 11300-24854.

11300-24855

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

GASKET, OIL GALLERY PLUG

09168-06023

$2.35

4

NO DESCRIPTION AVAILABLE This part replaces 09246-05001.

09246-04001

Unavailable

5

BOLT This part replaces 01517-06108.

01550-06107

$2.80

6

BOLT

01547-06357

$2.03

7

BOLT

01547-06457

$2.32

8

BOLT

01547-06607

$3.18

9

BOLT,CARB This part replaces 01547-06757.

09103-06522

$2.95

10

O RING, OIL GALLERY JET

09280-04004

$1.91

11

JET, OIL GALLERY

09493-32006

$16.87

12

WASHER

08212-05121

Unavailable

13

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

14

NO DESCRIPTION AVAILABLE This part replaces 11186-41B00.

11186-41B01

Unavailable

15

BOLT (10X120)

09103-10052

Unavailable

16

BOLT (10X80) This part replaces 09103-10098.

09103-10240

$6.28

17

BOLT (10X305)

09103-10153

$23.93

18

NUT

09159-10047

$9.41

19

NO DESCRIPTION AVAILABLE | MODEL J; Includes Item(s) 20 This part replaces 13850-41B10.

13850-41B11

Unavailable

20

CLIP | MODEL J

09401-14301

$2.35

21

CLAMP | MODEL J

09407-18402

$2.19
