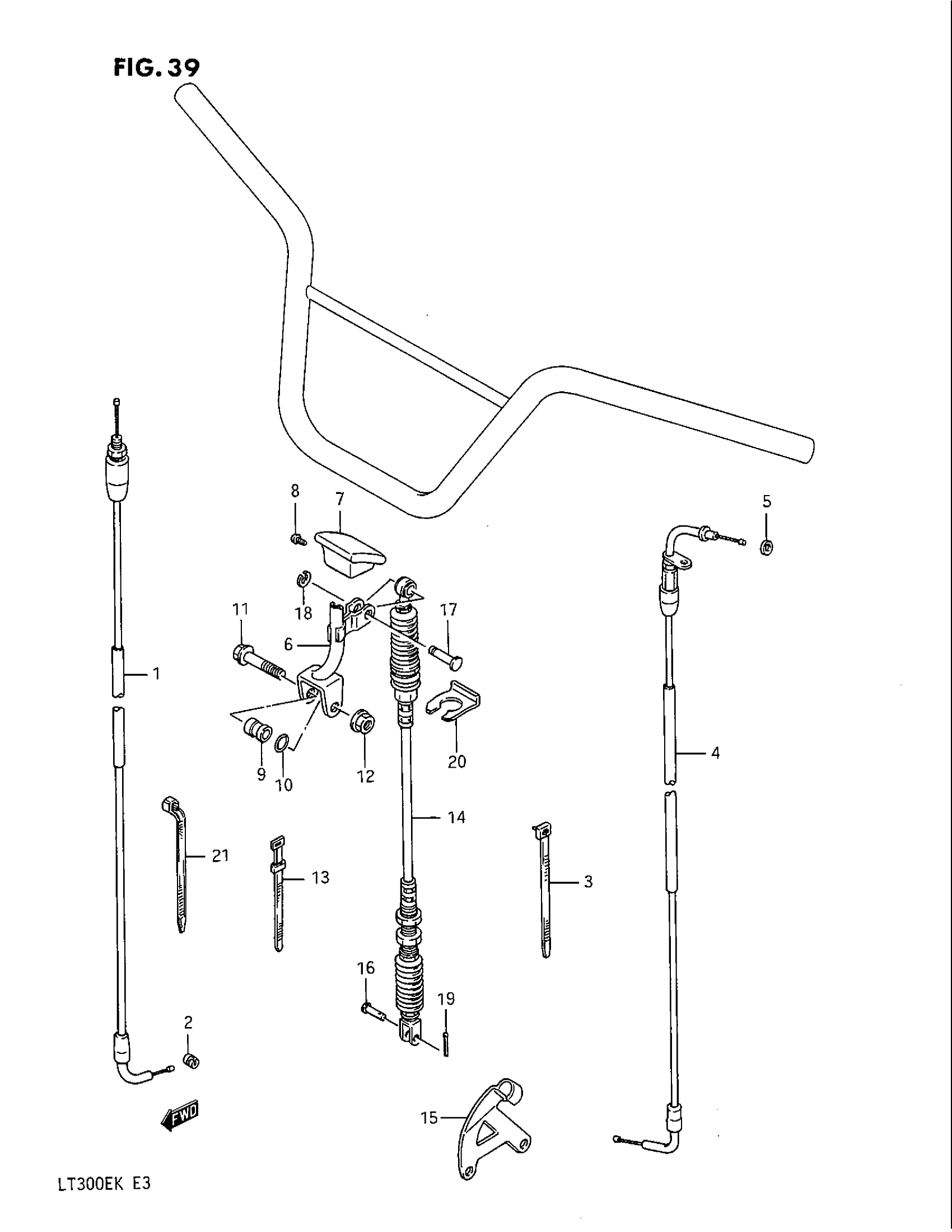

Suzuki LT300E (1989) CONTROL CABLE Diagram

#

Description
Price

1

CABLE,THROTTLE This part replaces 58300-41B10.

58300-41X00

Unavailable

2

PIN, THROTTLE CABLE (L:6) | MODEL H/J

58631-07010

$3.56

2

PIN, THROTTLE CABLE (L:7) | MODEL K

58631-22A00

Unavailable

3

CLAMP, THROTTLE CABLE

09407-18402

$2.19

4

CABLE,STARTER This part replaces 58410-41B00.

58410-41X00

Unavailable

5

WASHER This part replaces 09161-05015.

09320-06503

$2.63

6

LEVER, REVERSE

57970-41B01

Unavailable

7

KNOB,REVERSE CA This part replaces 58860-19B00-30D.

58860-19B01-30D

$9.10

8

SCREW This part replaces 02142-04085.

02142-0408B

$1.70

9

SPACER, REVERSE LEVER

09180-08139

Unavailable

10

O RING, REVERSE LEVER

09280-12001

$2.90

11

BOLT, LEVER PIVOT

09103-08004

$2.53

12

NUT This part replaces 09159-08088.

09159-08083

$3.83

13

BAND

09407-12402

$3.04

14

CABLE, REVERSE | MODEL H/J This part replaces 58840-41B00.

58840-41B01

Unavailable

14

CABLE, REVERSE | MODEL K

58840-41B01

Unavailable

15

BRACKET, REVERSE CABLE

58871-41B01

Unavailable

16

PIN, REVERSE CABLE REAR

09200-05001

$1.65

17

PIN, REVERSE CABLE FRONT

09208-08008

$2.53

18

CIRCLIP This part replaces 08332-11066.

08332-1106A

$1.49

19

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

20

CLIP, REVERSE CABLE

09383-19003

$4.68

21

CLAMP, CABLE | MODEL H/J

09407-14403

$2.26
