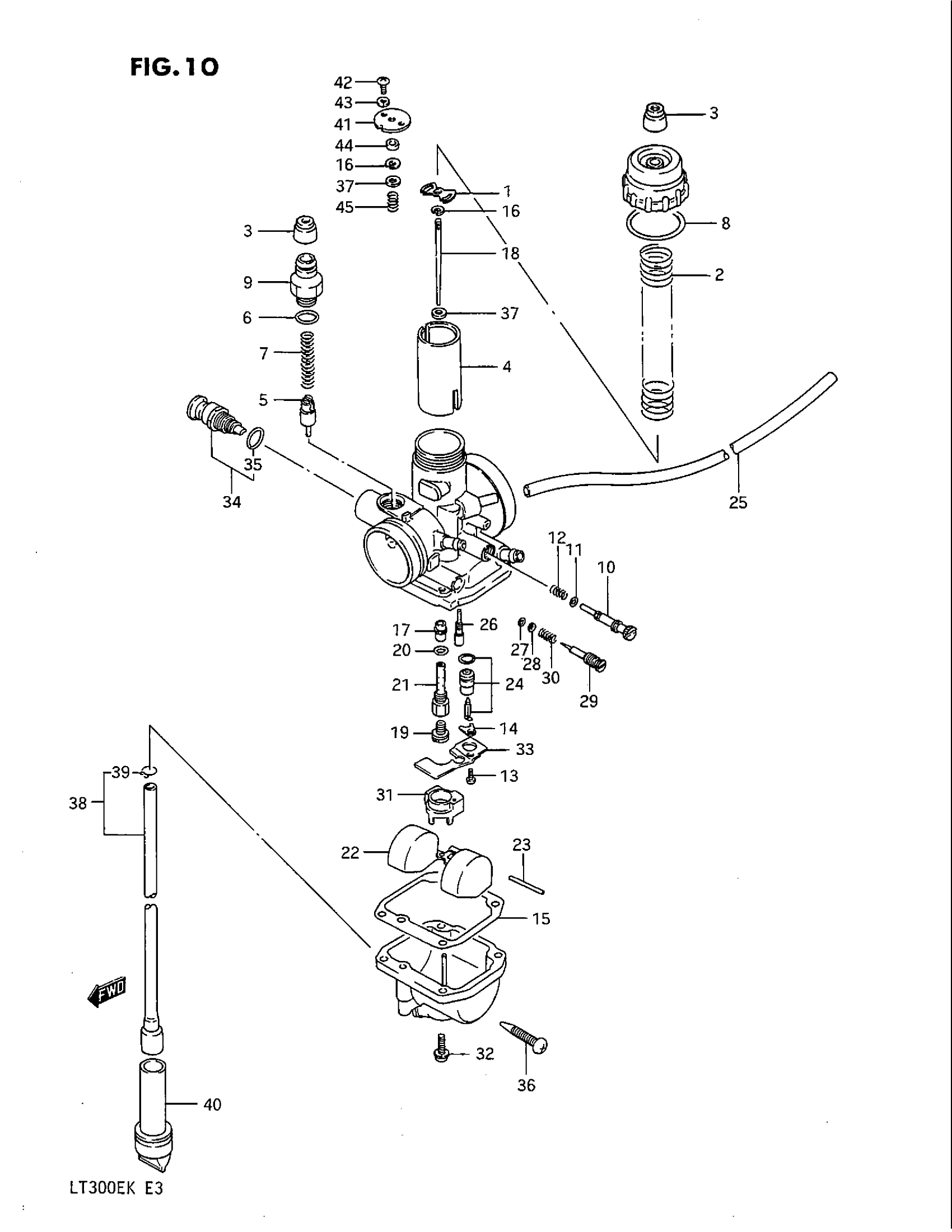

Suzuki LT300E (1989) CARBURETOR Diagram

#

Description
Price

NO DESCRIPTION AVAILABLE | MODEL H ~E.NO.105666 This part replaces 13200-41B00.

13200-41B31

Unavailable

NO DESCRIPTION AVAILABLE | MODEL H E.NO.105667~ This part replaces 13200-41B01.

13200-41B31

Unavailable

NO DESCRIPTION AVAILABLE | MODEL J ~E.NO.111935 This part replaces 13200-41B21.

13200-41B31

Unavailable

NO DESCRIPTION AVAILABLE | MODEL J E.NO.111936~MODEL K; Includes Item(s) 1 - 45 This part replaces 13200-41B30.

13200-41B31

Unavailable

1

SEAT, SPRING | MODEL H/MODEL J ~E.NO.111935

13581-09210

$6.55

2

SPRING, THROTTLE | MODEL H/MODEL J ~E.NO.111935

13573-41B00

Unavailable

2

SPRING, THROTTLE | MODEL J E.NO.111936~/MODEL K

13573-22A00

Unavailable

3

.CAP This part replaces 13681-04010.

13681-04011

$4.93

4

VALVE, PISTON (CA:1.5) | MODEL H

13551-41B00

$26.13

4

VALVE, PISTON (CA:1.5) | MODEL J ~E.NO.111935

13551-22A00

$29.78

4

VALVE, PISTON (CA:1.5) | MODEL J E.NO.111936~/MODEL K

13551-41B10

Unavailable

5

PLUNGER

13411-24500

$22.41

6

O RING

13278-02330

$2.82

7

SPRING

13417-37200

$3.56

8

O RING This part replaces 13246-22A00.

13246-22A01

Unavailable

9

CAP, PLUNGER

13418-43200

$10.48

10

SCREW, STOP

13267-24500

$10.55

11

O RING

13295-33010

$4.48

12

SPRING

13268-35010

$4.48

13

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

14

PLATE

13373-46710

$6.17

15

GASKET

13251-05320

$7.69

16

E RING

13394-10010

$5.45

17

JET, NEEDLE (N-5) | MODEL H/MODEL J ~E.NO.111935

09494-00566

Unavailable

17

JET, NEEDLE (N-7) | MODEL J E.NO.111936~/MODEL K

09494-00591

Unavailable

18

NEEDLE, JET (5DM1-3) | MODEL H/MODEL J ~E.NO.111935

13383-41B01

Unavailable

18

NEEDLE, JET (5DM2-3) | MODEL J E.NO.111936~/MODEL K

13383-41B10

Unavailable

19

JET, MAIN (112.5)

09491-22015

$9.69

20

.O RING This part replaces 13246-43010.

13246-43011

$4.34

21

PIPE, BLEEDER

13385-41B00

$35.20

22

FLOAT

13252-22A00

$36.72

23

.PIN, FLOAT

13254-01010

$3.62

24

VALVE ASSY, NEEDLE

13370-22A00

Unavailable

25

HOSE,5X10X600 This part replaces 13684-22A00.

44421-13ER0

$10.06

26

JET, PILOT (17.5) | MODEL H ~E.NO.105666

09492-17009

Unavailable

26

JET, PILOT (20) | MODEL H E.NO.105667~MODEL J/K

09492-20009

$14.85

27

O-RING This part replaces 13278-44080.

13295-29901

$4.34

28

WASHER This part replaces 13277-44080.

13291-29900

$1.98

29

SCREW, PILOT (2 7/8) | MODEL H ~E.NO.105666MODEL H E.NO.105667~MODEL J ~E.NO.111935MODEL J E.NO.111936~/MODEL K This part replaces 13279-47080.

13279-47070

$13.36

30

.SPRING (NT:45)

13268-47070

$4.34

31

RING

13331-18B00

Unavailable

32

SCREW

13601-04148

$2.81

33

PLATE

13259-18900

$7.53

34

PLUNGER ASSY, STARTER

13439-18911

$51.93

35

O RING

13278-02330

$2.82

36

SCREW

13247-24500

Unavailable

37

WASHER

13382-47010

$3.56

38

VALVE ASSY, CHECK

13520-41B00

Unavailable

39

CLIP

13671-05A40

$3.71

40

CAP,OVER FLOW This part replaces 13680-19B01.

13680-19B02

$13.57

41

SEAT, SPRING | MODEL J E.NO.111936~/MODEL K

13373-44A00

Unavailable

42

SCREW | MODEL J E.NO.111936~/MODEL K This part replaces 02112-03086.

02112-0308A

$1.80

43

LOCK WASHER | MODEL J E.NO.111936~/MODEL K This part replaces 08321-21036.

08321-2103B

$1.49

44

RING | MODEL J E.NO.111936~/MODEL K

13387-47010

$7.22

45

SPRING | MODEL J E.NO.111936~/MODEL K

13388-47010

$6.91
