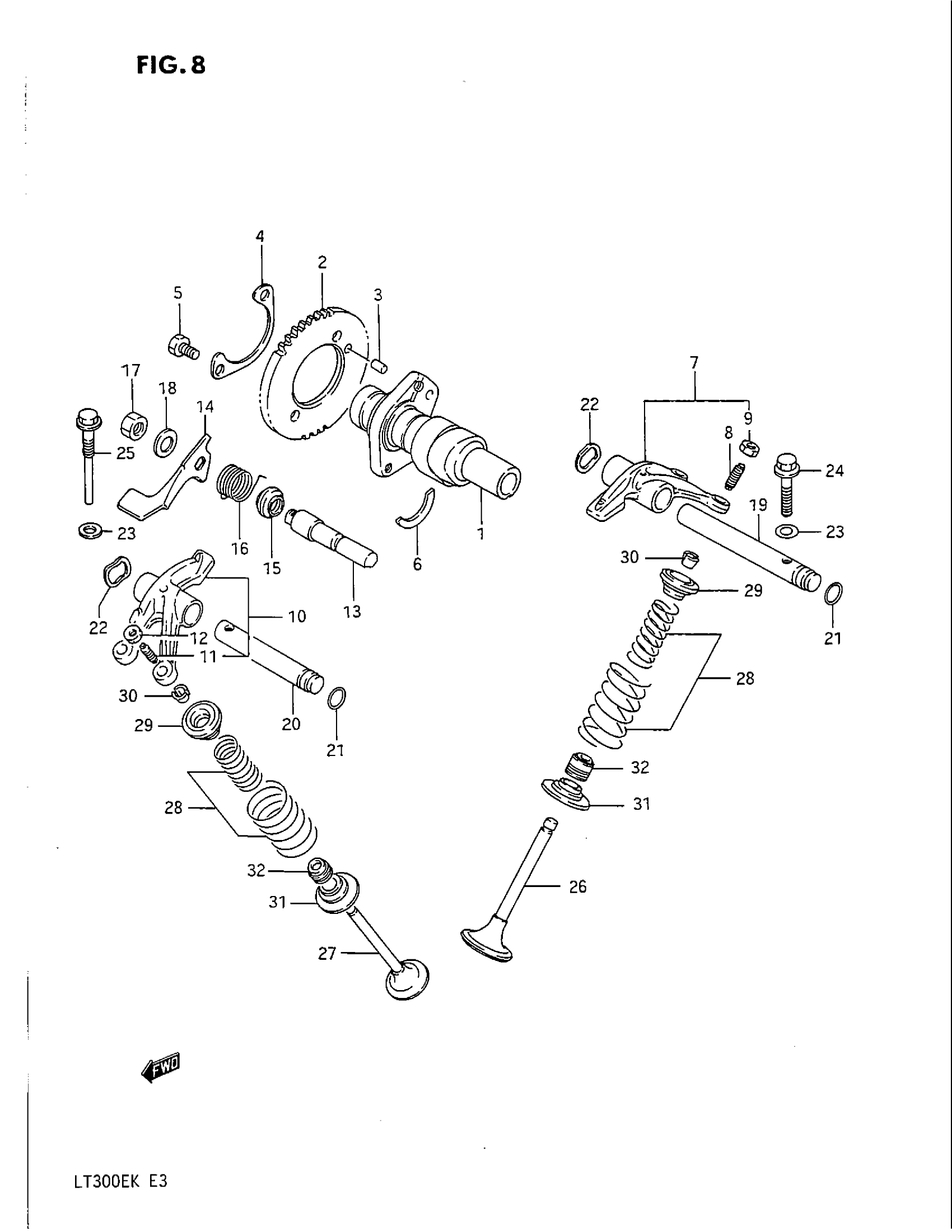

Suzuki LT300E (1989) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT

12711-24503

Unavailable

2

SPROCKET (NT:42)

12741-37400

Unavailable

3

PIN

04221-05109

$1.49

4

WASHER This part replaces 12747-44000.

12747-44001

$2.50

5

BOLT

09111-06027

$1.72

6

C RING

09390-25003

$2.48

7

ARM, VALVE ROCKER INTAKE | Includes Item(s) 8 - 9 This part replaces 12840-24501.

12840-38201

Unavailable

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.94

10

ARM, VALVE ROCKER EXHAUST | Includes Item(s) 11 - 12 This part replaces 12850-24501.

12850-38201

Unavailable

11

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

12

.NUT,TAPPET ADJUSTING This part replaces 12843-04A00.

12843-27A00

$2.94

13

SHAFT, DECOMP

12941-37103

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 12942-41B00.

12942-41B03

Unavailable

15

SEAL, OIL

09282-10014

$6.70

16

SPRING

09448-17025

Unavailable

17

NUT This part replaces 08310-22088.

08310-00087

$2.13

18

WASHER This part replaces 08322-11088.

08322-01087

$2.13

19

SHAFT, ROCKER ARM IN | L:91.5

12861-38200

Unavailable

20

SHAFT, ROCKER ARM EX | L:76

12871-38200

$29.25

21

.O RING (D:1.9,ID:8.6)

09280-09005

$3.70

22

WASHER

09164-12018

$1.49

23

GASKET

09168-06023

$2.35

24

BOLT This part replaces 01517-06307.

01550-06307

$2.69

25

BOLT, EXHAUST SHAFT (L:68.7)

12872-41B00

Unavailable

26

VALVE, INTAKE (OD:26)

12911-38200

$43.92

27

VALVE, EXHAUST This part replaces 12912-38200.

12912-38201

$76.35

28

SPRING SET, VALVE

12920-24500

Unavailable

29

RETAINER, VALVE SPRING This part replaces 12931-49200.

12931-49201

$6.91

30

COTTER, VALVE

12932-49200

$2.28

31

SEAT, VALVE SPRING This part replaces 12933-49200.

12933-49201

$5.84

32

OIL SEAL

09289-05014

Unavailable
