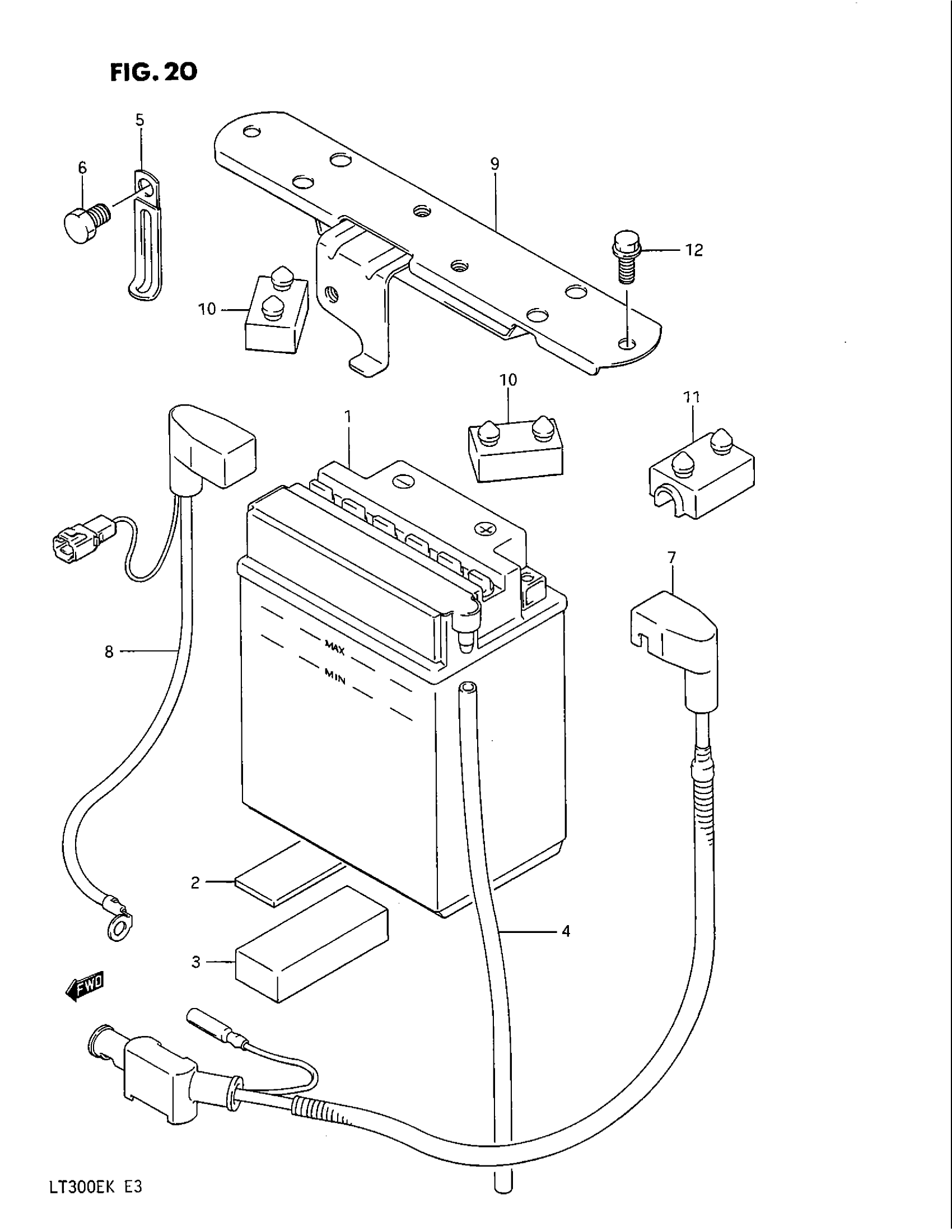

Suzuki LT300E (1989) BATTERY Diagram

#

Description
Price

1

BATTERY ASSY (12V,14AH) This part replaces 33610-24560.

33610-24500

$82.47

1

BATTERY ASSY (12V,20AH) | OPT This part replaces 33610-24550.

33610-24580

Unavailable

2

CUSHION, BATTERY (30X130X3) This part replaces 33652-41B00.

33652-19B00

$6.03

3

CUSHION, BATTERY | OPT

33652-41B10

Unavailable

4

HOSE,BATTERY EX | L:600->500 This part replaces 33680-31003.

33680-16A11

$6.78

5

CLAMP This part replaces 09404-08402.

09404-08420

$3.16

6

BOLT This part replaces 01107-08127.

01500-08127

$2.62

7

WIRE, BATTERY (+) LEAD

33820-41B00

Unavailable

7

WIRE, BATTERY (+) LEAD | OPT

33820-41B10

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 33860-41B00.

33860-41B01

Unavailable

9

COVER, BATTERY

41560-41B00

Unavailable

9

COVER, BATTERY | OPT

41560-41B10

Unavailable

10

CUSHION

09321-08006

$2.90

11

CUSHION, LH | OPT

09321-08021

Unavailable

12

BOLT This part replaces 01517-06167.

01550-06167

$2.30
