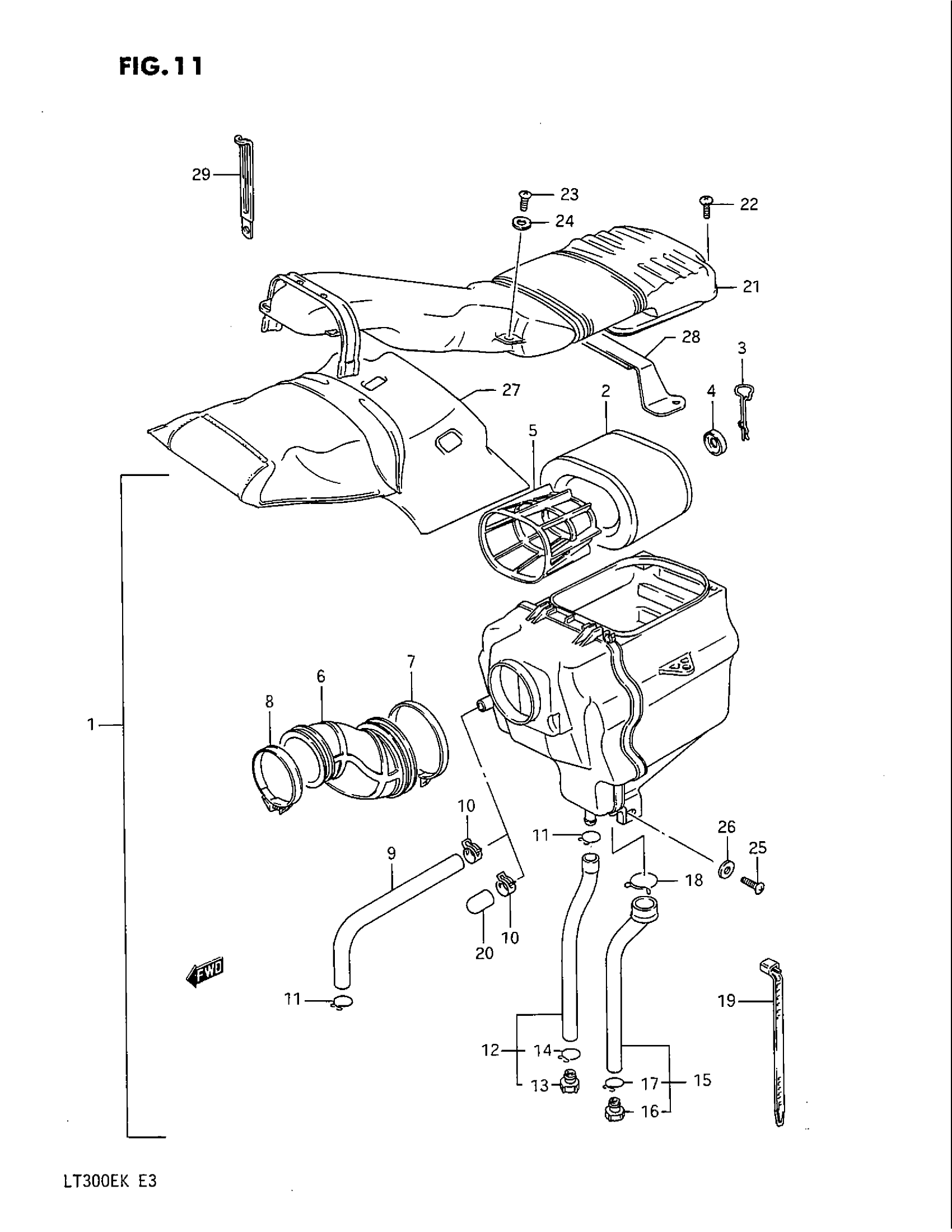

Suzuki LT300E (1989) AIR CLEANER Diagram

#

Description
Price

1

CASE ASSY, AIR CLEANER | MODEL H/K

13702-41B00

Unavailable

1

CASE ASSY, AIR CLEANER | MODEL J; Includes Item(s) 2 - 20

13702-41B10

Unavailable

2

FILTER

13780-24500

Unavailable

3

SNAP PIN

13823-20400

$3.00

4

WASHER

13796-20400

$2.99

5

HOLDER

13791-24500

Unavailable

6

HOSE, OUTLET

13881-24500

Unavailable

7

CLAMP This part replaces 09402-72208.

09402-72203

$6.94

8

CLAMP This part replaces 09402-52207.

09402-52208

$5.36

9

TUBE, BREATHER | MODEL H/K

13853-41B00

Unavailable

10

CLIP This part replaces 13824-43400.

09401-14404

$2.28

11

CLIP | MODEL H/KMODEL J

09401-14301

$2.35

12

TUBE, DRAIN

13874-41B00

Unavailable

13

PLUG, DRAIN

13877-00190

$5.32

14

CLIP

09401-14301

$2.35

15

TUBE, DRAIN

13870-41B00

Unavailable

16

PLUG, DRAIN

13877-00190

$5.32

17

CLIP

09401-14301

$2.35

18

CLIP

13825-41B00

Unavailable

19

BAND

13826-01400

Unavailable

20

.PLUG | MODEL J

13859-41B10

$7.38

21

CASE, INLET

13740-41B00

Unavailable

22

SCREW, REAR This part replaces 02142-05204.

02142-0520B

$1.78

23

SCREW This part replaces 02112-06128.

02112-06127

$1.84

24

WASHER

09160-06019

$1.49

25

SCREW

02112-06167

$1.49

26

WASHER This part replaces 09160-06007.

09160-06084

$1.78

27

CAP, AIR CLEANER

13860-41B00

Unavailable

28

STAY, AIR CLEANER

13760-41B00

Unavailable

29

CLAMP(L:80) This part replaces 09404-06418.

09404-06036

$1.74
