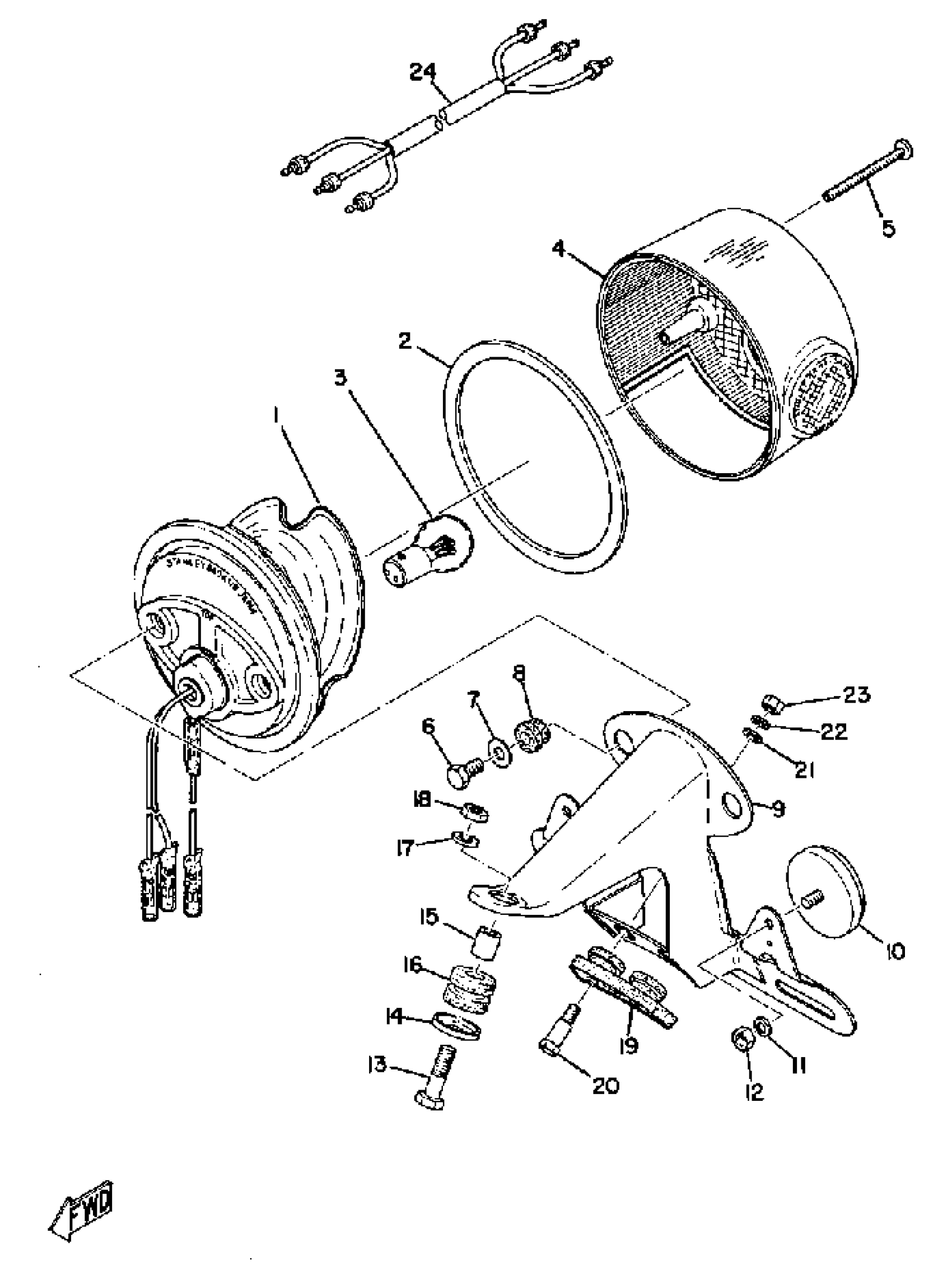

Yamaha LT2M (LT2M) LT2M 1972 TAIL LAMP Diagram

#

Description
Price

0

TAILLIGHT UNIT ASSY

275-84510-61-00

Unavailable

1

BASE, TAILLIGHT

275-84511-61-00

Unavailable

2

. GASKET, LENS

275-84523-60-00

Unavailable

3

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

4

LENS, TAILLIGHT

275-84521-60-00

Unavailable

5

SCREW, PAN HEAD

98507-04050-00

$3.02

6

SCREW

479-84526-00-00

Unavailable

7

WASHER, SPECIAL

2H7-84754-00-00

$10.99

8

. DAMPER

275-84527-60-00

Unavailable

9

BRACKET, LICENSE

444-84751-60-20

Unavailable

10

REFLECTOR, FRONT 1

278-85111-00-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

12

NUT, HEXAGON (663)

95380-05600-00

$8.49

13

BOLT, HEXAGON

97017-06025-00

$4.24

14

WASHER

90209-06012-00

$5.60

15

COLLAR (J10)

90387-06026-00

Unavailable

16

GROMMET 839774310000

90480-14023-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

NUT, HEXAGON

95380-06600-00

Unavailable

19

DAMPER

214-84553-01-00

Unavailable

20

BOLT 168217380000

90109-06017-00

Unavailable

21

WASHER, PLAIN

92990-08200-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

CORD, TAILLIGHT

277-84517-60-00

Unavailable
