1972 Yamaha LT2M (LT2M) Seat Diagram

← All diagrams

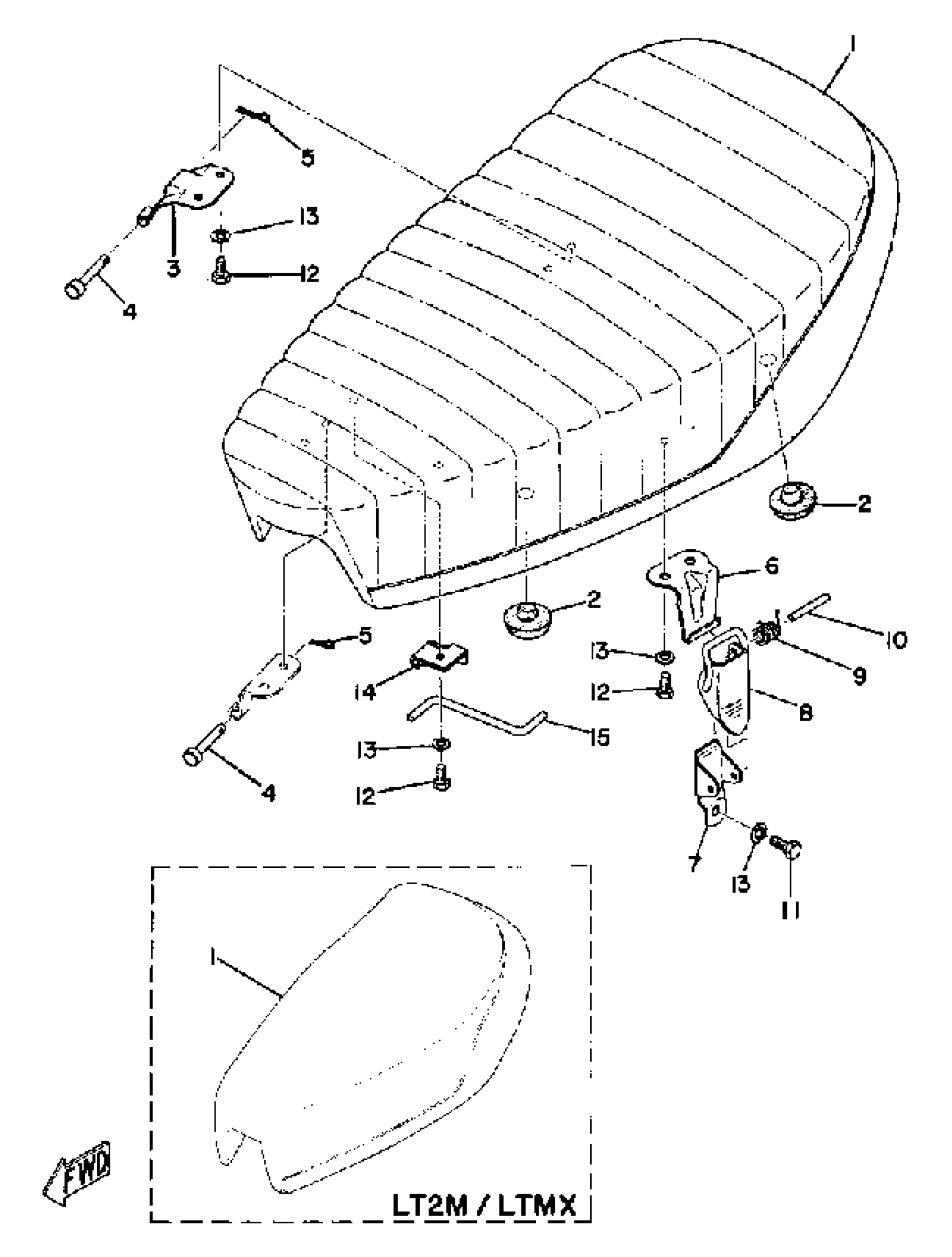

Find the part on the Seat diagram for your 1972 Yamaha LT2M (LT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha LT2M (LT2M) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEMI-DBL SEAT ASSY

335-24770-01-00

1
Out of stock

1

SINGLE SEAT ASSY

382-24710-02-00

1
Out of stock

2

PAD, SEAT

1L9-24741-00-00

1

$8.91

In stock

3

HINGE, SEAT

276-24769-00-33

1
Out of stock

4

PIN, CLEVIS

91701-05055-00

1
Out of stock

5

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

6

BRACKET, SEAT

214-24728-00-33

1
Out of stock

7

BRACKET, SEAT

214-24718-00-00

1
Out of stock

8

LEVER, SEAT

214-24776-00-33

1
Out of stock

9

. SPRING, TORSION

90508-10012-00

1
Out of stock

10

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

11

BOLT(3JP)

97017-06010-00

1

$2.62

In stock

12

BOLT (661)

97013-06012-00

1

$4.71

In stock

13

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

14

BRACKET, SEAT

278-24748-00-00

1
Out of stock

15

STOPPER

276-24768-00-00

1
Out of stock
