1972 Yamaha LT2M (LT2M) Frame Diagram

← All diagrams

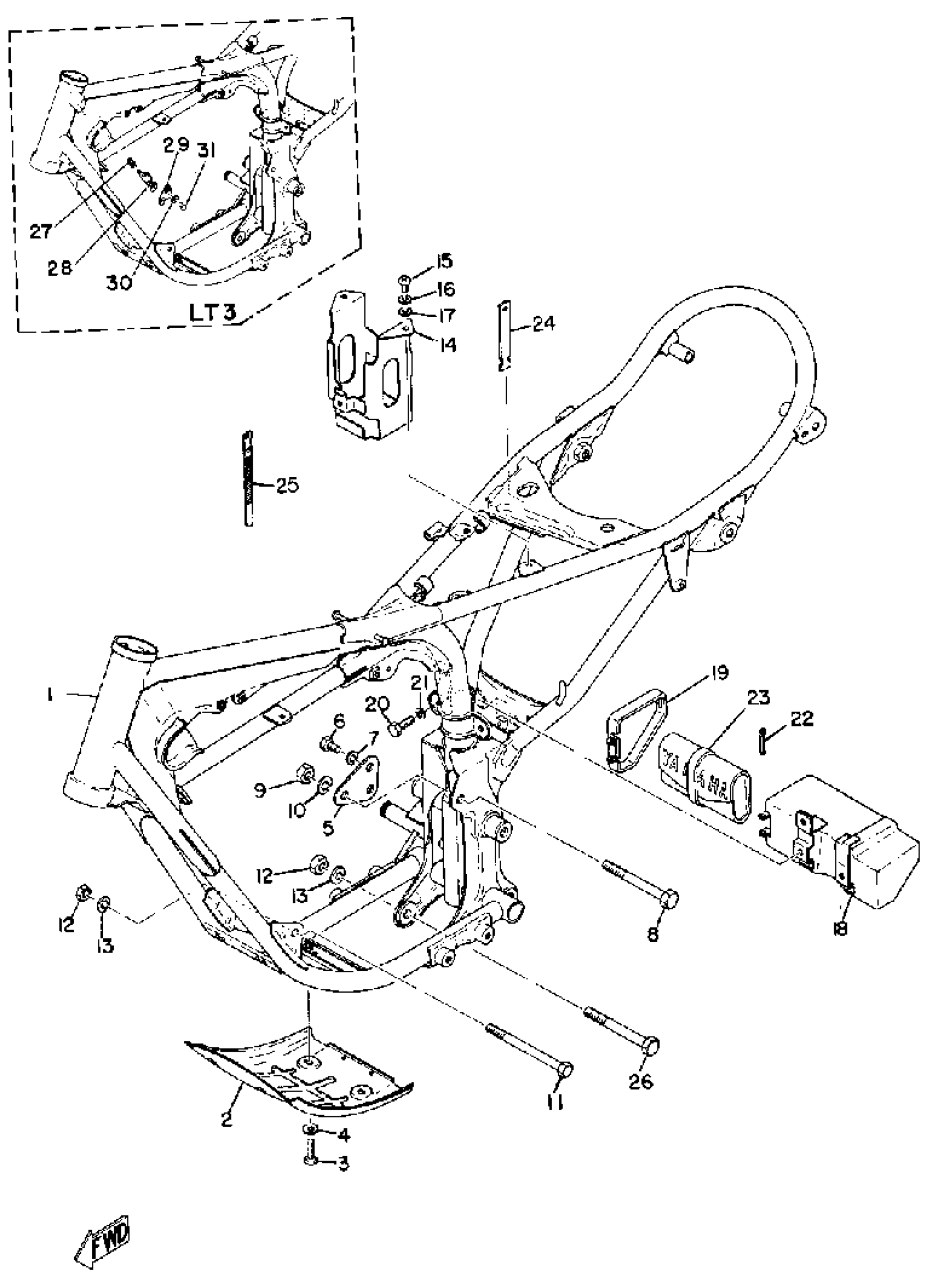

Find the part on the Frame diagram for your 1972 Yamaha LT2M (LT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha LT2M (LT2M) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

305-21110-00-33

1
Out of stock

1

FRAME

335-21110-00-33

1
Out of stock

2

PROTECTOR, ENGINE

248-21471-00-33

1
Out of stock

3

BOLT (661)

97013-06012-00

1

$4.71

In stock

3

BOLT(3DM)

97024-06020-00

1

$6.17

In stock

4

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

5

STAY, ENGINE 2

248-21315-00-00

1
Out of stock

6

BOLT(JA9)

90101-08691-00

1

$4.65

In stock

7

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

BOLT,HEXAGON

97027-10095-00

1
Out of stock

9

NUT(3BM)

95314-10600-00

1

$1.74

In stock

10

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

11

BOLT, FLANGE(2UJ)

95814-08110-00

1

$5.66

In stock

12

NUT(6L2)

95333-08600-00

1

$3.20

In stock

12

NUT, U

95617-08100-00

1

$6.78

In stock

13

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

14

BOX, BATTERY

304-21240-00-33

1
Out of stock

15

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

16

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

18

BOX, TOOL

305-21170-00-33

1
Out of stock

19

CAP, TOOL BOX

276-21399-00-33

1
Out of stock

20

BOLT(3JP)

97017-06010-00

—

$2.62

In stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

23

TOOL KIT

315-W2810-10-00

1
Out of stock

24

DAMPER, MUFFLER

276-14747-00-00

1
Out of stock

25

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

26

BOLT, HEXAGON

97321-10090-00

1
Out of stock

27

SPRING, CONICAL

90502-08005-00

1
Out of stock

28

STEERING LOCK ASSY

341-23408-01-00

1
Out of stock

29

CAP, HANDLE LOCK

134-23484-10-00

—

$8.70

In stock

30

WASHER, WAVE

90206-04003-00

1
Out of stock

31

RIVET 214234830000

90269-04003-00

—

$6.88

In stock
