1972 Yamaha LT2M (LT2M) Head Lamp Speedometer Diagram

← All diagrams

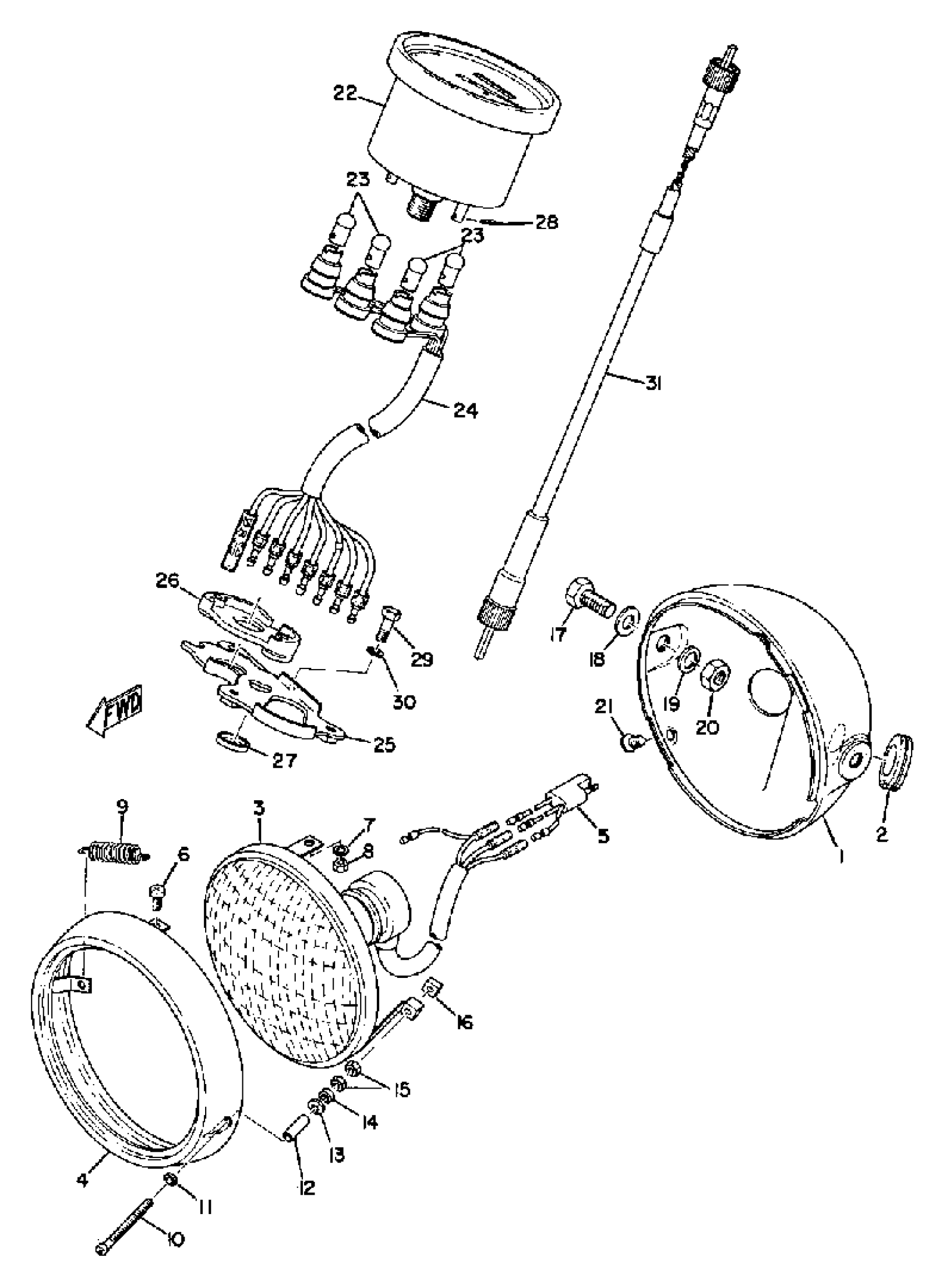

Find the part on the Head Lamp Speedometer diagram for your 1972 Yamaha LT2M (LT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha LT2M (LT2M) Head Lamp Speedometer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSY, HEADLIGHT

277-84130-60-64

1
Out of stock

2

GROMMET (L)

150-84153-00-00

1

$17.41

In stock

3

. LENS ASY

277-84120-60-00

1
Out of stock

4

. RIM, HEADLIGHT

261-84315-61-00

1
Out of stock

5

CORD, HEADLIGHT

214-84159-61-00

1
Out of stock

6

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

7

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

8

NUT(6L4)

95380-04700-00

—

$5.62

In stock

9

SPRING

132-84335-60-00

1
Out of stock

10

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

11

WASHER,SPECIAL

233-84127-60-00

1

$2.78

In stock

12

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

13

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

14

. SPACER

132-84328-60-00

1
Out of stock

15

NUT(6L4)

95380-04700-00

—

$5.62

In stock

16

NUT, ADJUST

198-84334-60-00

1

$6.43

In stock

17

BOLT(JA9)

90101-08691-00

—

$4.65

In stock

18

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

19

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

20

NUT(6L2)

95333-08600-00

—

$3.20

In stock

21

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

22

SPEEDOMETER ASSY

305-83510-60-00

1
Out of stock

23

BULB,(6V3W)

122-83516-10-00

1
Out of stock

24

SOCKET CORD ASSY

305-83520-60-00

1
Out of stock

25

BRACKET, METER

276-83519-01-33

1
Out of stock

26

DAMPER

237-83523-00-00

—

$8.70

In stock

27

WASHER 214835240000

90209-05029-00

—

$6.86

In stock

28

CLIP (156-83525-00)

90468-10050-00

—

$2.31

In stock

29

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

30

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

31

SPEEDOMETER CABLE ASSY

1JN-83550-02-00

—

$36.69

In stock
