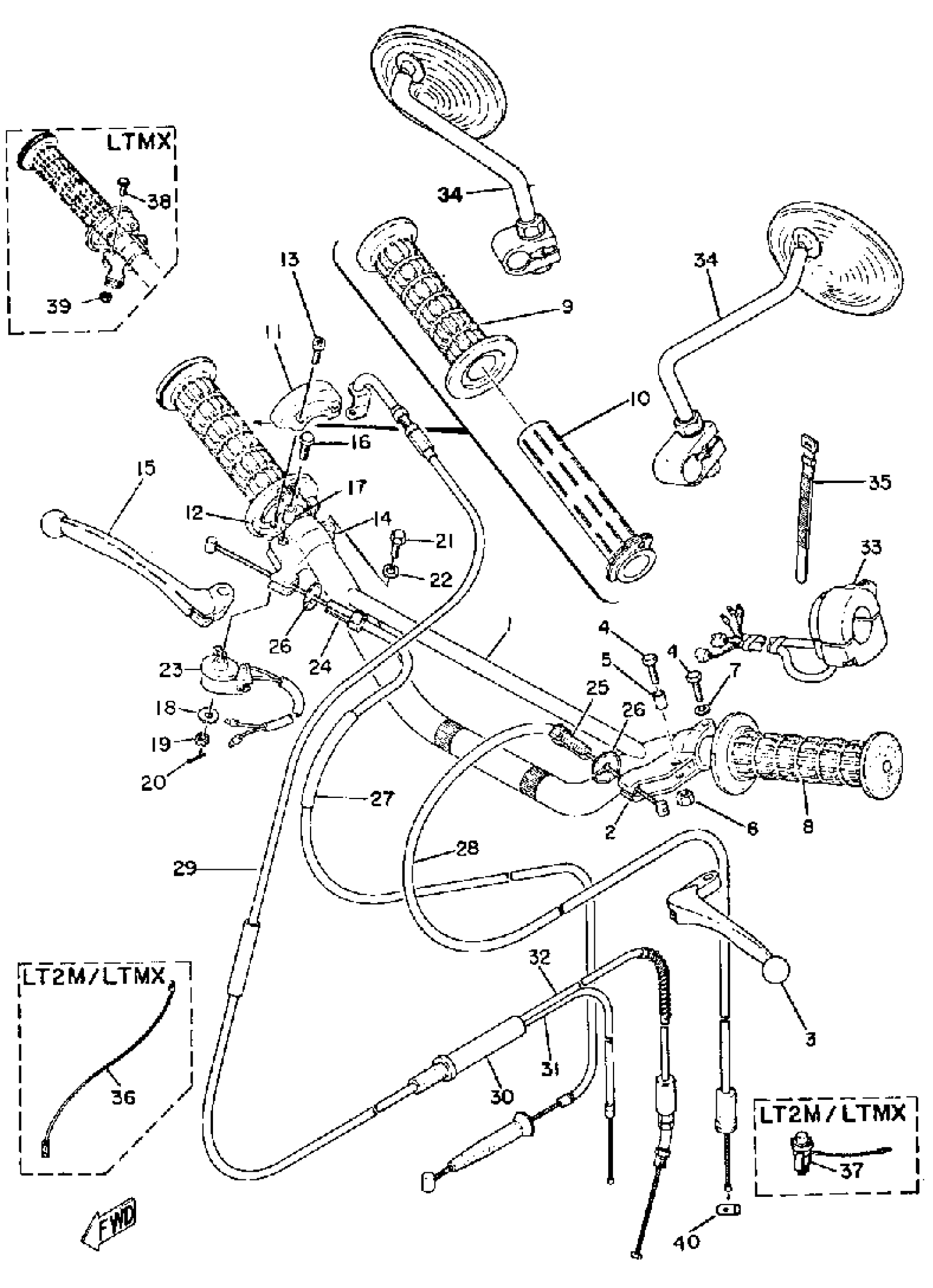

Yamaha LT2M (LT2M) LT2M 1972 HANDLE WIRE Diagram

#

Description
Price

0

LEVER HOLDER ASSY 1

214-82910-07-00

Unavailable

0

LEVER HOLDER ASSY 2

233-82920-32-00

Unavailable

1

HANDLEBAR

304-26111-40-00

Unavailable

1

HANDLEBAR

438-26111-00-00

Unavailable

2

HOLDER, LEVER (L.H)

214-82911-01-00

$56.99

3

LEVER(L.H)

214-83912-00-00

$23.99

4

BOLT(3DM)

97024-06020-00

$8.49

5

COLLAR, LEVER

214-83913-00-00

$7.99

6

NUT(650)

95380-06700-00

$8.49

7

WASHER, SPRING

92995-06100-00

Unavailable

8

GRIP LH

214-26241-00-00

Unavailable

9

GRIP (R.H)

1A0-26242-01-00

$39.99

10

TUBE, GUIDE

214-26243-00-00

$42.99

11

CAP, GRIP UPPER

214-26281-01-00

Unavailable

12

CAP, GRIP LOWER

214-26282-01-00

Unavailable

13

SCREW, PAN HEAD

98580-05020-00

Unavailable

14

HOLDER, LEVER (R.H)

233-82921-31-00

Unavailable

15

LEVER(R.H)

233-83922-30-00

Unavailable

16

. BOLT

90109-05197-00

Unavailable

17

COLLAR, LEVER

214-83913-00-00

$7.99

18

. WASHER, PLAIN

92990-05200-00

Unavailable

19

NUT, SLTED

95307-05900-00

Unavailable

20

. PIN, COTTER

91401-12018-00

Unavailable

21

BOLT(3DM)

97024-06020-00

$8.49

22

WASHER, SPRING

92995-06100-00

Unavailable

23

FRONT STOP SWITCH ASSY

232-83980-30-00

Unavailable

24

BOLT

90123-08002-00

Unavailable

25

BOLT

90123-08002-00

Unavailable

26

NUT

90179-08030-00

Unavailable

27

CABLE, BRAKE

276-26341-00-00

Unavailable

28

CABLE, CLUTCH

304-26335-00-00

Unavailable

28

WIRE, CLUTCH

497-26335-00-00

Unavailable

29

CABLE, THROTTLE 1

304-26311-00-00

Unavailable

29

CABLE, THROTTLE 1

497-26311-00-00

Unavailable

30

CONNECTOR, CABLE

214-26261-01-00

Unavailable

31

CABLE, THROTTLE 2

248-26312-00-00

Unavailable

31

CABLE, THROTTLE 2

276-26312-00-00

Unavailable

32

CABLE, PUMP

248-26321-00-00

Unavailable

33

SWITCH, HANDLE 3

233-83973-00-94

Unavailable

34

MIRROR ASSEMBLY

257-26290-00-00

Unavailable

34

MIRROR ASSY LEFT

257-26290-10-00

Unavailable

35

BAND, SWITCH CORD

437-83936-01-00

Unavailable

36

WIRE, SUB-LEAD

335-82319-00-00

Unavailable

37

SWITCH, HANDLE 1

322-83976-00-00

Unavailable

38

BOLT(3DM)

97024-06020-00

$8.49

39

NUT(650)

95380-06700-00

$8.49

40

END, WIRE

164-26363-00-00

Unavailable
