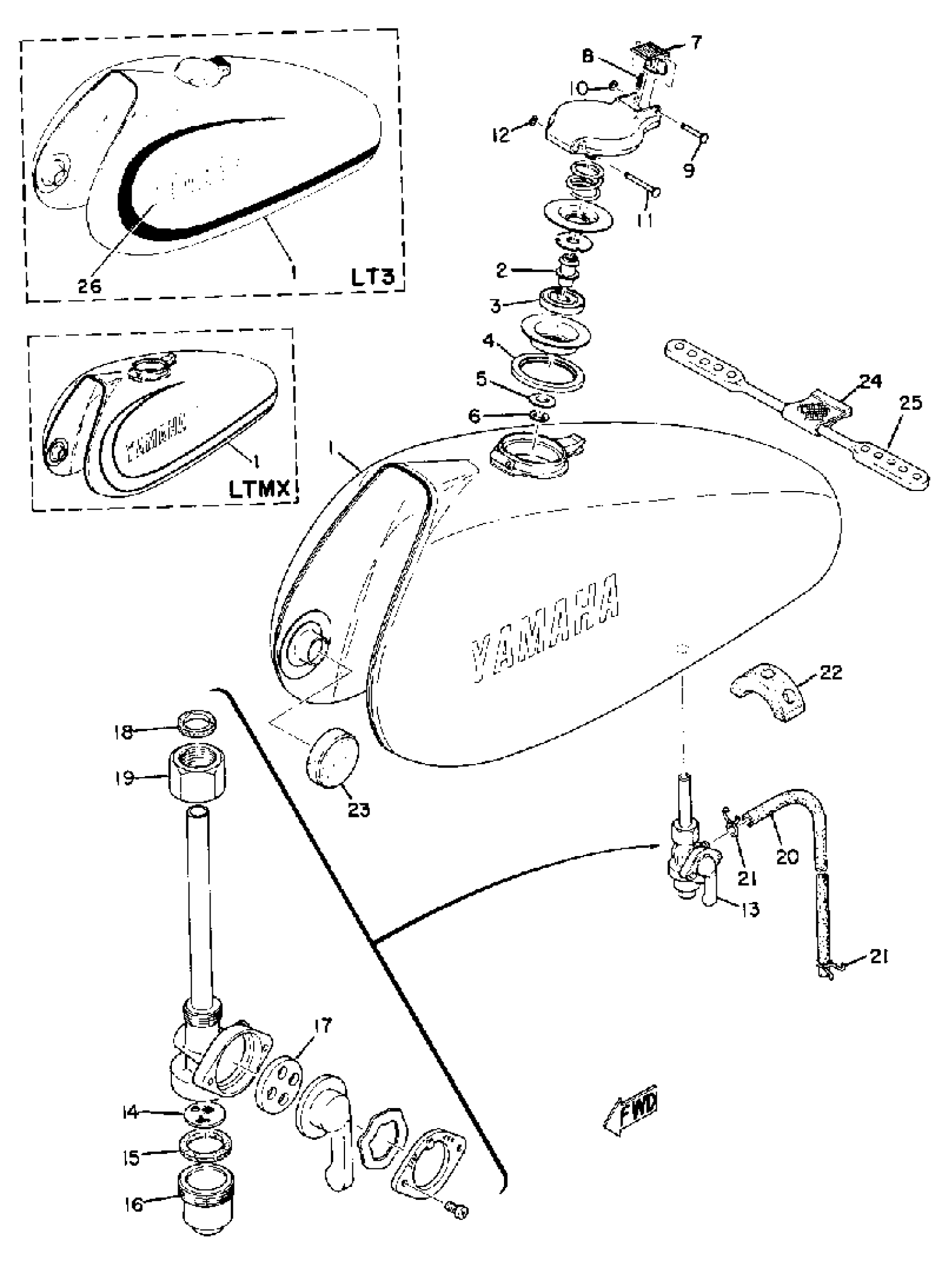

Yamaha LT2M (LT2M) LT2M 1972 FUEL TANK Diagram

#

Description
Price

0

CAP ASSY

308-24610-00-00

Unavailable

1

FUEL TANK

305-24110-00-64

Unavailable

2

GASKET, CAP 2

308-24642-00-00

Unavailable

3

GASKET, CAP 1

308-24641-00-00

Unavailable

4

. GASKET, CAP

308-24612-00-00

Unavailable

5

WASHER, PLAIN

92990-08200-00

Unavailable

6

CIRCLIP(53L)

99001-06600-00

$1.01

7

. HOOK

308-24628-00-00

Unavailable

8

SPRING, COMPRESSION

90501-07301-00

Unavailable

9

PIN, SPECIAL SHAPE

90249-03088-00

Unavailable

10

CIRCLIP (604)

93430-02001-00

$8.49

11

PIN, SPECIAL SHAPE (308-24623-00)

90249-03087-00

Unavailable

12

CIRCLIP (604)

93430-02001-00

$8.49

13

FUEL COCK ASSY 1

357-24500-20-00

$117.99

14

. NET, FILTER 2

304-24515-00-00

Unavailable

15

GASKET, FILTER

498-24522-00-00

Unavailable

16

. CUP, FILTER

1A0-24521-01-00

Unavailable

17

VALVE

137-24523-00-00

Unavailable

18

GASKET, FUEL COCK

434-24532-00-00

Unavailable

19

. NUT

132-24531-00-00

Unavailable

20

HOSE (L420)

90445-092K1-00

Unavailable

21

CLIP 101235600

90467-08003-00

Unavailable

22

DAMPER, LOCATING 3

248-24183-00-00

Unavailable

23

DAMPER, LOCATING 1

3TB-24181-00-00

Unavailable

24

BAND, TANK FITTING 1

214-24173-00-00

Unavailable

25

BAND, TANK FITTING 2

248-24173-00-00

Unavailable

26

EMBLEM, YAMAHA(4GA)

99221-00140-00

Unavailable
