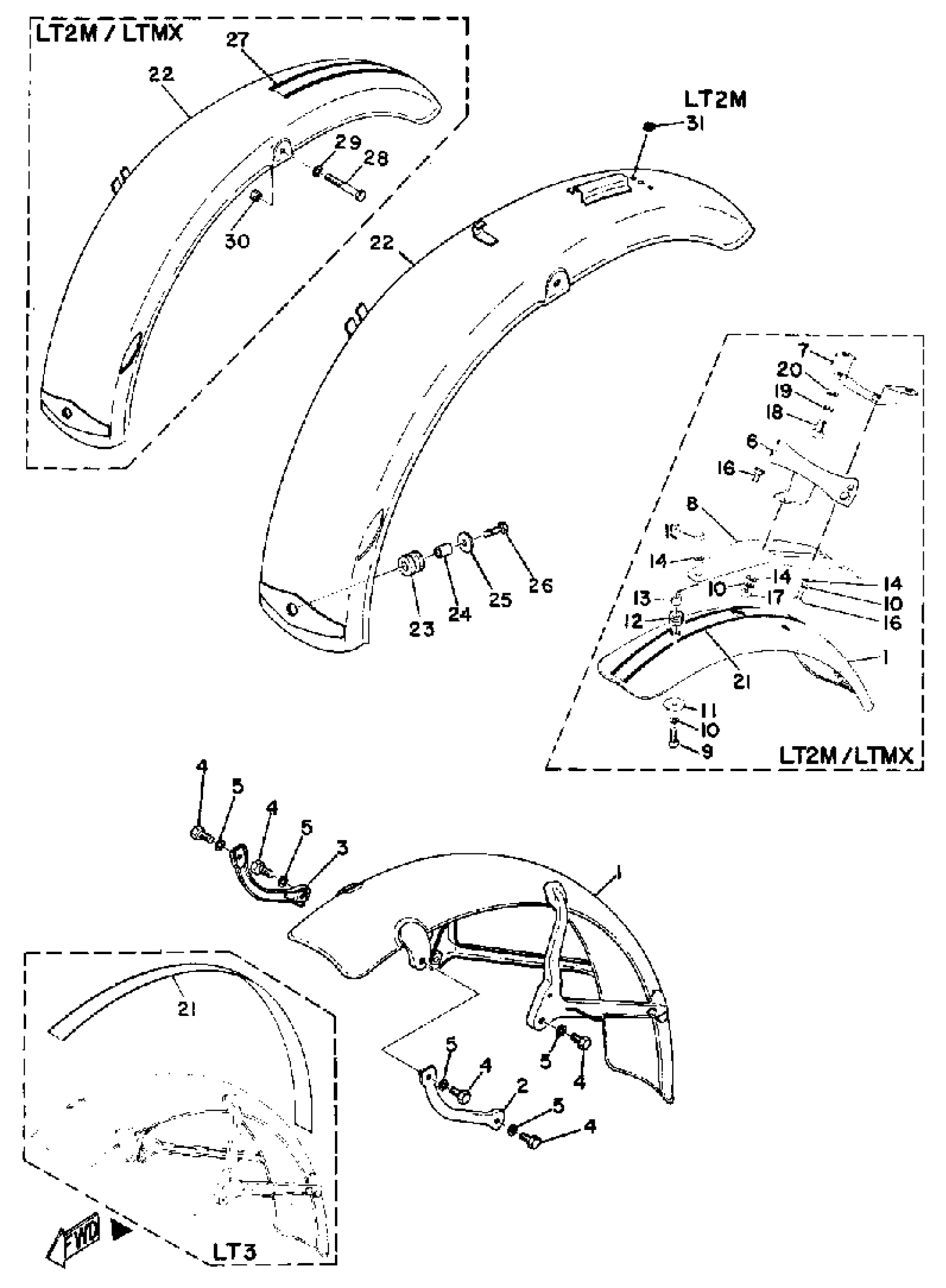

Yamaha LT2M (LT2M) LT2M 1972 FRONT FENDER REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

284-21510-00-35

Unavailable

1

FENDER, FRONT

284-21510-00-Y1

Unavailable

2

STAY, FENDER 1

276-21513-00-35

Unavailable

3

STAY, FENDER 2

276-21514-00-35

Unavailable

4

BOLT (661)

97013-06012-00

$5.60

5

WASHER, SPRING

92995-06100-00

Unavailable

6

STAY, FENDER 1

284-21513-00-Y1

Unavailable

7

STAY, FENDER 2

284-21514-00-35

Unavailable

7

STAY, FENDER 2

284-21514-00-Y1

Unavailable

8

BRACKET, FENDER

284-21512-00-35

Unavailable

8

BRACKET, FENDER

284-21512-00-Y1

Unavailable

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

WASHER, SPRING

92995-06100-00

Unavailable

11

WASHER, PLATE

90201-06380-00

$0.60

12

GROMMET (1E5)

90480-13163-00

$7.49

13

COLLAR(8R4)

90387-062N2-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

15

NUT (J17)

95380-06800-00

Unavailable

16

BOLT (661)

97013-06012-00

$5.60

17

NUT, HEXAGON

95380-06600-00

Unavailable

18

BOLT(JA9)

90101-08691-00

Unavailable

19

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

20

WASHER, PLAIN

92990-08200-00

Unavailable

21

MOLD, FENDER

305-21519-00-00

Unavailable

22

FENDER, REAR

305-21610-00-35

Unavailable

23

GROMMET 839774310000

90480-14023-00

Unavailable

24

COLLAR (J10)

90387-06026-00

Unavailable

25

WASHER, PLATE

90201-06380-00

$0.60

26

BOLT(7U8)

97080-06020-00

Unavailable

27

MOLD, FENDER

335-21519-00-00

Unavailable

28

BOLT (663)

97013-08060-00

Unavailable

29

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

30

NUT(6L2)

95333-08600-00

Unavailable

31

PLUG 288833190000

90338-07043-00

Unavailable
