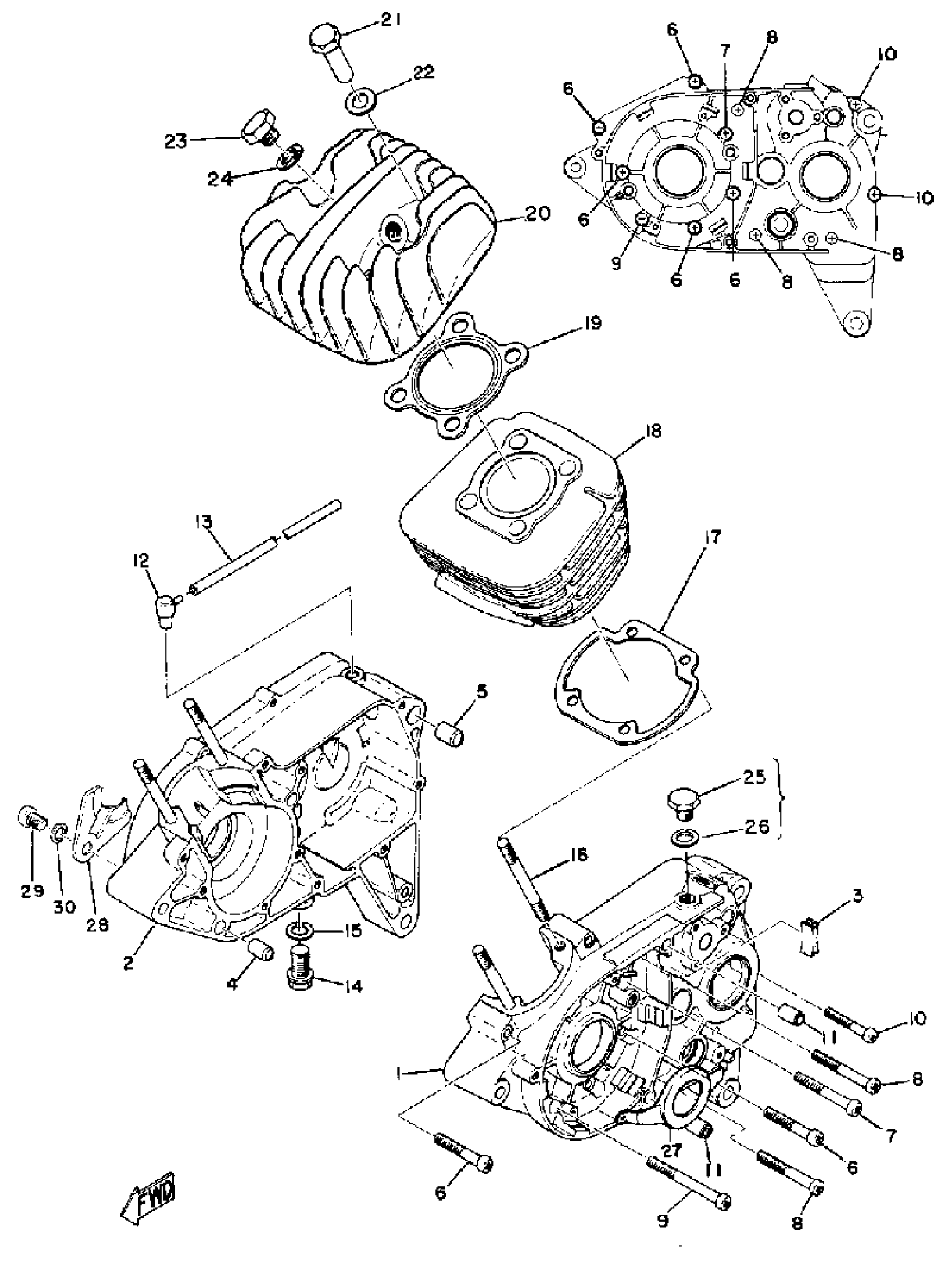

Yamaha LT2M (LT2M) LT2M 1972 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

(276-15111-00-00)

Unavailable

2

CRANKCASE 2

(276-15121-03-00)

Unavailable

3

GROMMET

248-15357-00-00

$7.99

4

PIN, DOWEL

99530-12016-00

$4.89

5

PIN, DOWEL

99530-14016-00

$3.80

6

SCREW PAN HEAD

98580-06545-00

$5.60

7

SCREW, BIND (JH1)

98580-06560-00

Unavailable

8

SCREW, PANHED (GC2)

98580-06555-00

Unavailable

9

SCREW PAN HEAD

98580-06565-00

Unavailable

10

SCREW PAN HEAD

98580-06040-00

$8.49

11

PIN, DOWEL(3VD)

99530-10114-00

$2.55

12

BREATHER

583-15371-00-00

$6.99

13

HOSE

(90446-07009-00)

Unavailable

14

PLUG STRAIGTSCREW 132153510000

90340-12005-00

$8.49

15

GASKET (3JD1)

90430-12207-00

$7.99

16

BOLT STUD 276113610000

90116-08065-00

Unavailable

17

GASKET, CYLINDER

3UL-11351-00-00

Unavailable

18

CYLINDER 1

(305-11311-00-00)

Unavailable

18

CYLINDER 1

(335-11311-01-00)

Unavailable

19

GASKET,CYLINDER HEAD

305-11181-00-00

Unavailable

20

HEAD, CYLINDER 1

(305-11111-00-94)

Unavailable

20

HEAD, CYLINDER 1

(335-11111-01-00)

Unavailable

21

NUT (3V6)

90179-08303-00

Unavailable

22

WASHER PLATE 278111750000

90201-12362-00

Unavailable

23

PLUG, BLIND

90340-14022-00

Unavailable

24

GASKET

214-11198-01-00

Unavailable

25

PLUG, STRAIGHT SCREW

90340-12004-00

Unavailable

26

WASHER, PLATE

90201-12790-00

Unavailable

27

HOLDER

(304-15118-00-00)

Unavailable

28

HOLDER (R.H)

304-15128-00-00

Unavailable

29

BOLT(8X2)

90101-08344-00

Unavailable

30

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
