1972 Yamaha LT2M (LT2M) Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1972 Yamaha LT2M (LT2M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

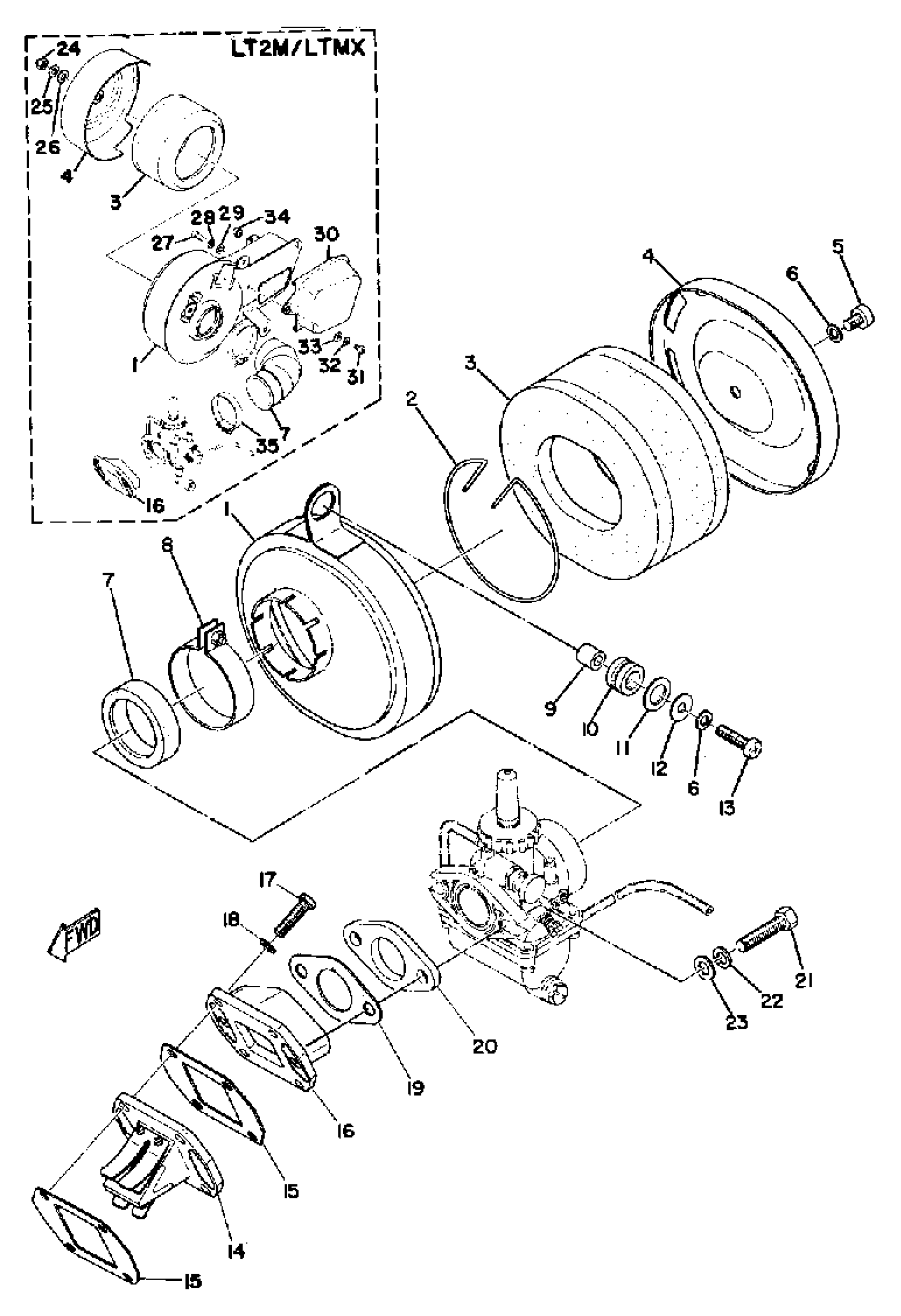

1972 Yamaha LT2M (LT2M) Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

305-14411-00-00

1
Out of stock

1

CASE, AIR CLEANER 1

305-14411-00-00

1
Out of stock

1

CASE, AIR CLEANER 1

335-14411-00-00

1
Out of stock

2

CLIP, CAP FITTING

304-14424-00-00

1
Out of stock

3

ELEMENT, AIR CLEANER

305-14451-00-00

1
Out of stock

3

ELEMENT, AIR CLEANER

335-14451-00-00

1
Out of stock

4

CAP, CLEANER CASE 1

304-14412-00-93

1
Out of stock

4

CAP, CLEANER CASE 1

305-14412-00-00

1
Out of stock

5

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

6

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

7

JOINT, AIR CLNR 1

276-14453-70-00

1
Out of stock

7

JOINT, AIR CLNR 1

304-14453-70-00

1
Out of stock

8

CLAMP, H0SE (29R)

90460-49248-00

1

$20.77

In stock

9

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

10

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

11

WASHER PLATE 148272190000

90201-14215-00

—
Out of stock

12

WASHER, PLATE

90201-06380-00

—

$0.57

In stock

13

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

14

REED VALVE ASSY

304-13610-00-00

—

$49.77

In stock

14

SEAT REED VALVE

304-13611-00-00

1
Out of stock
