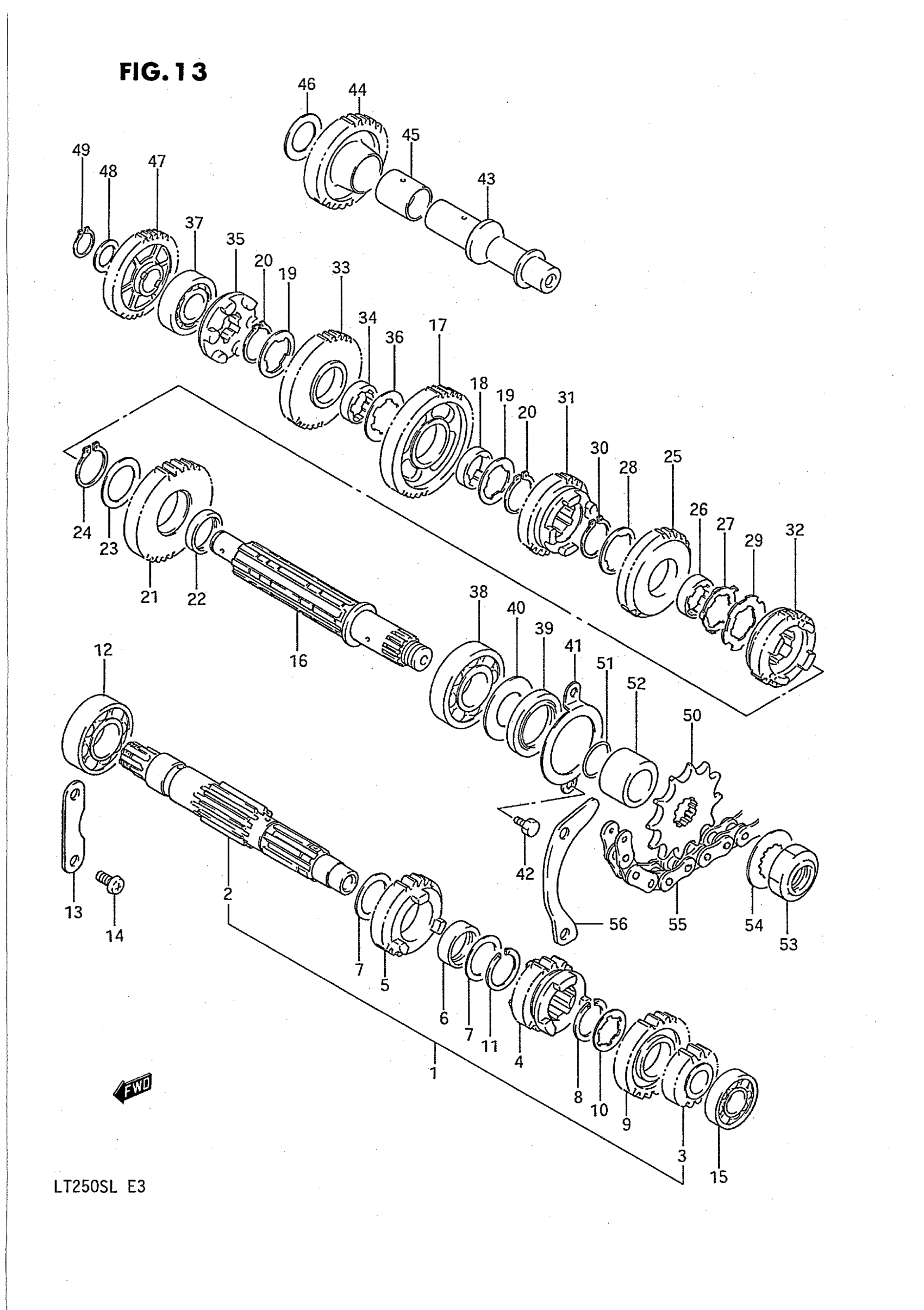

Suzuki LT250S (1990) TRANSMISSION Diagram

#

Description
Price

1

COUNTERSHAFT ASSY | Includes Item(s) 2 - 11

24120-25C00

Unavailable

2

COUNTERSHAFT (NT:12)

24121-22A02

Unavailable

3

GEAR, 2ND DRIVE (NT:14)

24221-22A00

Unavailable

4

GEAR, 3RD DRIVE (NT:15)

24231-22A00

Unavailable

5

GEAR, 4TH DRIVE (NT:19)

24241-25C00

Unavailable

6

BUSH

09300-22008

$14.82

7

WASHER, 6TH DRIVE This part replaces 08211-22301.

09181-22167

$2.96

8

CIRCLIP

09380-22006

$3.10

9

GEAR, 5TH DRIVE (NT:22)

24251-22A00

Unavailable

10

WASHER

09167-22013

Unavailable

11

CIRCLIP

09380-22006

$3.10

12

BEARING, RH

09262-22018

$25.60

13

RETAINER

24741-18A00

Unavailable

14

SCREW This part replaces 02112-06128.

02112-06127

$1.84

15

BEARING, LH

09262-15016

Unavailable

16

DRIVESHAFT

24130-22A01

Unavailable

17

GEAR, 1ST DRIVEN (NT:37) This part replaces 24311-18A01.

24311-18A02

Unavailable

18

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$18.67

19

LOCK WASHER

09167-25016

$3.72

20

SNAP RING

09380-25003

$3.04

21

GEAR, 2ND DRIVEN (NT:30)

24321-22A00

Unavailable

22

BUSH

09300-25020

$16.87

23

WASHER

08211-25351

$3.72

24

SNAP RING

09380-25003

$3.04

25

GEAR, 3RD DRIVEN (NT:24)

24331-22A00

Unavailable

26

BUSH, 3RD DRIVEN GEAR This part replaces 24332-24500.

24332-24510

$18.67

27

LOCK WASHER

09169-25001

$2.70

28

LOCK WASHER

09167-25016

$3.72

29

WASHER,LOCK (25.1X41X1.5)

09167-25013

$3.30

30

SNAP RING

09380-25003

$3.04

31

GEAR, 4TH DRIVEN (NT:27) This part replaces 24341-25C00.

24341-22A00

Unavailable

32

GEAR, 5TH DRIVEN (NT:22)

24351-22A00

Unavailable

33

GEAR, REVERSE DRIVEN (NT:34)

24571-18A02

Unavailable

34

BUSH,REVERSE DRIVEN GEAR

24333-18A00

Unavailable

35

DOG

24581-18A00

Unavailable

36

WASHER

09167-25017

$3.87

37

BEARING, RH

09262-17023

$16.75

38

BEARING, RH (22X56X16) This part replaces 09262-22012.

09262-22025

$57.67

39

OIL SEAL

09283-30050

$10.96

40

WASHER (22.1X45.2X1)

24359-22A00

Unavailable

41

RETAINER

24751-25C00

Unavailable

42

BOLT This part replaces 01107-06107.

01500-06107

$2.06

43

SHAFT, REVERSE IDLER

24551-35B10

Unavailable

44

GEAR, REVERSE IDLER (NT:29)

24561-18A02

Unavailable

45

BUSH

09300-20034

Unavailable

46

THRUST WASHER

08211-20301

$2.35

47

GEAR, KICK IDLE (NT:25)

26260-25C00

Unavailable

48

WASHER (17X24X0.5) This part replaces 08221-17245.

09181-17130

$2.96

49

CIRCLIP This part replaces 08331-31178.

08331-31179

$1.90

50

SPROCKET, ENGINE (NT:12)

27511-24400

Unavailable

51

O RING (D:2.5,ID:21)

09280-21008

$1.91

52

SPACER

27531-22A00

Unavailable

53

NUT

09140-18008

$6.00

54

LOCK WASHER

09167-22012

$1.54

55

CHAIN, DRIVE (RK520SMX86LE)

27600-34A40-086

Unavailable

56

PLATE

27641-25C00

Unavailable
