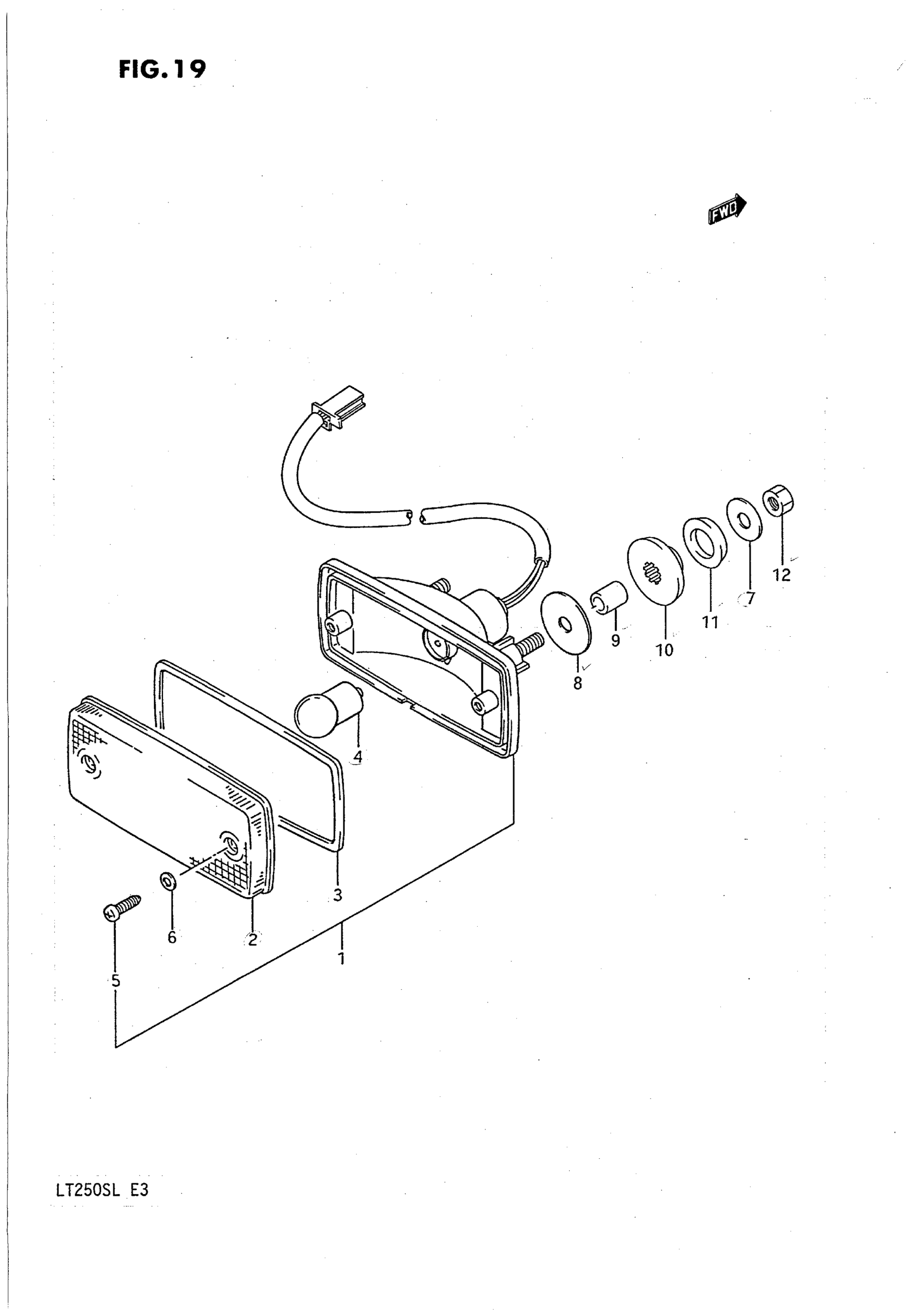

Suzuki LT250S (1990) TAIL LAMP Diagram

#

Description
Price

1

LAMP ASSY, TAIL | MODEL K This part replaces 35710-18A32.

35710-41B02

Unavailable

1

LAMP ASSY, TAIL | MODEL L; Includes Item(s) 2 - 6 This part replaces 35710-18A33.

35710-41B02

Unavailable

2

LENS | MODEL K This part replaces 35712-18A31.

35712-18A32

$45.31

2

LENS | MODEL L

35712-18A32

$45.31

3

GASKET

35713-18A30

$9.67

4

BULB (12V5W) This part replaces 09471-12139.

09471-12058

$2.33

5

SCREW

03212-04169

$1.49

6

GASKET

35627-43010

$2.28

7

WASHER (6.5X20X1.2) This part replaces 09160-06060.

09160-06077

$1.91

8

WASHER (6.5X30X1.2)

09160-06071

Unavailable

9

SPACER This part replaces 09180-06213.

09180-06290

$2.35

10

CUSHION

09320-09012

Unavailable

11

CUSHION

09320-14010

Unavailable

12

NUT This part replaces 08310-12066.

08310-0006A

$1.84
