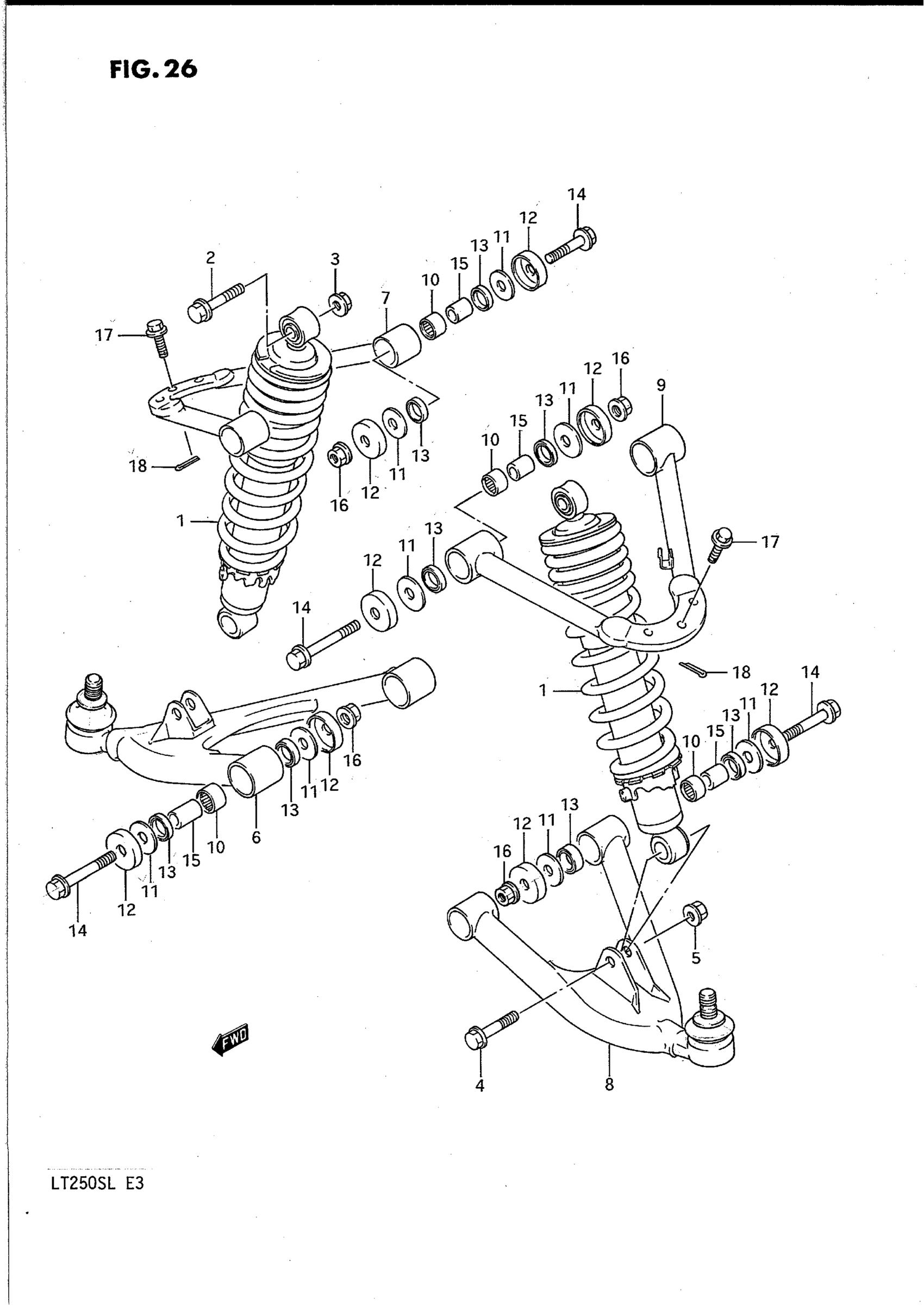

Suzuki LT250S (1990) SUSPENSION ARM Diagram

#

Description
Price

1

SHOCK ABSORBER, FRONT (WHITE)

52100-25C00-14L

Unavailable

2

BOLT, SHOCK ABSORBER UPPER

09103-10019

$2.63

3

NUT

08319-31107

$2.73

4

BOLT, SHOCK ABSORBER LOWER

09103-10126

$4.50

5

NUT

08319-31107

$2.73

6

ARM, SUSPENSION LOWER RH (WHITE)

52410-25C00-14L

Unavailable

7

ARM, SUSPENSION UPPER RH (WHITE)

52430-25C00-14L

Unavailable

8

ARM, SUSPENSION LOWER LH (WHITE)

52420-25C00-14L

Unavailable

9

ARM, SUSPENSION UPPER LH (WHITE)

52440-25C00-14L

Unavailable

10

.BEARING (17X24X25) This part replaces 09263-17020.

09263-17053

$21.66

11

WASHER

08211-10281

$2.03

12

SEAL,DUST This part replaces 52454-43B00.

52454-43B01

$7.73

13

.SEAL,OIL (17X24X3) This part replaces 62647-02B00.

09285-17007

$3.76

14

BOLT,10X77 This part replaces 09103-10186.

09103-10247-XC0

$6.02

15

SPACER, SUSPENSION ARM PIVOT

52455-43B00

$21.67

16

NUT

08319-31107

$2.73

17

NO DESCRIPTION AVAILABLE This part replaces 09103-08176.

09103-08503-XC0

Unavailable

18

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
