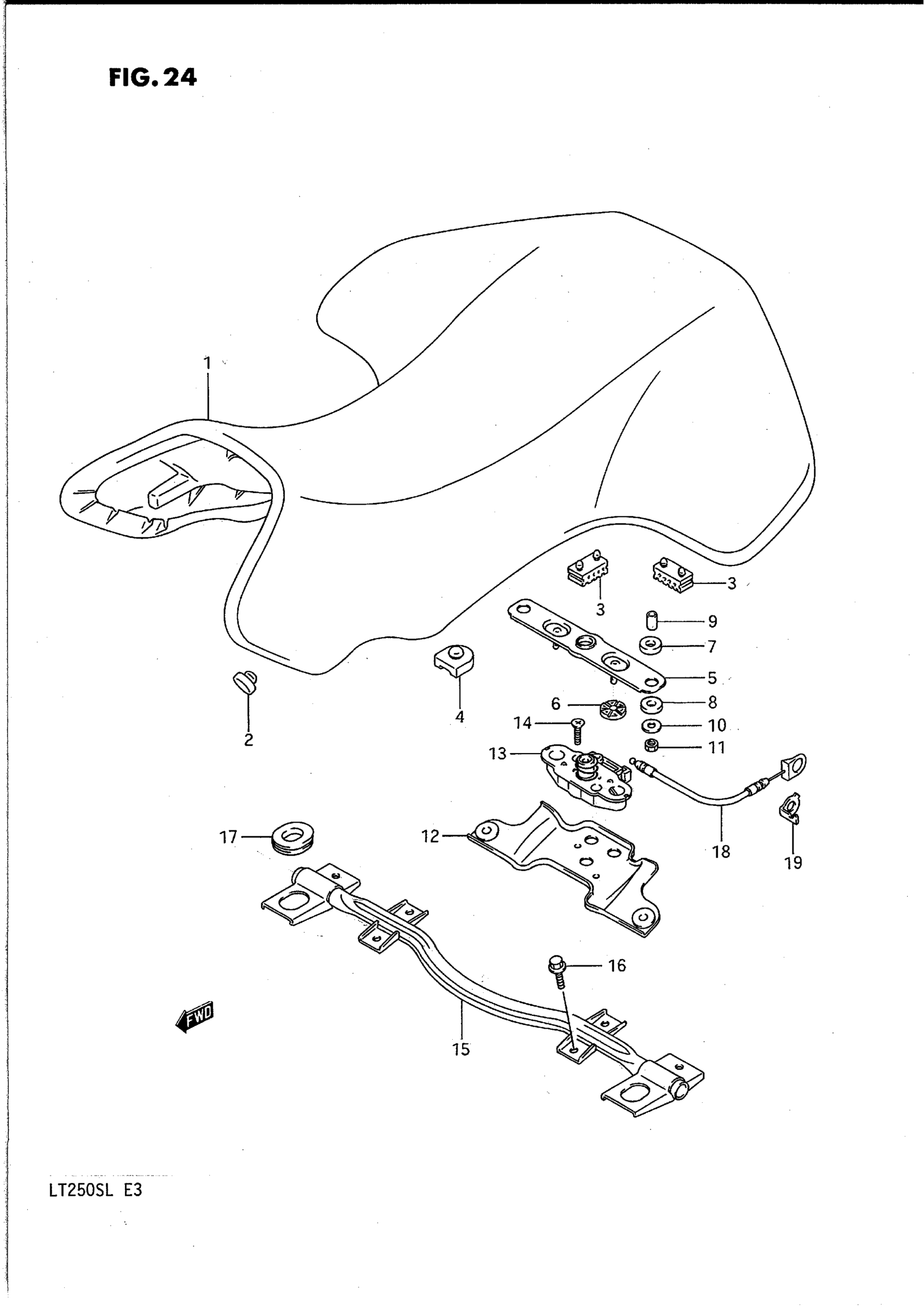

Suzuki LT250S (1990) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 45100-25C00-4UZ.

45100-25C01-4UZ

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL L; Includes Item(s) 2 - 11 This part replaces 45100-25C20-4UZ.

45100-25C01-4UZ

Unavailable

2

CUSHION

09321-10012

$2.92

3

CUSHION, REAR

45149-31300

$3.56

4

CUSHION, CENTER

45149-19A00

Unavailable

5

STRIKER, SEAT LOCK This part replaces 45210-25C00.

45210-25C01

Unavailable

6

CUSHION, BOSS

45213-13601

$2.79

7

CUSHION, STRIKER UPPER

45126-41B00

$2.38

8

CUSHION, STRIKER LOWER

45127-41B00

$2.38

9

SPACER (6.1X8X12) This part replaces 09180-06035.

09180-06249

$2.10

10

WASHER

08212-06201

$1.67

11

NUT This part replaces 08316-26066.

08316-1006B

$2.50

12

PLATE, SEAT LOCK

45240-25C00

Unavailable

13

BRACKET, SEAT SUPPORT

45220-22A10

$62.85

14

SCREW This part replaces 02122-06306.

02122-0630B

$2.06

15

BRACKET, SEAT SUPPORT REAR

45230-25C00

Unavailable

16

BOLT This part replaces 01517-06128.

01550-06127

$2.30

17

CUSHION

09320-16009

Unavailable

18

CABLE, SEAT LOCK | MODEL K This part replaces 45280-25C00.

45280-25C01

Unavailable

18

CABLE, SEAT LOCK | MODEL L

45280-25C01

Unavailable

19

PLATE, SEAT LOCK CABLE

45221-25C00

Unavailable
