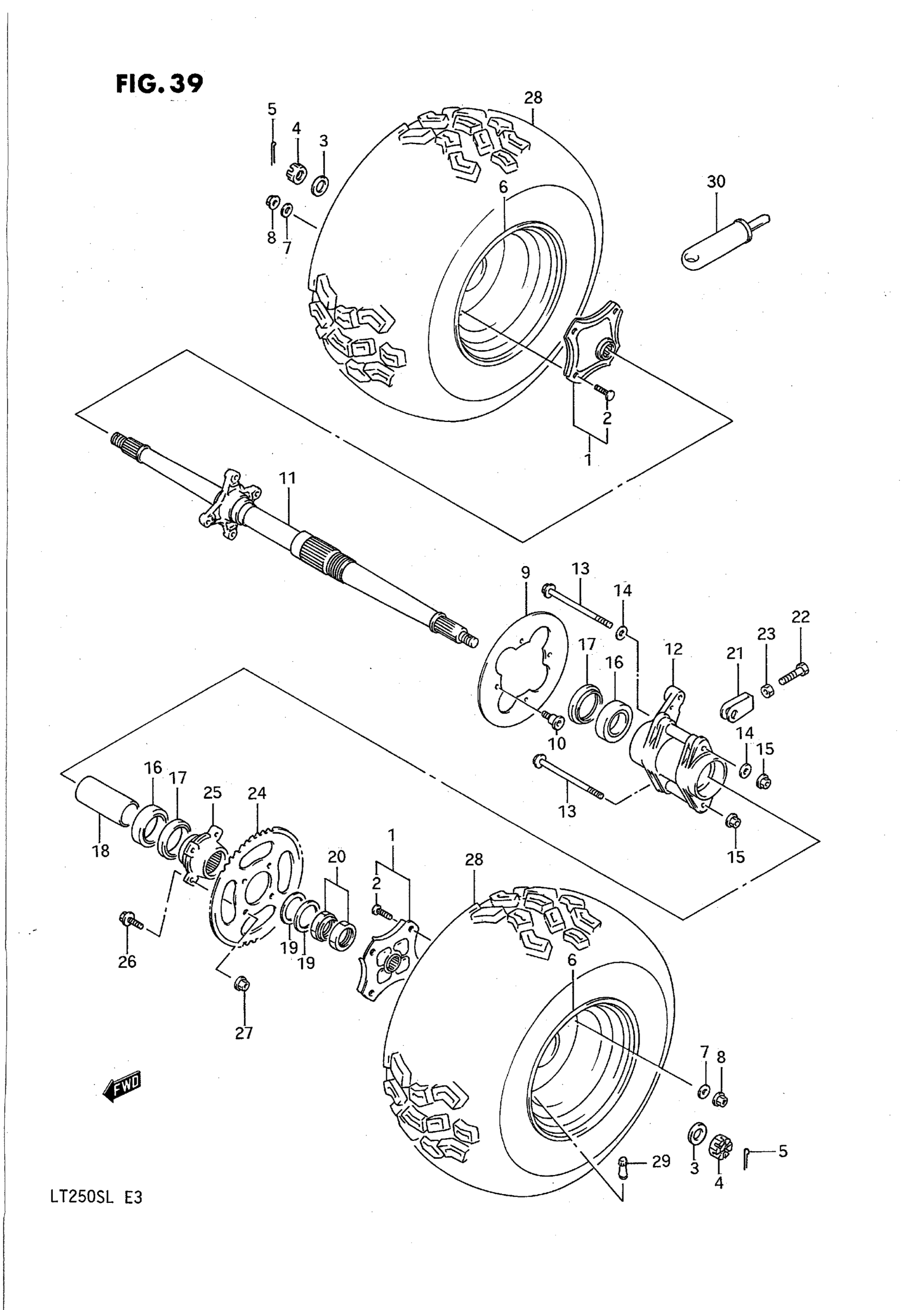

Suzuki LT250S (1990) REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR (BLUE) | Includes Item(s) 2

64110-25C00-19F

Unavailable

2

BOLT

09119-10047

Unavailable

3

WASHER

09164-18004

$3.76

4

NUT (WHITE)

09141-18008

$8.37

5

PIN, COTTER This part replaces 04111-40408.

04111-4040A

$1.49

6

RIM, REAR WHEEL

65310-25C00

Unavailable

7

WASHER This part replaces 08322-21108.

08322-01107

$2.15

8

NUT This part replaces 08316-26107.

08316-2010B

$3.43

9

DISC, REAR BRAKE

69211-22A00

Unavailable

10

BOLT

09106-08076

$5.07

11

AXLE, REAR

64710-25C00

Unavailable

12

HOUSING, REAR AXLE

64720-25C00

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 09103-12032.

09103-12032-XC0

Unavailable

14

WASHER, FRONT AXLE This part replaces 09160-120B2.

09160-12082

$3.29

15

NUT This part replaces 08319-31128.

08319-3112A

$3.76

16

BEARING

08123-60087

$44.10

17

DUST SEAL

09283-50006

$21.88

18

SPACER

64731-19A00

Unavailable

19

WASHER

09164-38001

$5.27

20

NUT, REAR AXLE

64870-19A00

$83.40

21

ADJUSTER, CHAIN

61410-35B00

$18.31

22

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

23

NUT This part replaces 08310-22088.

08310-00087

$2.13

24

SPROCKET, REAR (NT:39) This part replaces 64511-02C00.

64511-02C01

$60.37

25

FLANGE

64611-22A00

Unavailable

26

BOLT

09103-10129

Unavailable

27

NUT

08319-31107

$2.73

28

TIRE, REAR (AT21X11-9) DUNLOP | MODEL K This part replaces 65110-25C00.

65110-25C01

Unavailable

28

TIRE, REAR (AT21X11-9) DUNLOP | MODEL L

65110-25C01

Unavailable

29

VALVE ASSY, WHEEL RIM This part replaces 43130-75150.

43130-78030

$9.25

30

GAUGE ASSY,AIR PRESSUR This part replaces 96200-18A01.

96200-18A02

$58.92
