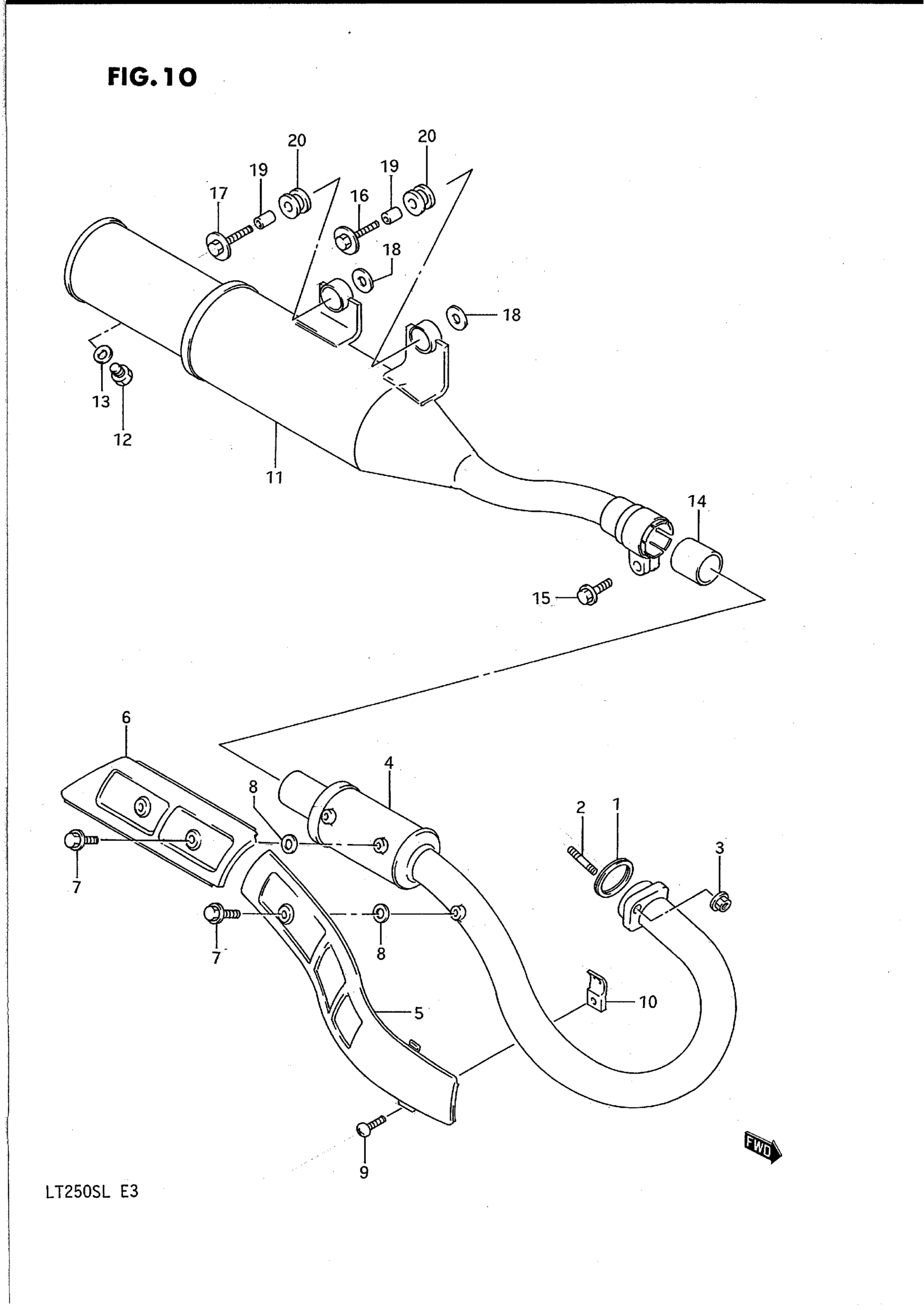

Suzuki LT250S (1990) MUFFLER Diagram

#

Description
Price

1

GASKET, EXHAUST PIPE This part replaces 14181-12010.

14181-42A00

$10.93

2

STUD BOLT This part replaces 01421-08205.

01421-0820A

$1.91

3

NUT This part replaces 08361-15085.

08361-1508A

$2.02

4

PIPE, EXHAUST

14150-25C00

Unavailable

5

COVER, EXHAUST PIPE FRONT

14180-25C00

Unavailable

6

COVER, EXHAUST PIPE REAR

14190-25C00

Unavailable

7

BOLT (6X10)

09103-06129

Unavailable

8

GASKET, MUFFLER COVER This part replaces 09168-06020.

09168-06120

$2.92

9

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

10

CLAMP

14185-18A01

Unavailable

11

MUFFLER

14310-25C01

Unavailable

12

PLUG

09247-12103

$2.84

13

GASKET

09168-12002

$1.59

14

GASKET, 2ND MUFFLER

14771-25C00

Unavailable

15

BOLT This part replaces 01517-08205.

01550-0820A

$2.23

16

BOLT (8X35)

09118-08139

Unavailable

17

BOLT (8X40) This part replaces 09118-08138.

09118-08145

$6.47

18

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

19

SPACER (8.5X12X18.5) This part replaces 09180-08127.

09180-08195

$3.87

20

CUSHION | FROM 09320-12026

09320-12043

$7.98
