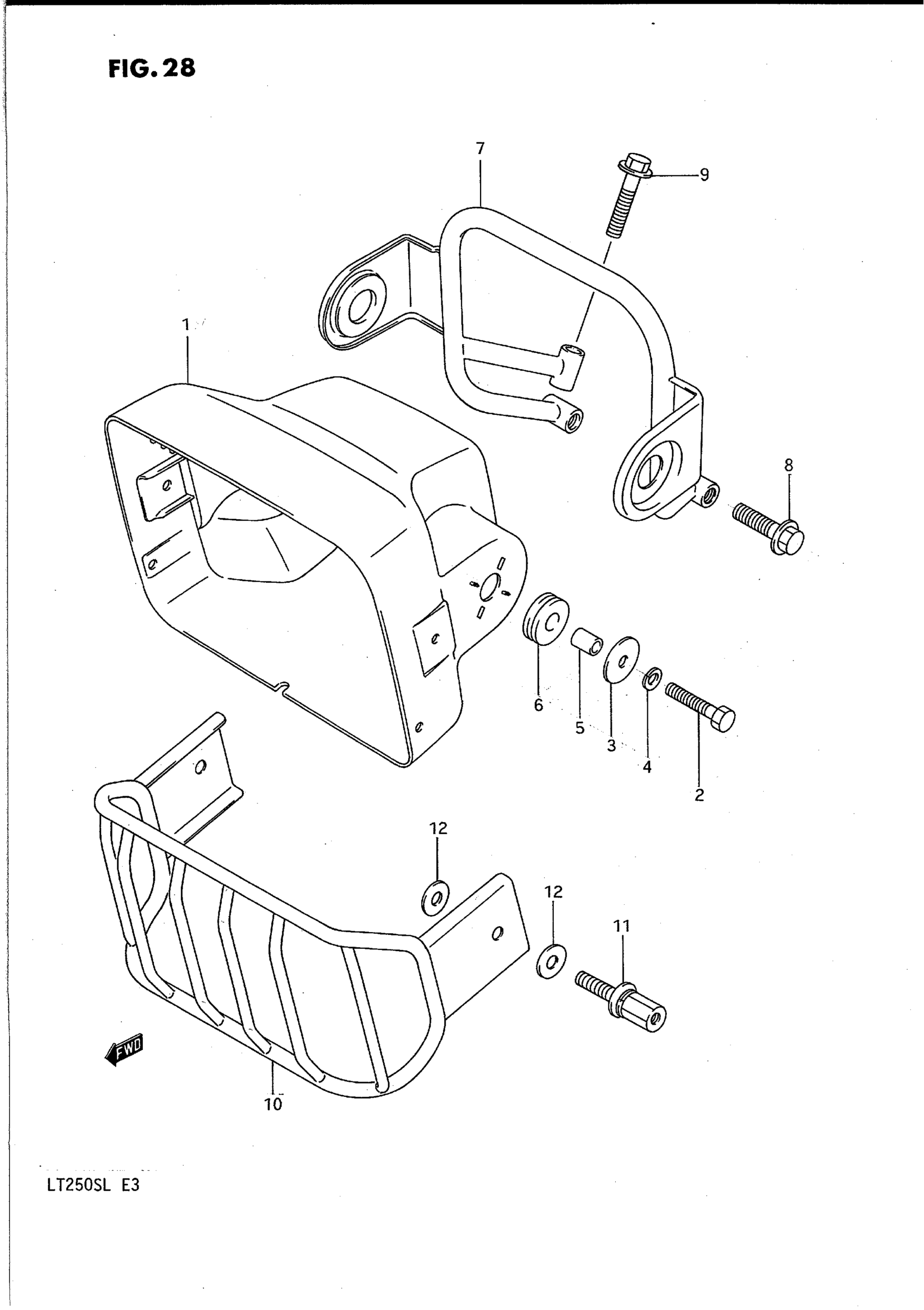

Suzuki LT250S (1990) HEADLAMP HOUSING Diagram

#

Description
Price

1

COVER, HEADLAMP (BLACK)

51810-18A01-291

Unavailable

2

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.78

3

WASHER This part replaces 09160-06063.

09160-06054

$1.62

4

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

5

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

6

CUSHION

09320-09002

$1.98

7

BRACKET, HEADLAMP

51530-25C00

Unavailable

8

BOLT (8X35) This part replaces 01517-08355.

01550-0835A

$3.04

9

BOLT This part replaces 01517-08304.

01550-0830A

$3.04

10

NO DESCRIPTION AVAILABLE | OPT; Includes Item(s) 11 - 12 This part replaces 48500-25C00.

48500-25C01

Unavailable

11

BOLT | OPT

51815-25C10

Unavailable

12

WASHER | OPT

09160-06019

$1.49
