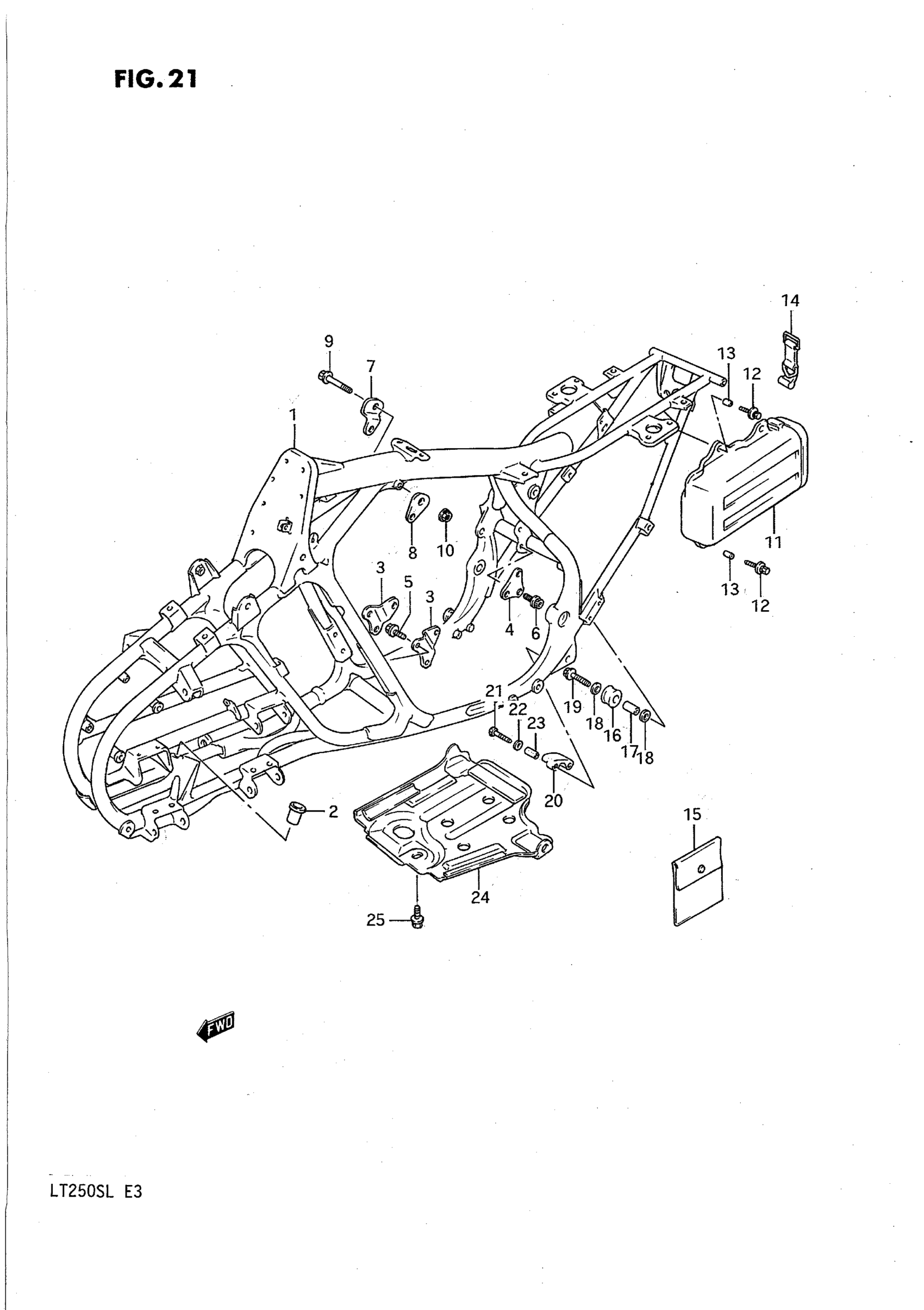

Suzuki LT250S (1990) FRAME Diagram

#

Description
Price

1

FRAME (BLUE)

41100-25C00-19F

Unavailable

2

BUSH, STEERING SHAFT LOWER (17X26X36.9) This part replaces 51661-19B10.

51661-09F00

$30.05

3

PLATE, MOUNTING NO.1 (BLACK) This part replaces 41991-22A00-19F.

41991-22A00-019

Unavailable

4

PLATE, MOUNTING NO.3 (BLACK) This part replaces 41996-22A00-19F.

41996-22A00-019

Unavailable

5

BOLT M8X16 This part replaces 01517-08167.

01550-08167

$2.85

6

BOLT This part replaces 07120-08168.

07120-0816A

$3.05

7

PLATE, MOUNTING UPPER RH

41993-25C00

Unavailable

8

PLATE, MOUNTING UPPER LH

41994-25C00

Unavailable

9

BOLT,10X77 This part replaces 09103-10132.

09103-10247-XC0

$6.02

10

NUT This part replaces 08319-31105.

08319-3110A

$2.73

11

BOX ASSY

47430-25C00

Unavailable

12

BOLT,6X20 This part replaces 09118-06087.

09118-06087-XC0

Unavailable

13

SPACER

09180-06191

Unavailable

14

BAND, BOX

44560-41300

Unavailable

15

BAG,OWNER'S MAN This part replaces 94980-19002.

94980-19022

$5.62

16

ROLLER, CHAIN CONTROL

43911-35B00

$19.98

17

SPACER This part replaces 09180-08119.

09180-08156

$6.70

18

WASHER

08211-08201

$2.03

19

BOLT

09103-08043

$3.18

20

BUFFER, CHAIN

43911-35B10

Unavailable

21

BOLT, REAR This part replaces 01107-06307.

01500-06307

$2.48

22

WASHER This part replaces 09160-06031.

09160-06125

$1.91

23

SPACER This part replaces 09180-06072.

09180-06271

$2.35

24

PROTECTOR, ENGINE | MODEL K This part replaces 42510-25C00.

42510-25C01

Unavailable

24

PROTECTOR, ENGINE | MODEL L

42510-25C01

Unavailable

25

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.32
