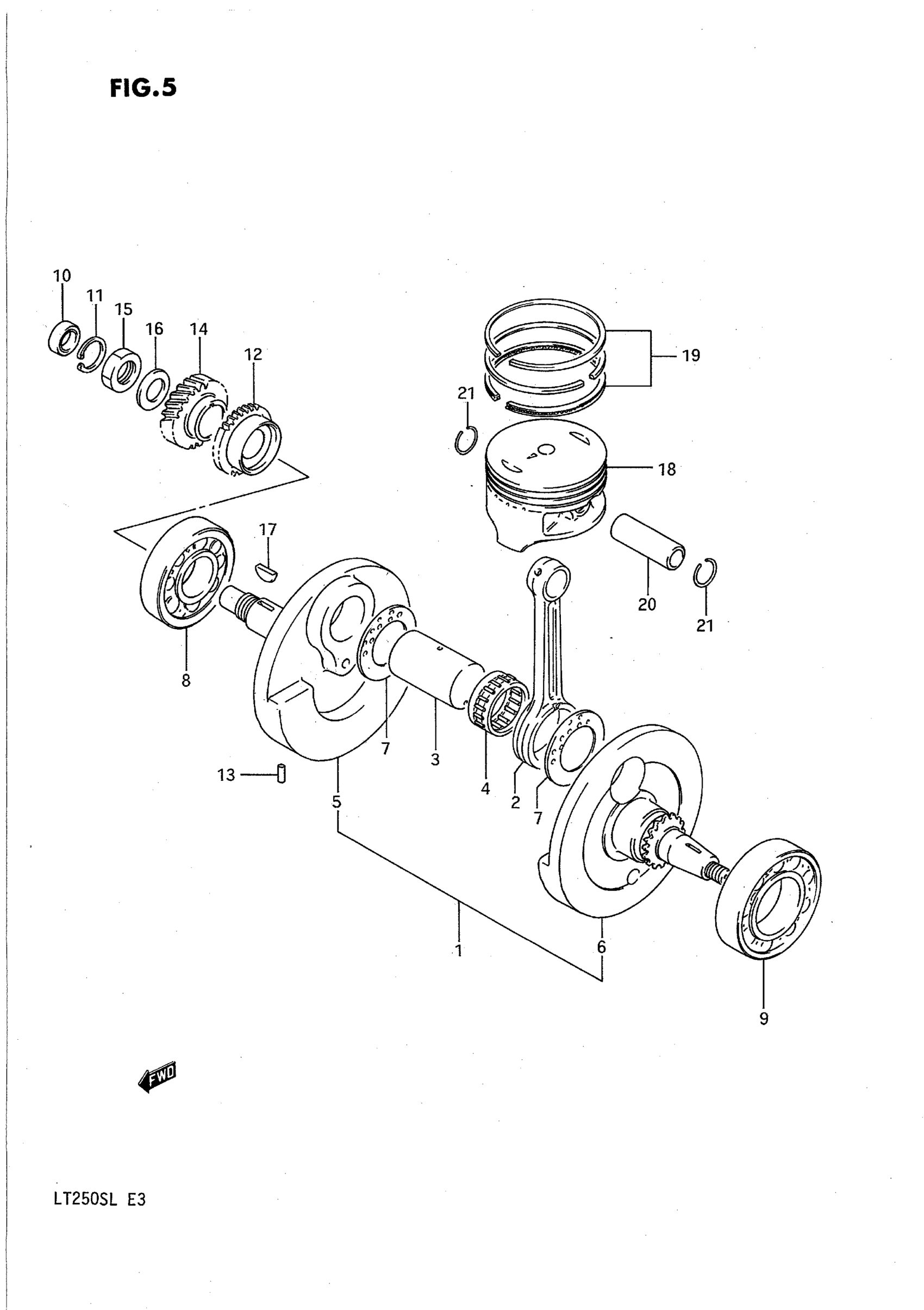

Suzuki LT250S (1990) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT ASSY | Includes Item(s) 2 - 7

12200-25C00

Unavailable

2

ROD, CONNECTING

12161-25C00-0D0

Unavailable

3

PIN, CRANK This part replaces 12210-25C00.

12210-25C01

$57.92

4

BEARING

09263-32011-0C0

$84.17

5

CRANKSHAFT, RH

12221-25C00

Unavailable

6

CRANKSHAFT, LH

12261-25C00

Unavailable

7

WASHER

09160-32018

$12.75

8

BEARING, RH

09262-28014

$74.08

9

BEARING, LH

09262-35038

$43.67

10

OIL SEAL (12X21X7)

09282-12009

$16.75

11

CIRCLIP

08331-41249

$2.31

12

GEAR, OIL PUMP DRIVE (NT:30)

16321-18902

Unavailable

13

PIN This part replaces 06211-03052.

04221-03059

$1.87

14

GEAR, PRIMARY DRIVE (NT:21)

21111-22A02

Unavailable

15

NUT

09140-16002

$3.00

16

WASHER

09164-16002

$3.00

17

KEY This part replaces 08341-31049.

09420-04008

$3.18

18

PISTON This part replaces 12111-25C00-0F0.

12111-19B80-0F0

$102.50

18

PISTON SET (OS:0.5) | OPT This part replaces 12111-25C00-050.

12100-19B80-050

$177.10

18

PISTON SET (OS:0.1) | OPT This part replaces 12111-25C00-100.

12100-19B80-100

Unavailable

19

RING SET, PISTON This part replaces 12140-25C10.

12140-19B80

$61.60

19

RING SET, PISTON (OS:0.5) | OPT This part replaces 12140-25C10-050.

12140-19B80-050

$70.72

19

RING SET, PISTON (OS:1.0) | OPT This part replaces 12140-25C10-100.

12140-19B80-100

Unavailable

20

PIN, PISTON

12151-25C00

$18.33

21

CIRCLIP

09381-17003

$2.58
