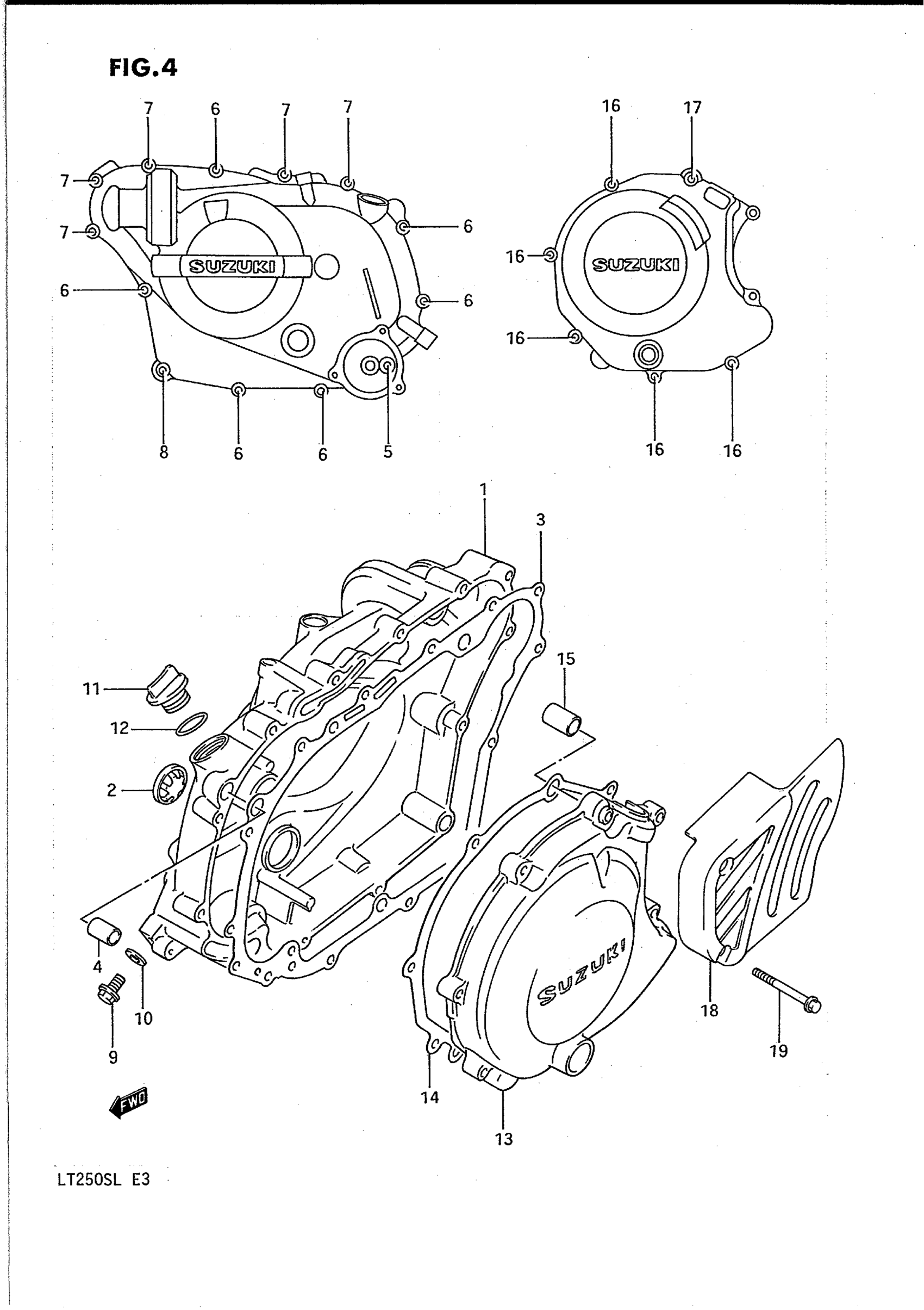

Suzuki LT250S (1990) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-22A02

Unavailable

2

LENS

11971-33210

$18.20

3

GASKET,CLUTCH C This part replaces 11482-22A00.

11482-22A10

Unavailable

4

PIN This part replaces 09206-13001.

04211-13189

$2.19

5

BOLT (6X25)

01547-06257

$2.03

6

BOLT This part replaces 01547-06304.

01547-06307

$2.03

7

BOLT This part replaces 01547-06404.

01547-0640B

$2.75

8

BOLT This part replaces 01547-06555.

01547-0655B

$2.75

9

BOLT (8X12) This part replaces 01517-08125.

01550-0812A

$2.32

10

GASKET

09168-08015

$2.79

11

PLUG (20X10) This part replaces 09259-20013.

09259-20019

$11.52

12

O RING

09280-17003

$1.65

13

COVER, MAGNETO

11351-22A01

Unavailable

14

GASKET,MAG COVE This part replaces 11483-22A00.

11483-22A10

$16.85

15

PIN This part replaces 09206-13001.

04211-13189

$2.19

16

BOLT, FINAL GEAR CASE COVER This part replaces 01547-06254.

01547-0625B

$2.45

17

BOLT This part replaces 01547-06404.

01547-0640B

$2.75

18

COVER, ENGINE SPROCKET

11360-22A10

Unavailable

19

BOLT This part replaces 01547-06454.

01547-0645B

$2.73
