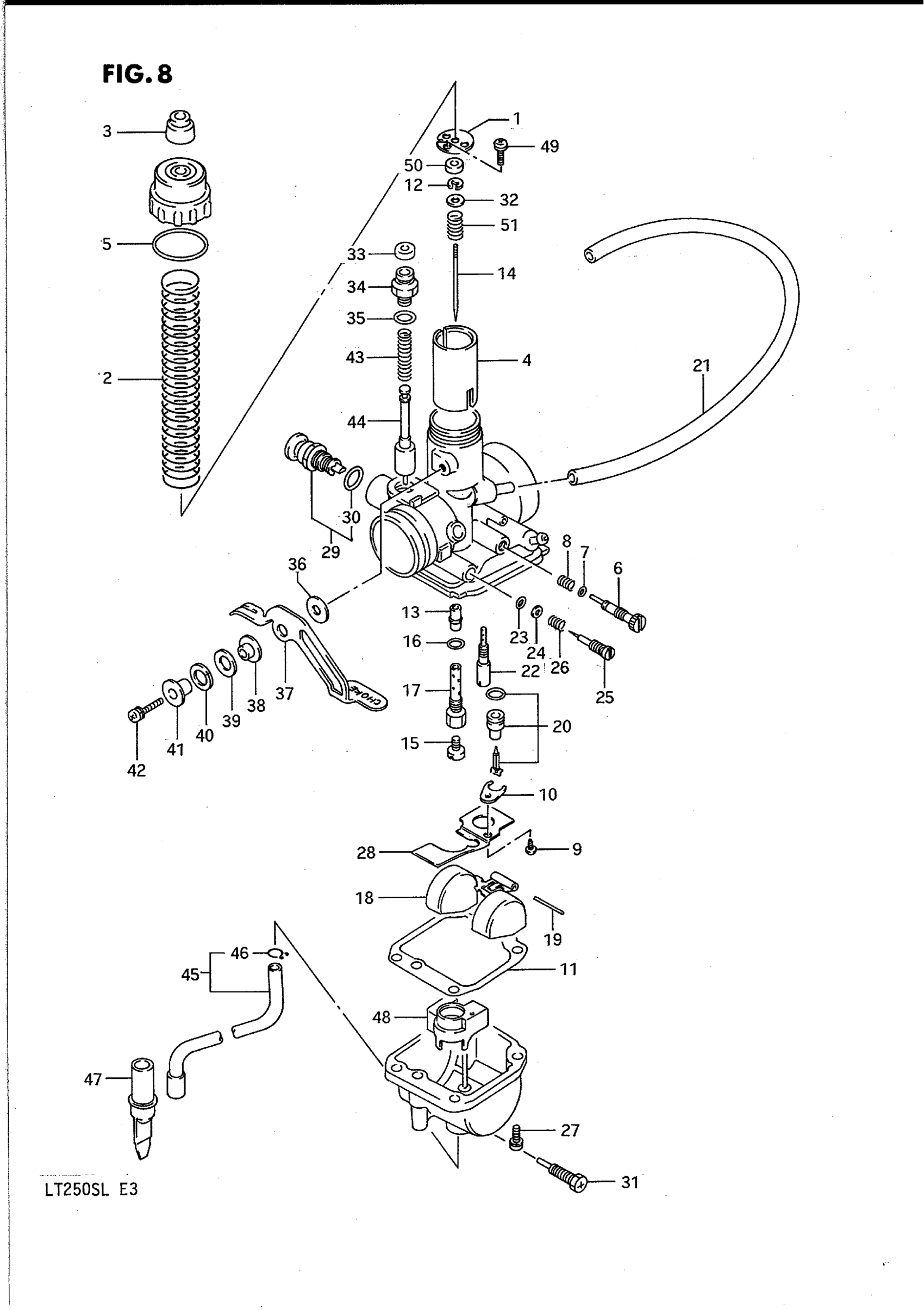

Suzuki LT250S (1990) CARBURETOR Diagram

#

Description
Price

CARBURETOR ASSY | Includes Item(s) 1 - 51

13200-25C00

Unavailable

1

PLATE, SPRING

13373-44A00

Unavailable

2

SPRING, THROTTLE VALVE

13573-25C00

Unavailable

3

.CAP This part replaces 13681-04010.

13681-04011

$4.93

4

VALVE, THROTTLE (CA:1.5)

13551-41B10

Unavailable

5

O RING This part replaces 13246-22A00.

13246-22A01

Unavailable

6

ADJUSTER

13267-24500

$10.55

7

O RING

13295-33010

$4.48

8

SPRING

13268-35010

$4.48

9

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

10

PLATE

13373-46710

$6.17

11

GASKET

13251-05320

$7.69

12

E RING

13394-10010

$5.45

13

JET, NEEDLE (O-3)

09494-00435

Unavailable

14

NEEDLE, JET (5HN31-3)

13383-25C00

$21.77

15

JET, MAIN (110)

09491-22016

$10.06

16

.O RING This part replaces 13246-43010.

13246-43011

$4.34

17

PIPE, BLEEDER

13385-47030

Unavailable

18

FLOAT

13252-22A00

$36.72

19

.PIN, FLOAT

13254-01010

$3.62

20

VALVE ASSY, NEEDLE

13370-22A00

Unavailable

21

HOSE,5X10X600 | L:550!425 This part replaces 13684-22A00.

44421-13ER0

$10.06

22

JET, PILOT (17.5)

09492-17009

Unavailable

23

O-RING This part replaces 13295-29900.

13295-29901

$4.34

24

GASKET

13291-29900

$1.98

25

SCREW, PILOT (2 7/8) This part replaces 13279-47080.

13279-47070

$13.36

26

.SPRING (NT:45)

13268-47070

$4.34

27

SCREW

13601-04148

$2.81

28

PLATE

13259-18900

$7.53

29

PLUNGER ASSY, STARTER

13439-18911

$51.93

30

O RING

13278-02330

$2.82

31

SCREW

13247-24500

Unavailable

32

WASHER

13382-47010

$3.56

33

.CAP, STARTER VALVE

13682-31210

$4.37

34

HOLDER

13418-05320

Unavailable

35

O RING

13278-02330

$2.82

36

WASHER

13421-05320

$3.12

37

LEVER

13413-05230

Unavailable

38

RING

13432-05320

$4.25

39

WASHER

13589-47070

$1.98

40

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

41

RING

13424-05320

$5.21

42

SCREW This part replaces 13601-22A00.

02112-3416B

$2.19

43

SPRING

13417-47070

Unavailable

44

PLUNGER ASSY

13411-05320

$26.80

45

VALVE ASSY, CHECK | L:275!225 This part replaces 13520-02C00.

13520-02C01

$50.10

46

CLIP

13671-05A40

$3.71

47

CAP,OVER FLOW This part replaces 13680-19B01.

13680-19B02

$13.57

48

RING

13331-18B00

Unavailable

49

SCREW This part replaces 02112-33086.

02112-3308A

$2.23

50

RING

13387-47010

$7.22

51

SPRING

13388-47010

$6.91
