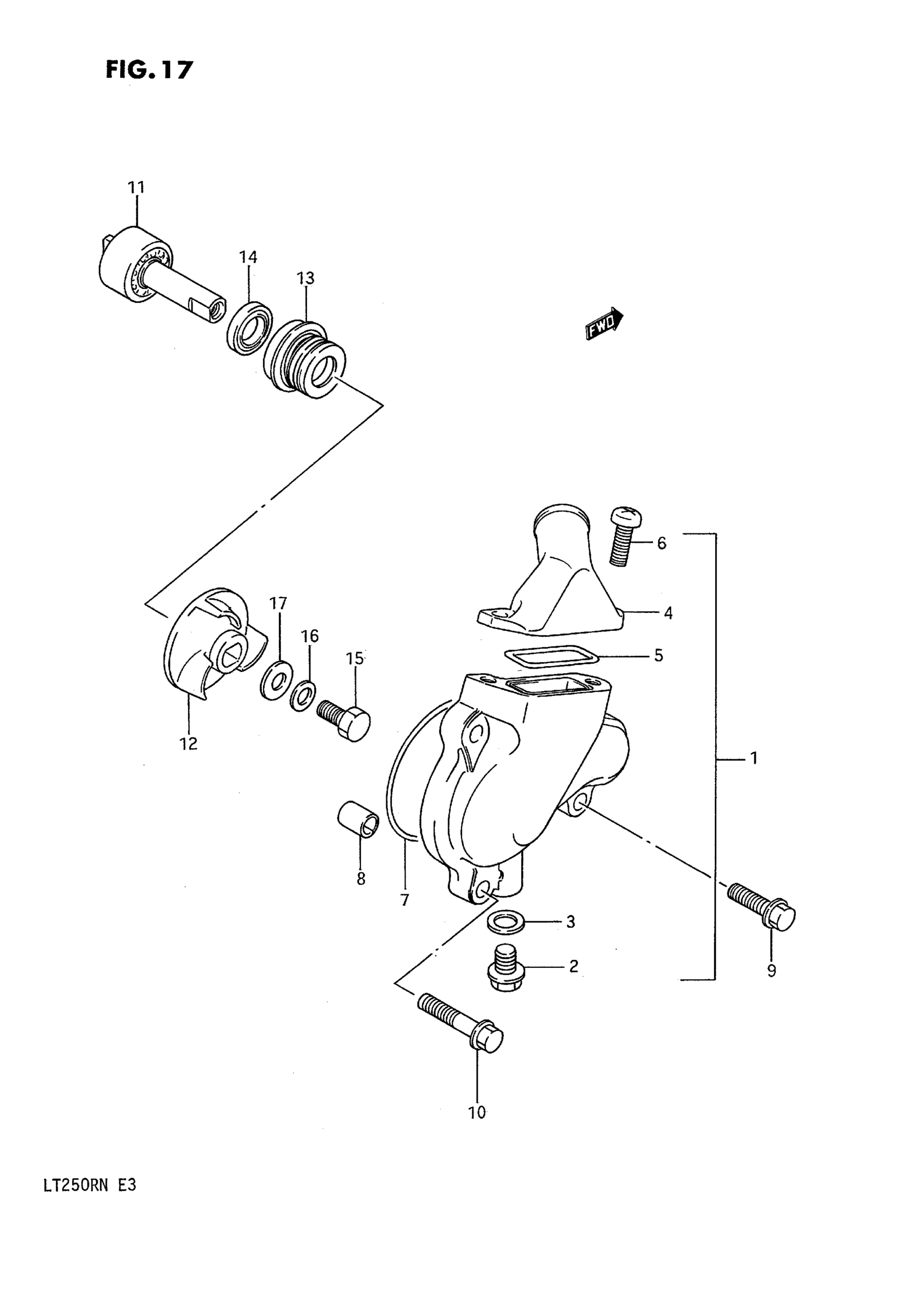

Suzuki LT250R (1992) WATER PUMP (MODEL H/J/K/L/M/N) Diagram

#

Description
Price

1

CASE, WATER PUMP | Includes Item(s) 2 - 6

17410-01C00

Unavailable

2

BOLT, DRAIN

17415-14300

$2.81

3

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.64

4

CONNECTOR, WATER PUMP

17412-01C00

Unavailable

5

O RING, WATER PUMP CONNECTOR

17415-01C00

Unavailable

6

SCREW This part replaces 02112-06164.

02112-0616A

$1.43

7

O RING, WATER PUMP CASE

17418-01C00

Unavailable

8

PIN

04211-09129

$1.64

9

BOLT

01547-06207

$2.01

10

BOLT

01547-06307

$2.06

11

SHAFT, WATER PUMP

17510-01C00

$112.87

12

IMPELLER, WATER PUMP

17491-01C00

Unavailable

13

.SEAL,MECHANICAL This part replaces 17470-46A00.

17470-02F11

$26.75

14

OIL SEAL (10X20X3.8)

09282-10013

$5.51

15

BOLT

09100-06137

$2.42

16

LOCK WASHER

09164-06006

$2.66

17

GASKET

09168-06025

$2.80
