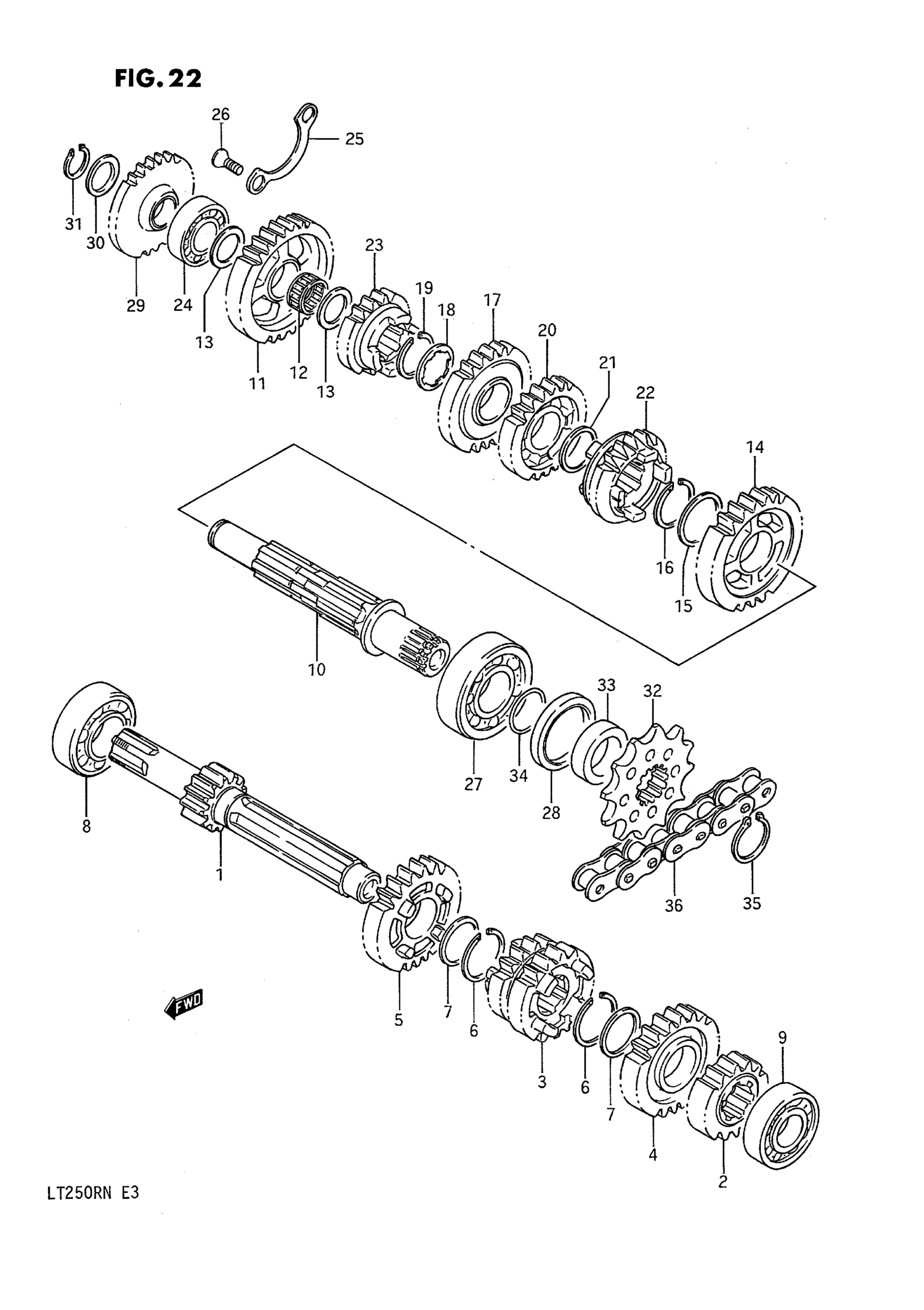

Suzuki LT250R (1992) TRANSMISSION (MODEL H/J/K/L/M/N) Diagram

#

Description
Price

1

COUNTERSHAFT (NT:13)

24121-01C00

Unavailable

2

GEAR, 2ND DRIVE (NT:14) | MODEL H/J/K/L/M This part replaces 24221-01C00.

24221-01C01

Unavailable

2

GEAR, 2ND DRIVE (NT:14) | MODEL N

24221-01C01

Unavailable

3

GEAR, 3RD/4TH DRIVE (NT:18)

24231-01C00

Unavailable

4

GEAR, 5TH DRIVE (NT:20)

24251-01C00

Unavailable

5

GEAR, 6TH DRIVE (NT:22)

24261-01C00

Unavailable

6

CIRCLIP

09380-22006

$3.10

7

SHIM This part replaces 08211-22261.

09181-22111

$3.75

8

BEARING, RH

09262-20073

$23.28

9

BEARING, LH

09262-17023

$16.75

10

DRIVESHAFT

24131-01C00

Unavailable

11

GEAR, 1ST DRIVEN (NT:31)

24311-01C00

Unavailable

12

BEARING (17X21X9.8)

09263-17004

$12.03

13

WASHER (17X26X1) This part replaces 08211-17261.

09181-17167

$2.96

14

GEAR, 2ND DRIVEN (NT:25) | MODEL H/J/K/L This part replaces 24321-01C00.

24321-01C01

Unavailable

14

GEAR, 2ND DRIVEN (NT:25) | MODEL M/N

24321-01C01

Unavailable

15

WASHER

08221-25325

$2.47

16

CIRCLIP

09380-25010

$2.91

17

GEAR, 3RD DRIVEN (NT:23) | MODEL H/J/K/L This part replaces 24331-01C00.

24331-01C01

Unavailable

17

GEAR, 3RD DRIVEN (NT:23) | MODEL M/N

24331-01C01

Unavailable

18

WASHER

09167-22013

Unavailable

19

CIRCLIP

09380-22006

$3.10

20

GEAR, 4TH DRIVEN (NT:21)

24341-01C00

Unavailable

21

SHIM This part replaces 08211-22261.

09181-22111

$3.75

22

GEAR, 5TH DRIVEN (NT:19)

24351-01C00

Unavailable

23

GEAR, 6TH DRIVEN (NT:18)

24361-01C00

Unavailable

24

BEARING, RH

09262-17023

$16.75

25

RETAINER

24751-40300

Unavailable

26

SCREW This part replaces 02122-06128.

02122-06127

$1.84

27

BEARING (22X56X16) This part replaces 09262-22014.

09262-22028

$77.48

28

OIL SEAL

09283-32003

$7.31

29

GEAR, KICK IDLE (NT:26) This part replaces 26260-41101.

26260-13A10

Unavailable

30

THRUST WASHER

08211-17241

$2.54

31

CIRCLIP

09380-17001

$1.98

32

SPROCKET, ENG 1 This part replaces 27511-19A00.

27511-19A01

$33.15

33

SPACER (22X32X9.5)

09180-22026

Unavailable

34

O RING (D:1.7,ID:22)

09280-22003

$1.72

35

CIRCLIP

09380-22012

$2.84

36

CHAIN ASSY, DRIVE (102LE)

27600-01C10-102

Unavailable
